Honda FOURTRAX - Rear Brake Pedal Freeplay; Tread Wear

Servicing Your Honda
171
Brakes
Inspection
Measure the distance the rear brake pedal (1) moves before the
brake starts to take hold. Freeplay, measurement at the tip of the
end of the pedal, should be:
15 – 20 mm (0.6 – 0.8 in)
If necessary, adjust to the specified range.

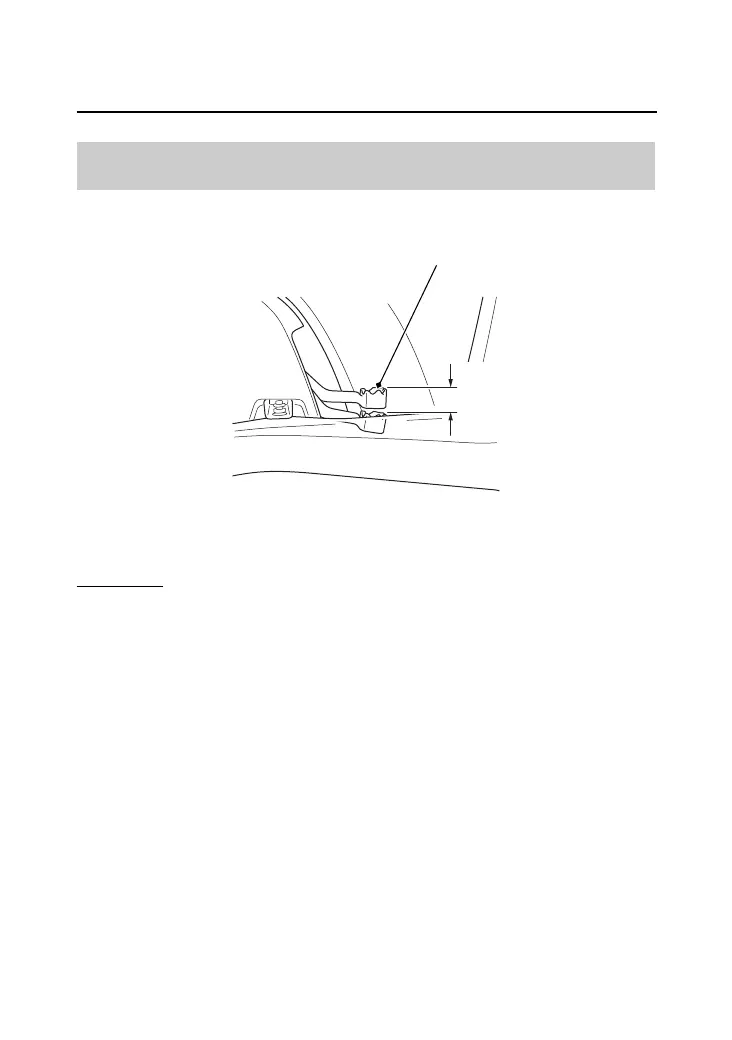

Rear Brake Pedal Freeplay
(1)
RIGHT SIDE
(1) rear brake pedal
15 – 20 mm
(0.6 – 0.8 in)
