Servicing Your Honda
172
Brakes
Adjustment
1.

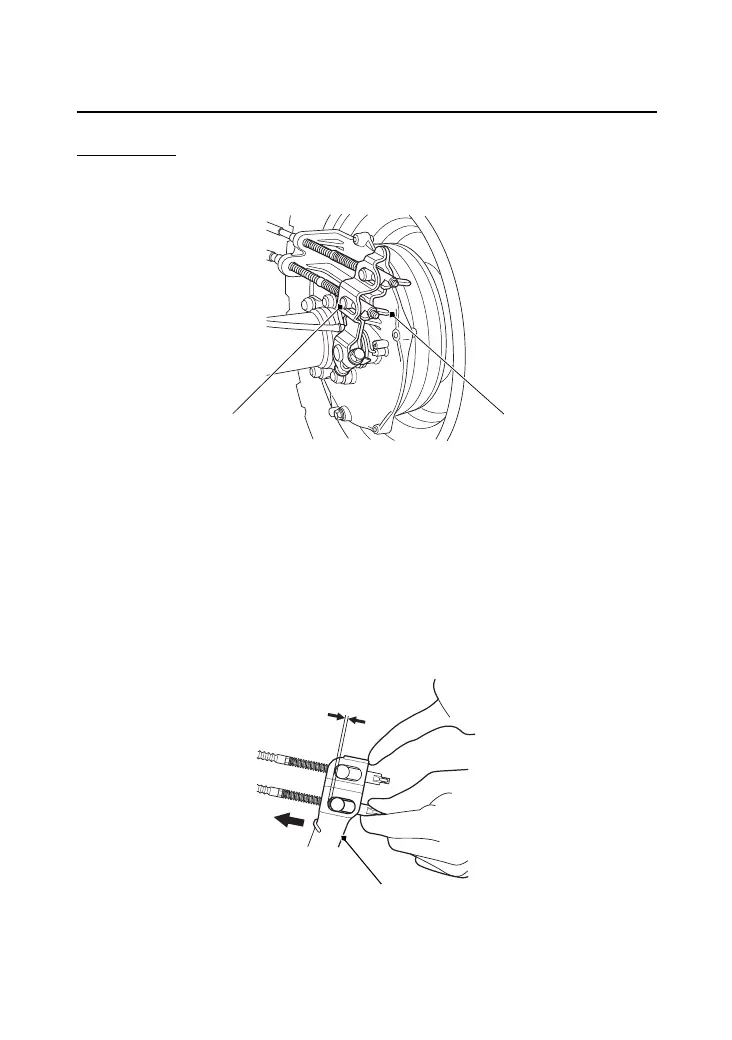

Turn the brake pedal adjusting nut (2), located on the brake
operating rod at the rear of the frame. Make sure the cutout on
the adjusting nut is properly seated on the brake arm pin (3).
2.
Adjust the freeplay of the rear brake pedal. Push the brake arm
(4), then check the clearance between the brake arm and the
brake arm pin.
(3)
RIGHT REAR
(2) brake pedal adjusting nut
(2)
(3) brake arm pin
19 TRX500FM1 FM2 (U)-32HR4A40.backup.book Page 172 Wednesday, April 18, 2018 3:36 PM
