Honda FOURTRAX - Brake Shoe Wear

Servicing Your Honda
175
Brakes
• Check that the rear brake lever/parking brake lever and brake
pedal assemblies are positioned properly and the securing bolts
are tight.
• Make sure that the brake cables, brake arm, spring, P/R lever and
fasteners are in good condition.
Refer to Safety Precautions on page 109.

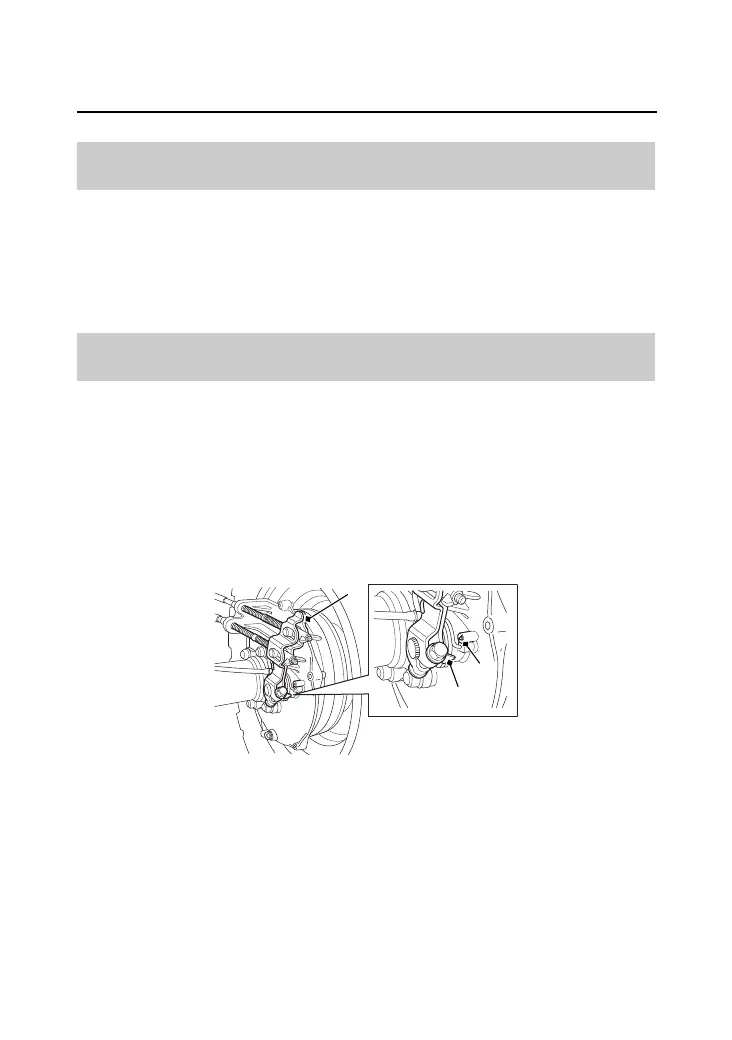

The rear brake is equipped with an external brake wear indicator
that lets you check brake wear without disassembly. Application of
the brake control causes the arrow on the brake arm to move
toward a reference mark on the brake panel.
1. Apply the brake control and check the movement of the arrow
(1) on the brake arm (2).
2. Replace the brake shoe if the arrow aligns with the reference
mark (3) on the brake panel upon full application of the brake. If
replacement is necessary, see your dealer.
Other Inspections
Brake Shoe Wear
RIGHT REAR
(2) brake arm
(3) reference mark(1) arrow
(3)
(1)
(2)
