Servicing Your Honda
176
Brakes
Refer to Safety Precautions on page 109.
Rear Brake Only:
Check the operation of the rear brake light switch (1) at the right
side behind the engine from time to time. Adjustment is done by
turning the adjusting nut (2). Turn the nut in direction (A) if the
switch operates too late and in direction (B) if the switch operates
too soon.

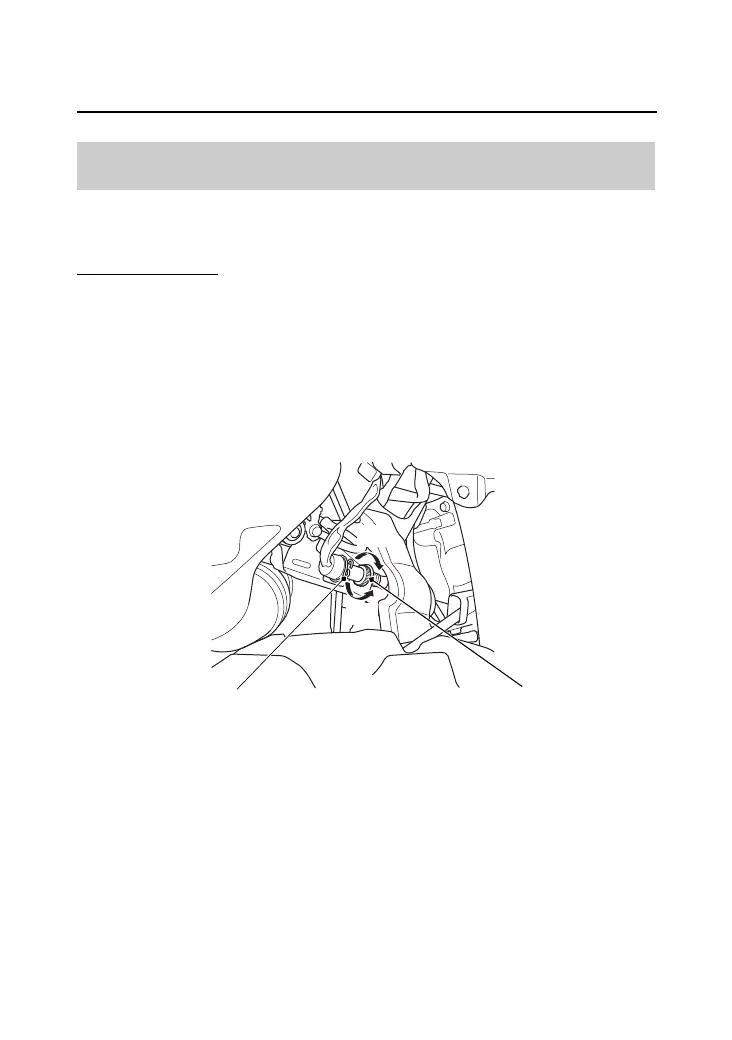

Brake Light Switch Adjustment
RIGHT SIDE
(1) (2)
(1) rear brake light switch (2) adjusting nut
(A)
(B)
