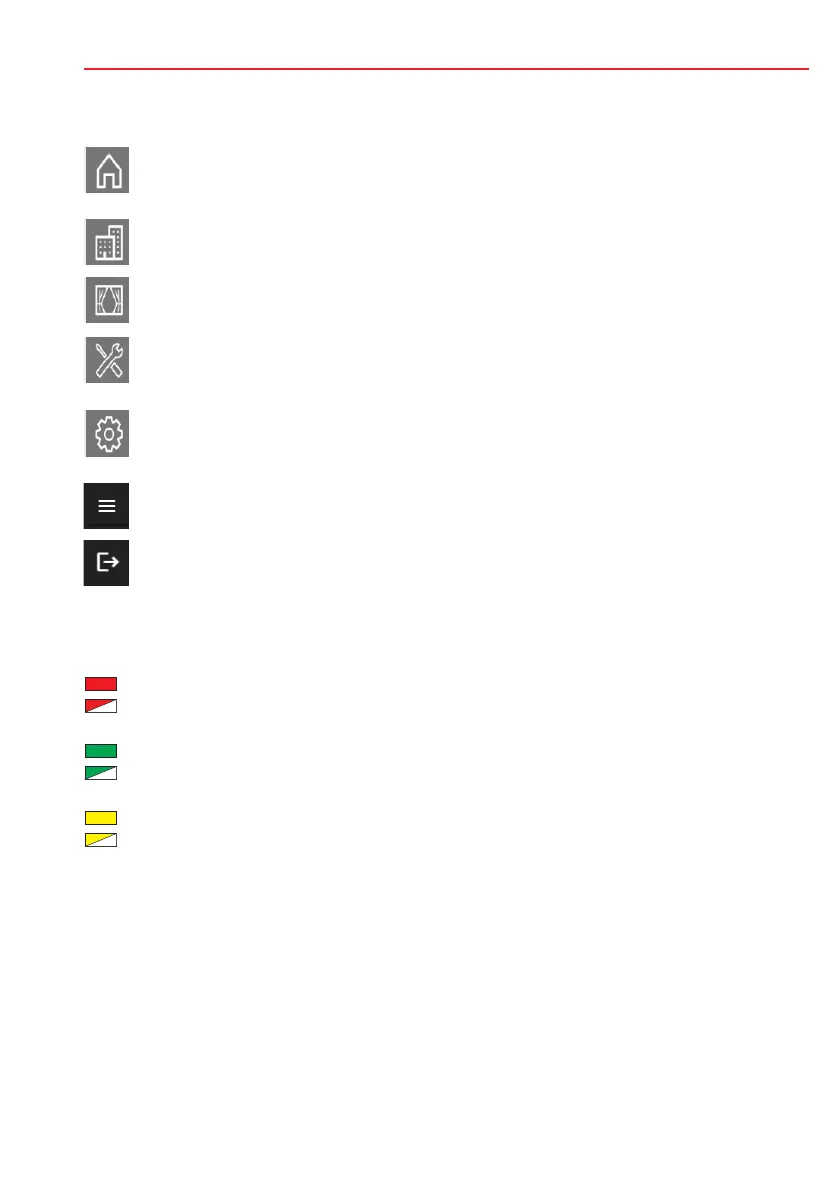

6.3 LED indicators and Buzzer function
LED red lights up: Intrusion alarm
LED red flashes: Tamper- or hold-up alarm
LED green lights up: Unit ready for operation
LED green flashes: Unit not ready for operation
LED yellow lights up: Gereral fault of central control panel
LED yellow flashes: Mains fault of central control panel
Buzzer active at: - when switch-on delay is active
(programmable) - reading an ID data carrier
- in case of internal alarm (time limited)
- in case of tamper alarm or fault until manually stopped
- when clearing (system reset), walk test on
- when touching the screen as acknowledgement signal
- with door interlock function when arming and disarming
- with reminder signal after alarm and external disarming
- in case of faults
- Additional functions programmable by installer
(output programming)
6.2 Operating menus
Set up (Details see Chapter 11)
Display brightness, display settings, set language, configure home screen,
System settings, date/time, etc..
Exit operation.
Security screen
Selection of an area, display and overview of alarms and faults.
Area view
Information and operations concerning the alarm partition. Arming and disarming,
viewing event logs, etc..
Automation
Starting executable macros.
Show / Hide information to the buttons.
Maintenance (Details see chapter 10)
Enable remote parameterisation, show maintenance date, show system
information.
