CHAPTER 2 - SYSTEM DESCRIPTION

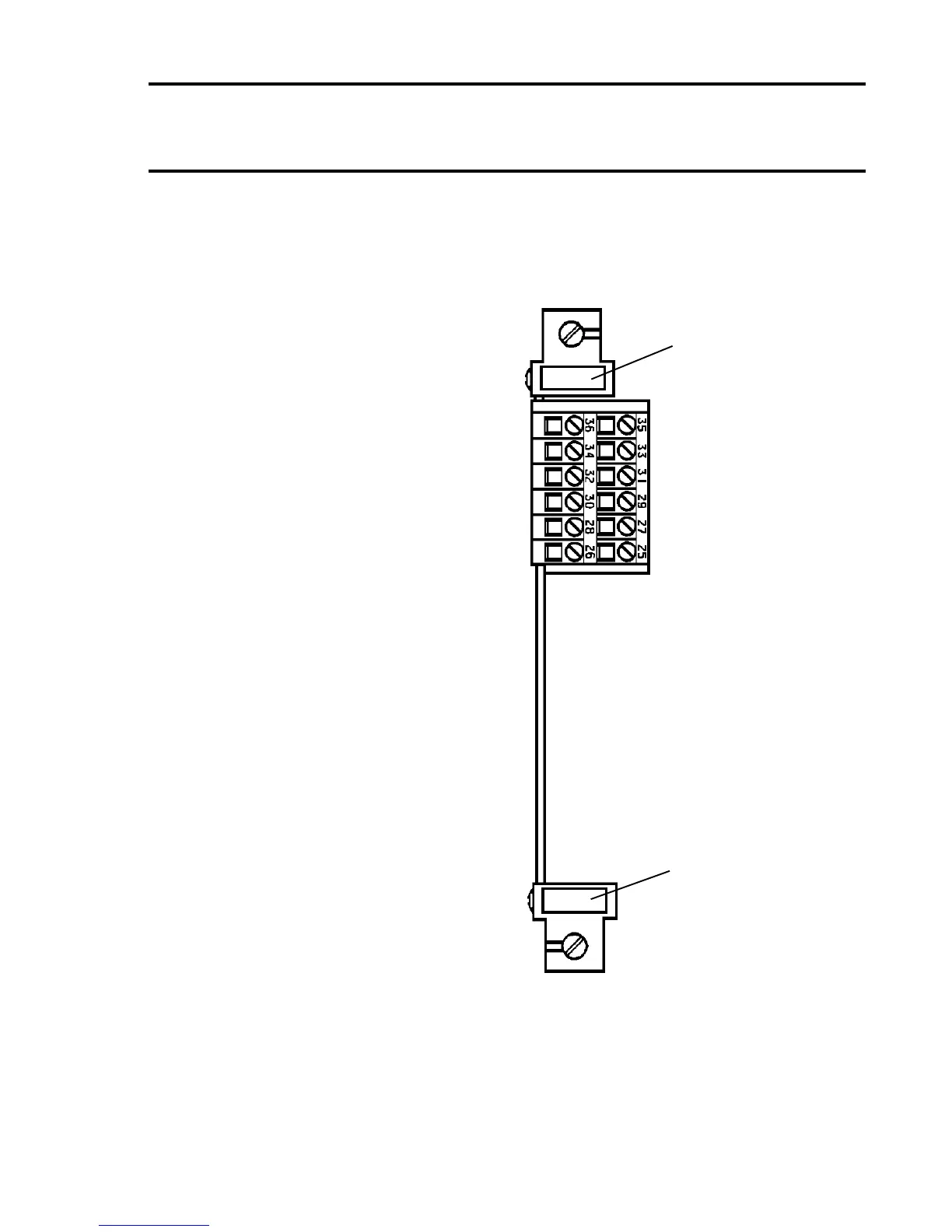

5.2.3 Front Access Connections
35 +24V (Out/In)
33 Remote Inhibit In
31 Analogue O/P (+)
29 Sensor NS Connection
27 Sensor S Connection
25 Ground
0V (Out/In) 36
Remote Reset In 34
Analogue O/P (-) 32
Not Connected 30
Sensor 01 Connection 28
Ground 26
Slot
Location
User
Terminal
Reference
