14 - 3

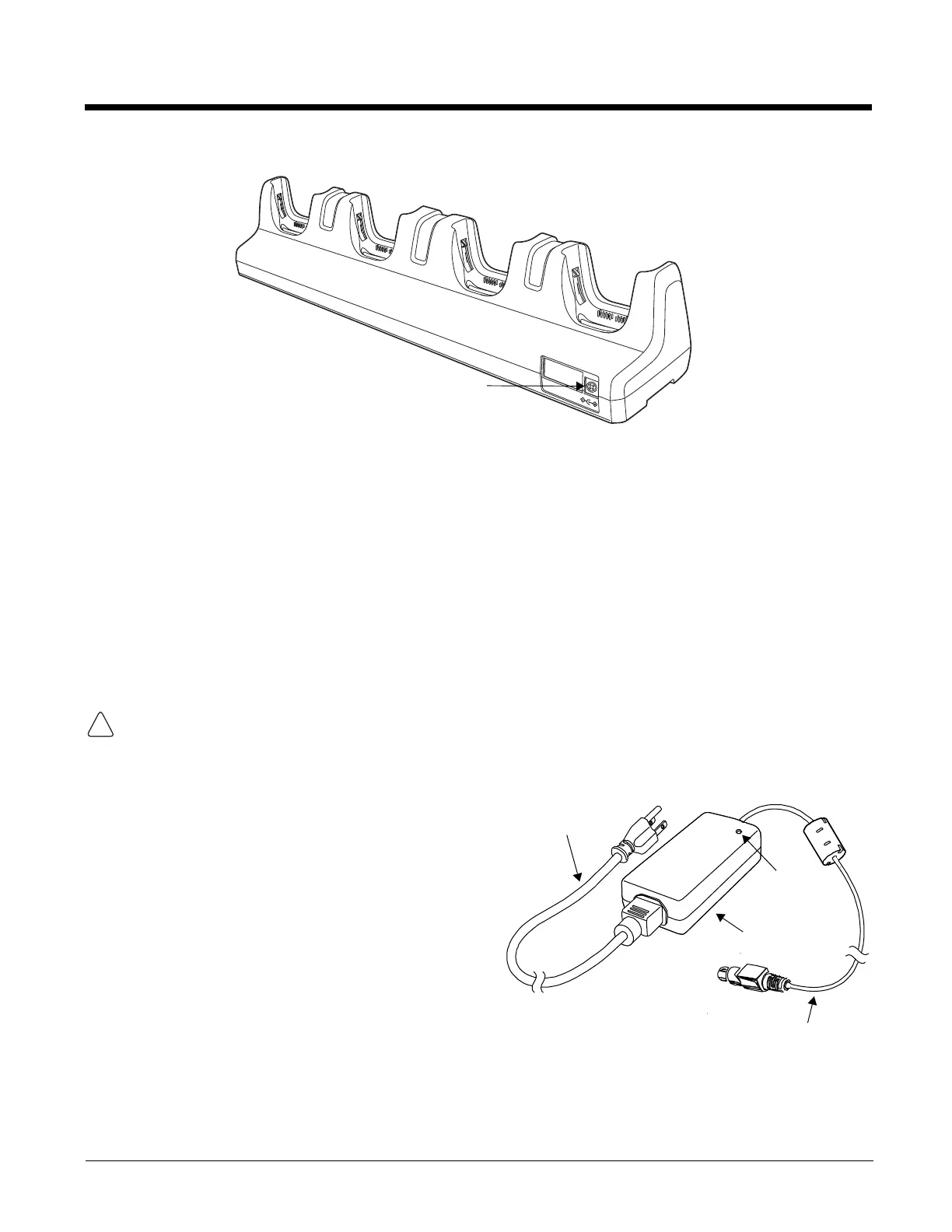

Back Panel
Power Supply Connector
This connector receives input from the power adapter. Plug the power connector cable from
the power adapter into this connector.
Power
The terminal requires 12 Volts DC input for battery charging; the power adapter on the power cable con-
verts the voltage from the power source to 12 volts DC. Use only UL Listed power supply, which has
been qualified by Honeywell with output rated 12VDC and 8.5 amps with the device. The operating tem-
perature range is -10° to 50°C (14° to 122°F).
Honeywell recommends that you leave the ChargeBase connected to its power source at all times, so
that it is always ready to use.
We recommend use of Honeywell peripherals, power cables, and power adapters. Use of any non-Honeywell
peripherals, cables, or power adapters may cause damage not covered by the warranty.
Connecting Power to the ChargeBase
1. Plug the A/C power cord into the power adapter.
2. Plug the power connector cable into the power
connector on the back panel of the ChargeBase.
3. Plug the A/C power cord into a standard wall
outlet. The LED on the Power Adapter
illuminates to indicate power.
4. All of the Power/Dock LEDs illuminate red to
indicate the base has power. Terminal wells with
properly docked Dolphins indicate power with a
green LED.
5. The base is ready to begin charging terminals.
Power Adapter
Power Connector Cable
A/C Power Cord
LED
To Next Page
