16 - 2
Parts and Functions

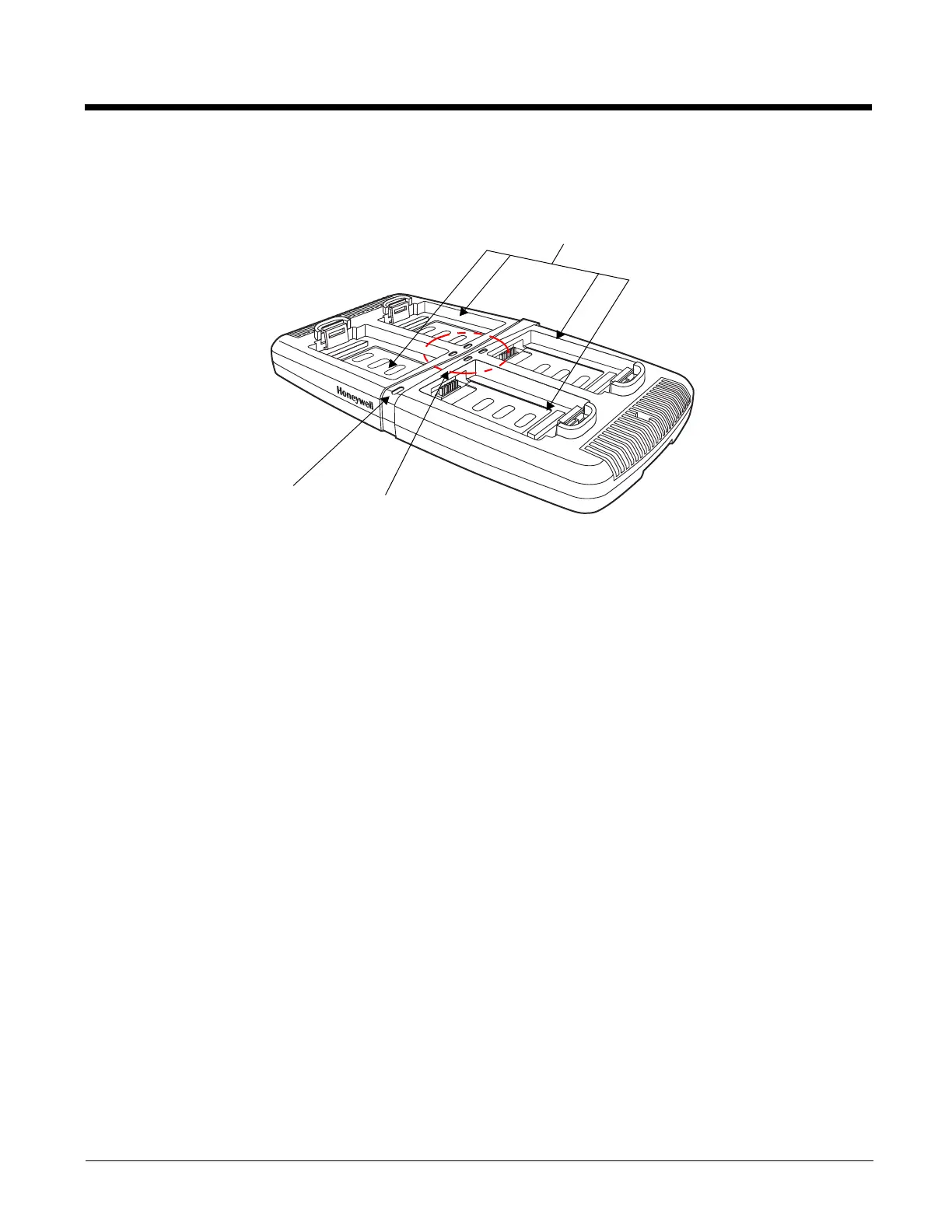

Top Panel
Charging Slots
There are 4 charging slots. Each slot holds one Li-ion or Li-poly battery and charges it
independently of the other slots. When a battery is placed in each slot, it immediately begins
charging.
Power LED
The power LED indicates if the QuadCharger is powered and operational. When the
QuadCharger is receiving power, the LED illuminates green.
Power Supply Connector
You attach the power supply to this connector. See Supplying Power on page 16-3.
Status LEDs
A status LED is located at one corner of each of the 4 battery slots. The color of the LED
indicates the charge status of the batteries in its slot.
Color This color indicates that the battery in the slot…
Green (Solid) Has completed its charge cycle and is ready for use.
Orange (Solid) Is being charged at a maximum charge rate.
Red (Flashing) The internal temperature of the auxiliary battery is too hot or there
is a battery error. Charge the auxiliary battery in a cooler
environment or replace the battery with a new Honeywell Li-ion or
Li-poly battery.
For more information,
see Troubleshooting on page 16-5.
Charging Slots (4)
Status LEDs
One Per Charging Slot
Power LED
