16 - 4
Mounting the QuadCharger
The charger should be on a dry, stable surface and can be mounted on a flat, horizontal surface such as
a desktop or workbench. When choosing a location, always bear in mind that:
• the mounting location must allow users easy access to the power connector.
• the charger should be oriented so that users can easily insert and remove battery packs and see the
LEDs.

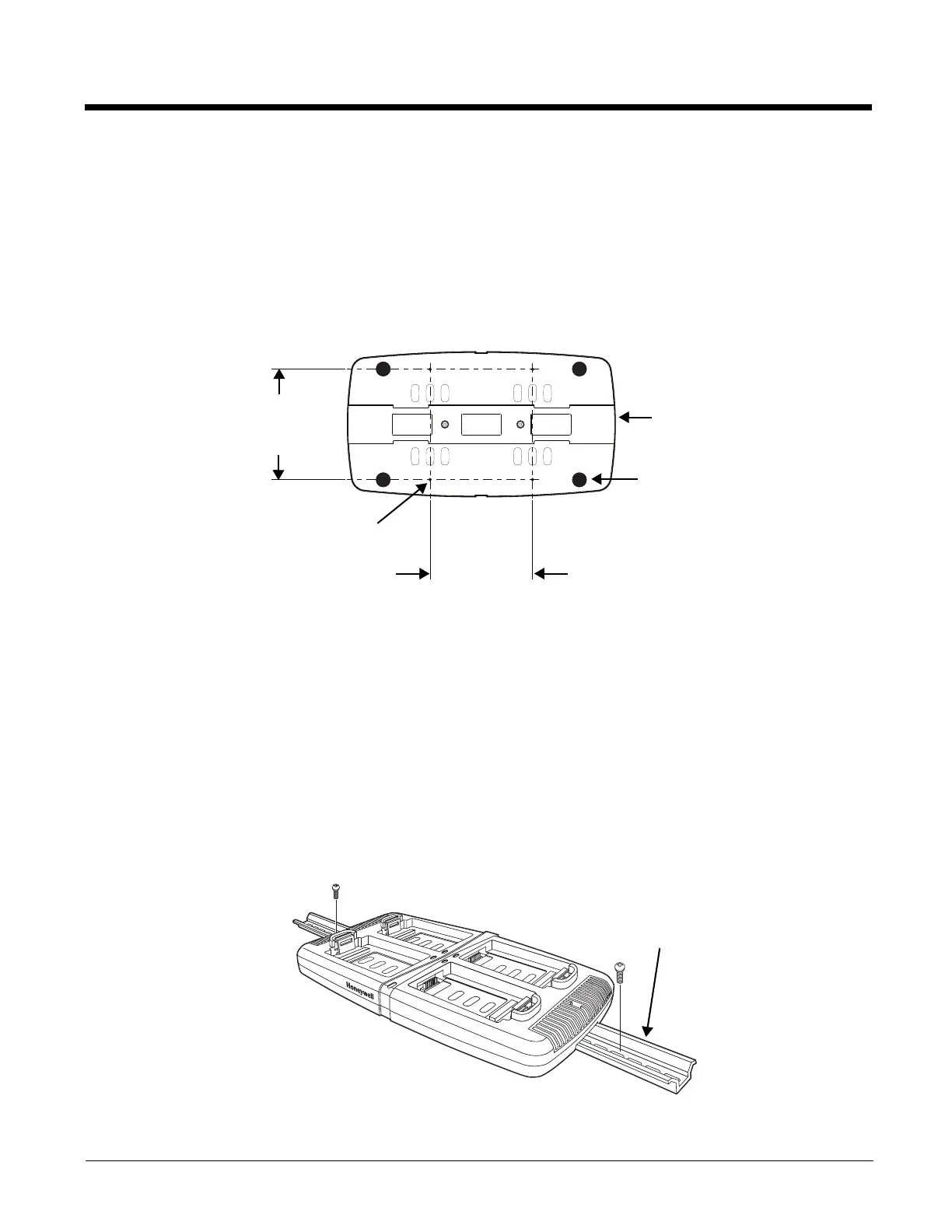

Bottom Panel
Desk Mounting
The DIN rail slot on the bottom panel enables secure mounting to a horizontal surface.
Hardware Required
• 3/16 in. dia x 5/8 in. long pan head screw
• 1/2 in. OD x 7/32 in. ID x 3/64 in. thick washer
• 3/16 in. dia nut
Installing the DIN Rail
1. Slide the DIN rail into the DIN rail slot (7.5 X 35 mm) on the bottom of the QuadCharger.
2. Then, using the appropriate hardware listed above, secure the DIN rail to the desktop.
DIN Rail Slot
Rubber Feet,
Qty. 4
3.94 in.
[10 cm]
3.66 in.
[9.3 cm]
Optional Mounting Holes
for M3 Self-Tapping
Screws, Qty. 4
