Honeywell E3Point E3DA User Manual

E
3
Point Gas Monitor Technical Manual

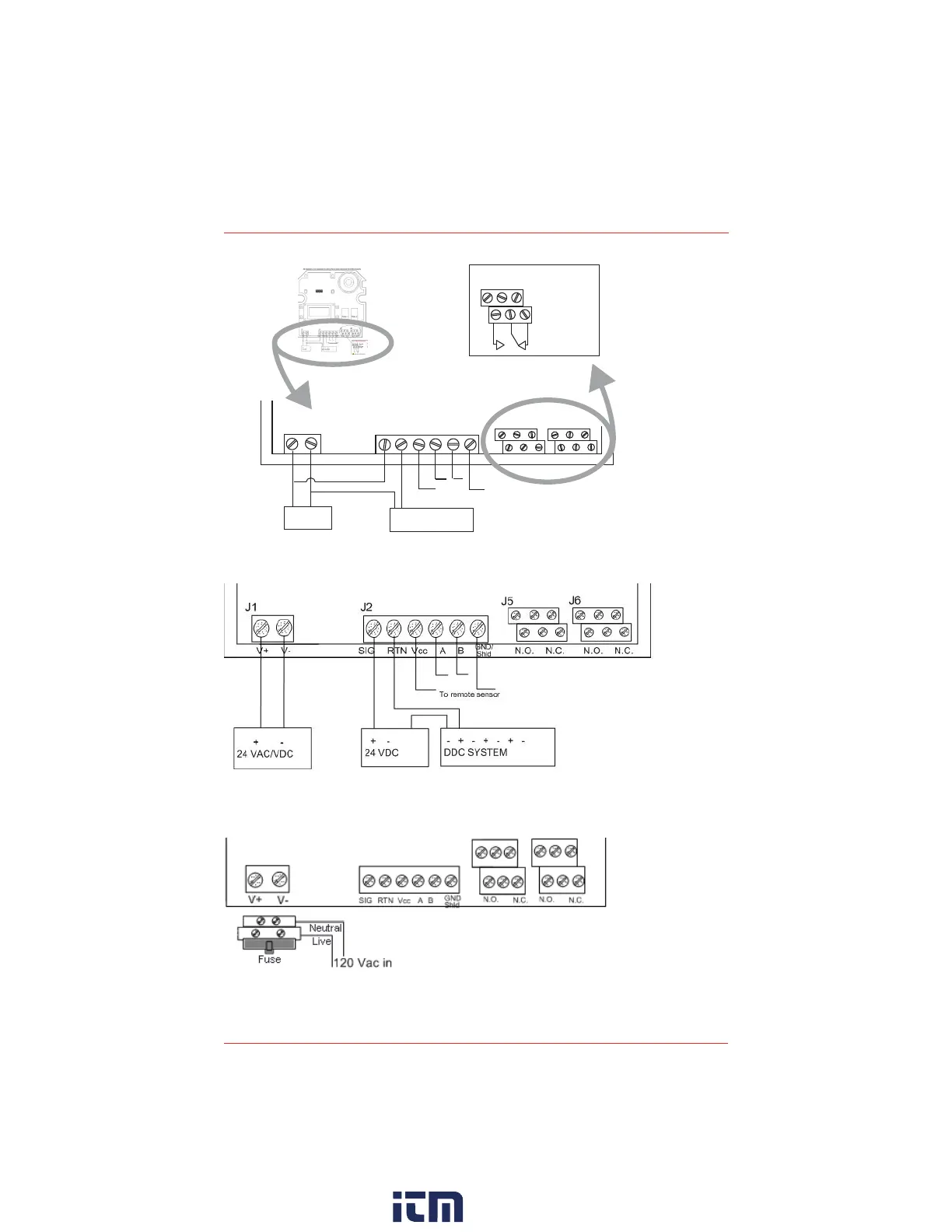

Wiring
11
3-Wire Current Sink Output (DC supply only)
Normally
open
Normally
closed
6
4
2
5
3
1
3+5
4+6
1+3
2+4
J5, J6 RELAY OUTPUTS
J1
J5
V+ V-
SIG
RTN
Vcc
A
B
To remote sensor
24 VDC
+
-
- + - + - + -
DDC SYSTEM
J6
GND/
Shld
N.O. N.C. N.O. N.C.
J2
4-wire Current Sink Output
120 VAC Connection (model E3SAH only)
w ww . . co m
information@itm.com1.800.561.8187

Honeywell E3Point E3DA Specifications

General

Model	E3Point E3DA
Operating Temperature	-20°C to 50°C (-4°F to 122°F)
Display	LCD with backlight
Detection Method	Electrochemical
Gases Detected	Oxygen, Carbon Monoxide
Power Supply	24 VDC / VAC
Output	4-20 mA, Modbus RTU
Alarms	Visual and Audible
Enclosure	IP66
Certifications	UL, CSA, CE
Relays	3 relays
