Honeywell Eclipse MS5145

32

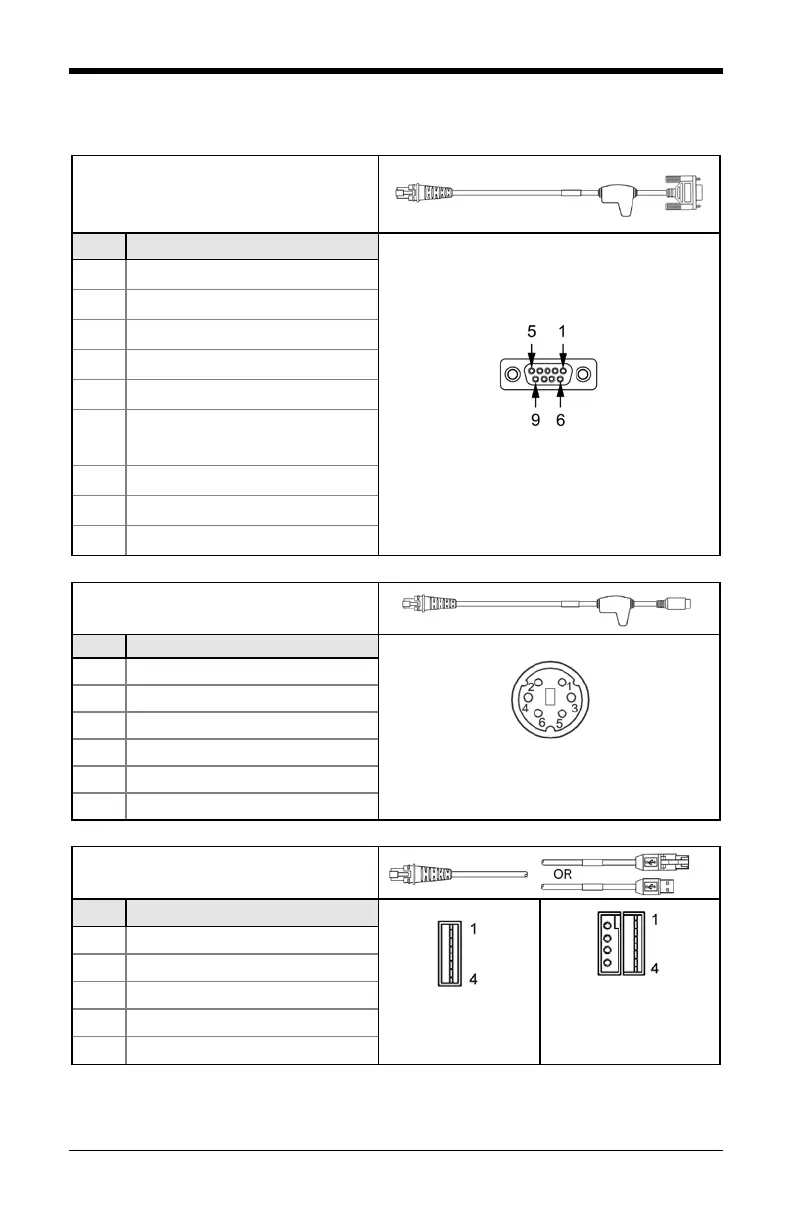

Cable Connector Configurations
RS232 PowerLink Cable,
55-55000
x -3
Pin
Function
9-Pin D-Type Connector
1 Shield Ground
2 RS232 Transmit Output
3 RS232 Receive Input
4 DTR Input
5 Power/Signal Ground
6
Data
(DSR Out for -14 interfaces)
7 CTS Input
8 RTS Output
9 +5VDC
Stand Alone Keyboard
PowerLink Cable, 55-55020x-3
Pin
Function
6-Pin Male Mini-DIN Connector
1
PC Data
2
NC
3
Power Ground
4
+5VDC PC Power to KB
5
PC Clock
6
NC
USB Communication
55-55235
x -N-3 or 55-55200 x -N-3
Pin
Function
Non-Locking, Type A
mlpn 54-54214
x -N-3
Locking, Type A
mlpn 54-54213 x -N-3 or
mlpn 54-54214
x -N-3
1
PC +5V/V_USB
2
D-
3
D+
4
Ground
Shield
Shield
