Honeywell ESSER FACP User Manual

Periphery components for ESSER FACP
TI 798960.GB0 / 04.20 33
133
133
36
B
A
92
126
17
126
92
17
05

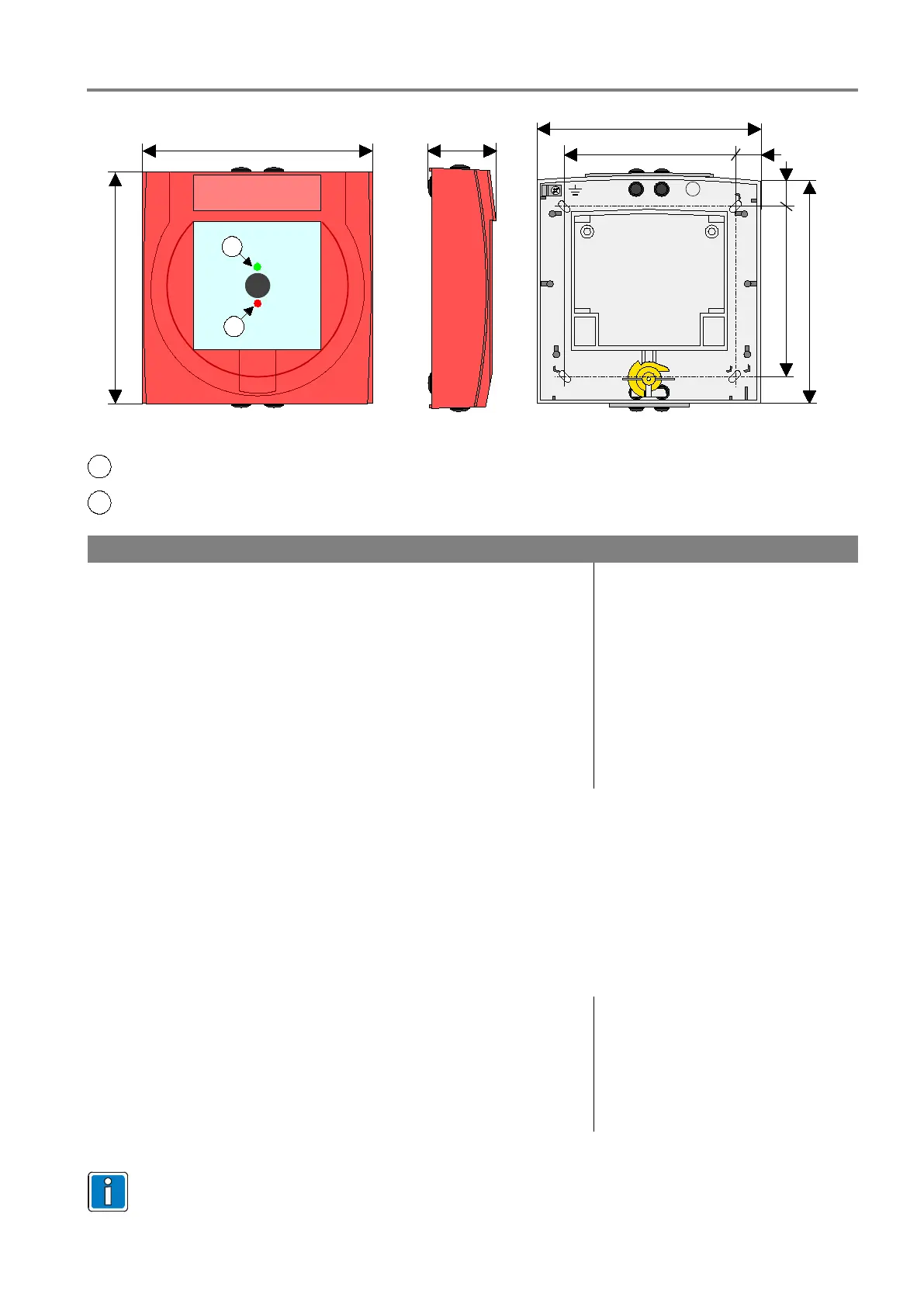

Fig. 19: Dimensions
A
Operation mode - LED, green flashes (only IQ8MCP)
B
Alarm mode - LED, red flashes
Specifications
*3
Standard IQ8
Operating voltage : 8 V DC ... 30 V DC 8 V DC ... 42 V DC
Quiescent current : --- approx. 45 µA @ 19 V DC
Alarm current : approx. 9 mA @ 9 V DC approx. 9 mA@ 19 V DC
Contact rating S2 : max. 30 V DC / 1 A ---
Number of detector / zone :
10 detectors per zone
(VdS approved)
max. 127 detectors per loop/
10 detectors per zone
(VdS approved)
Operating display : --- LED 1, green flashing
Alarm display : LED, red lits LED, red flashing
Connection terminals : max. 2.5 mm² (AWG 26-14)
Usage temperature : -40 °C ... +70 °C
Storage temperature : -40 °C ... +75 °C
IP rating:
:
:
IP 44 (in housing)
IP 55 (with option)
Housing : PC ASA plastic
Weight : approx. 236 g (with housing)
Housing dimensions (W x H x D) : 133 x 133 x 36 (mm)
Specification :
EN 54-11 : 2001, type B
(only manual call point)
EN 54-11 : 2001 /-17 : 2005, type B
(only manual call point)
VdS approval : G 205001 G 205002
Declaration of performance :
DoP-20482130701,
DoP-20194130701,
DoP-20195130701
DoP-20488130701,
DoP-20489130701
*3
The information applies for the entire series incl. .MAR, .N0, .NU etc.
For further information refer to product catalogue.
