Periphery components for ESSER FACP
TI 798960.GB0 / 04.20 85
12.7 esserbus
®
transponder IQ8FCT XS (Part No. 808606)
The IQ8FCT XS can be used as a fire control transponder (FCT) for controlling and monitoring fire protection
equipment* such as fire dampers, as well as a technical alarm module (TAL) for monitoring an external switching
contact. The transponder is a loop device and therefore has an integrated loop isolator, a contact input and a
potential-free relay output. For external indication, a parallel detector indicator (Part No. 781804, 781814 or
801824) can be connected (max. loop length 100 m). The transponder does not require a separate power supply.
To monitor the contact, the alarm and monitoring module (Part No. 804870) or an external resistance combination
can be used. The max. loop length to the contact is 500 m.
* Observe the local and regional requirements/regulations for the activation of fire protection equipment.
Features
• Max. 127 transponders per ring loop
• One contact input and one potential-free relay output
• Connection for a parallel detector indicator
• Power supply via fieldbus
• Programmable impulse control of the relay output
• Programmable runtime monitoring for activation of fire dampers
• Programmable relay output NO/NC
• Programmable impulse length for relay activation
(for time-limited activation)
• Feedback input for monitoring fire control systems
• Integrated loop isolator
• Pluggable connecting terminals
• Installation on top-hat rails or in surface mount housing
(Part No. M200SMB/SMB6-V0)

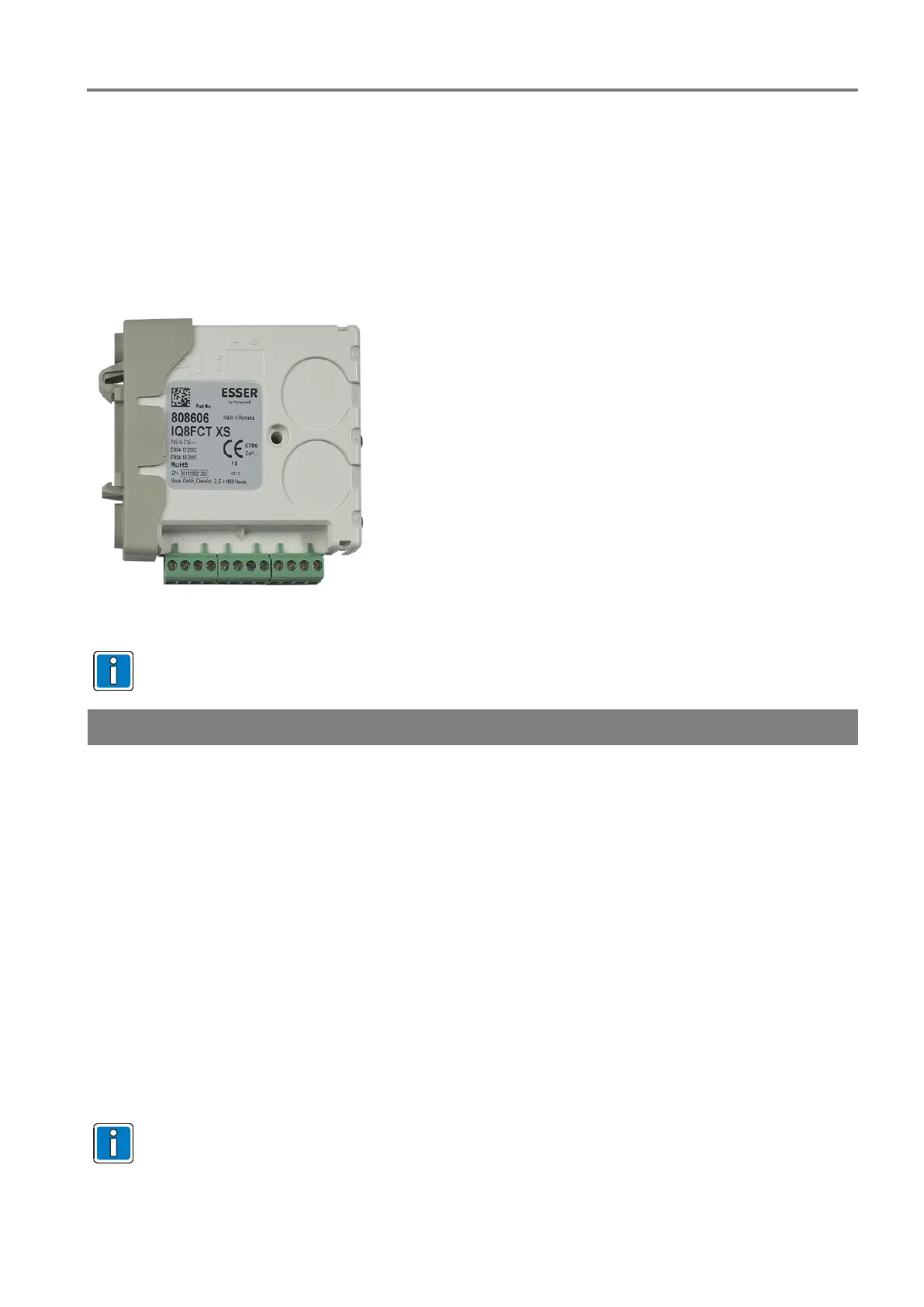

Fig. 53: esserbus
®
transponder IQ8FCT XS
In order to control the fire protection device in compliance with the relevant standards, the IQ8FCT
should be installed right next to or inside the control device.
Specifications
Loop
- Nominal voltage
:
14 V DC … 42 V DC
- Quiescent current
:
approx. 45 µA @ 19 V DC
- Alarm current
:
approx. 9 mA @ 19 V DC, pulsed
Number
:
max. 127 piece per loop
Alarm indicator
:
red LED
Operation indicator
:
green LED
Connection terminals
:
max. 2,5 mm² (AWG 26-14)
Application temperature
:
-20 °C … +70 °C
Storage temperature
:
-30 °C … +75 °C
Humidity
:
≤ 95 % rel. humidity (non-condensing)
Protection rating
:
IP 30 / IP 50 (with M200E-SMB-KO)
Housing
:
PC/ASA plastic
Colour
:
grey (similar RAL 7035)
Weight
:
approx. 90 g
Dimensions (w x h x d)
- IQ8FCT XS
:
90 x 93 x 23 (mm)
- M200SMB
:
144 x 134 x 50 (mm)
Specification
:
EN 54-17 : 2005 / -18 : 2005
VdS approval
:
G 209138
Declaration of Performance
:
DoP-20792130701
For further information and accessories refer to product catalogue and documentation of the devices.
