12.9 Technical Alarm Module IQ8TAL (Part No. 804868)
The technical alarm module is a loop device that enables technical alarms to be detected and forwarded.
The IQ8TAL is equipped with an integrated loop isolator, a contact input and a relay output. The integrated relay
can be optionally configured as a normally-closed contact or as a normally-open contact. The IQ8TAL does not
need a separate voltage supply.
In order to increase the IP protection class, the optional IP 55 protection kit (Part No. 704965) can be used. The
functionality of the IQ8TAL can be tested with the included key and the alarm status can be reset directly at the
device.
Features
• One contact input and one floating relay output
• Power supply via fieldbus
• Test and reset function
• Optional higher IP55 protection
• Programmable inverse monitoring functionality of the contact input
(1 kOhm quiescent / 10 kOhm fire)
• Integrated loop isolator
• Up to 127 IQ8TAL per loop

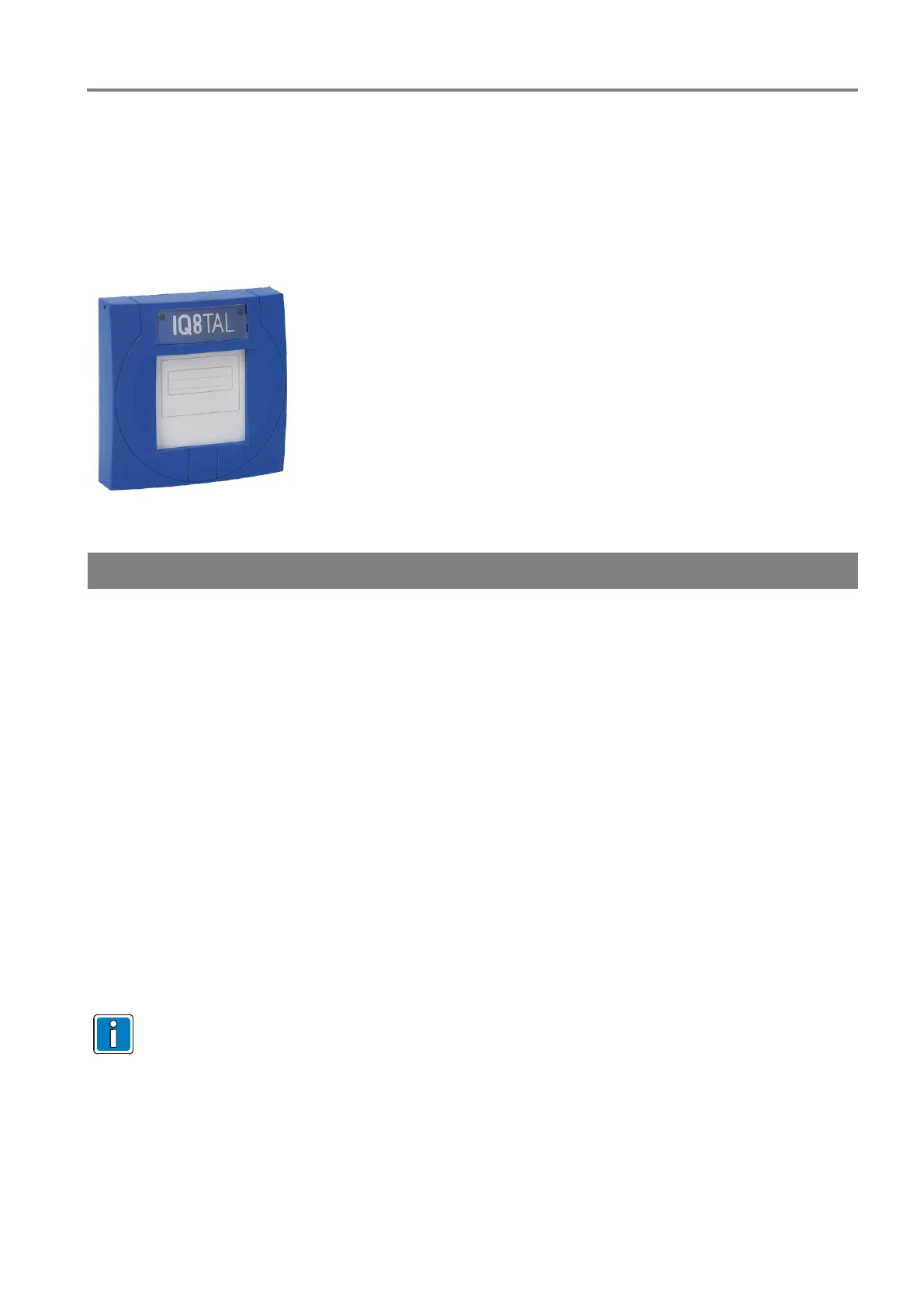

Fig. 55: IQ8TAL Technical Alarm Module
Specifications
Power supply
:
8 V DC … 42 V DC
Quiescent current
:
approx. 45 µA @ 19 V DC
Alarm current
:
approx. 9 mA @ 19 V DC, pulsed
No. of call points
:
max. 127 TAL per loop
Alarm indicator
:
red LED
Operation indicator
:
green LED
Connection terminals
:
max. 1,5 mm² (AWG 30-14)
Application temperature
:
-20 °C … +70 °C
Storage temperature
:
-30 °C … +75 °C
Protection rating
:
IP 43 (in housing)
:
IP 55 (with option 704965)
Housing
:
PC/ASA plastic
Colour
:
blue (similar RAL 5015)
Weight
:
approx. 110 g
Housing dimensions (w x h x d)
:
88 x 88 x 27 (mm)
Dimensions with back box
:
88 x 88 x 63 (mm)
Specification
:
EN 54-17 : 2005 / -18 : 2005
VdS approval
:
G 209138
Declaration of Performance
:
DoP-20792130701
For further information and accessories refer to product catalogue and documentation of the devices.
