Periphery components for ESSER FACP
TI 798960.GB0 / 04.20 35
126
126
42

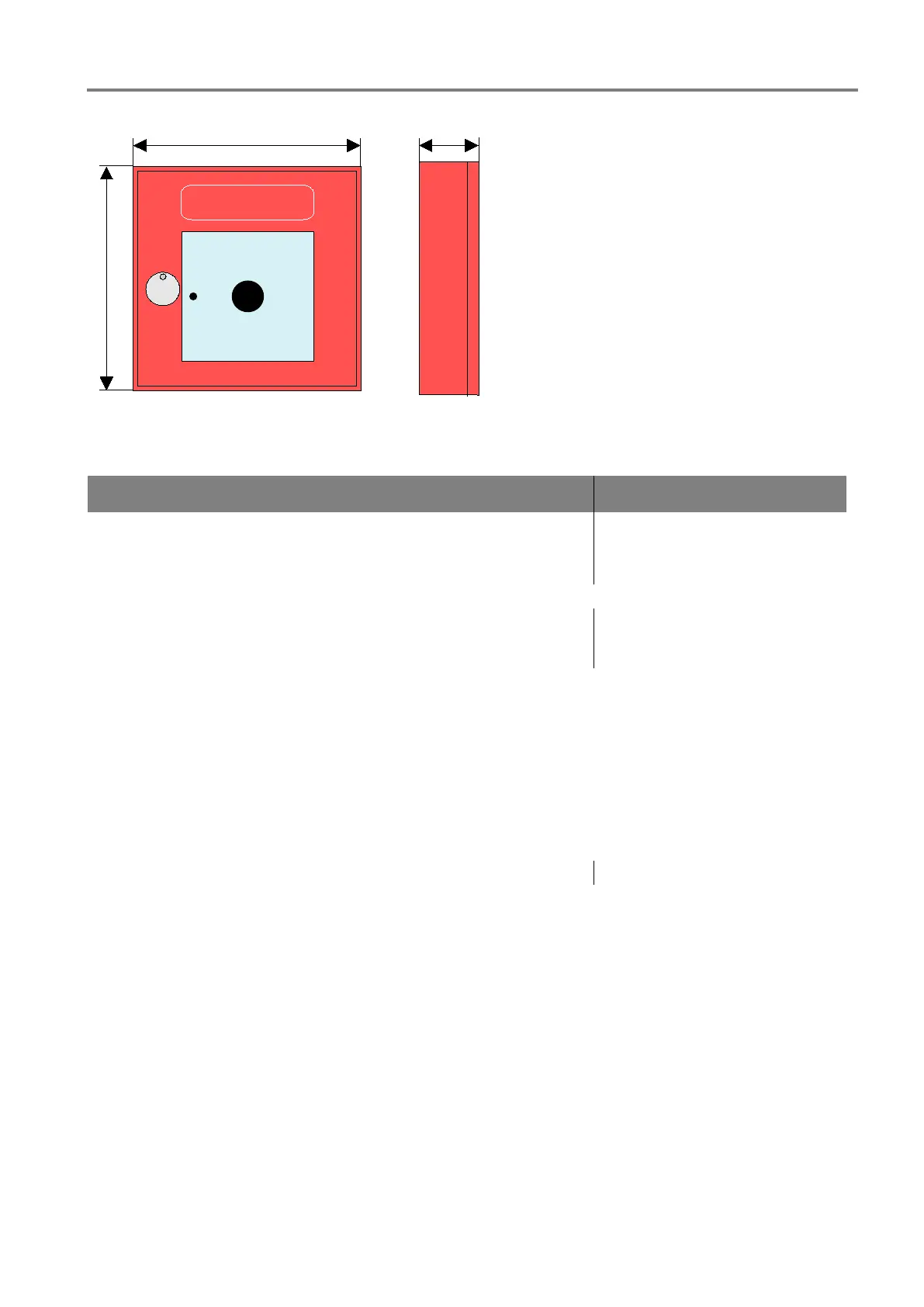

Fig. 21: Dimensions
Specifications 704477.10 804473.10
Operating voltage : 8 ... 30 V DC 8 ... 42 V DC
Quiescent current
:
---
approx. 45 μA @ 19 V DC
Alarm current : typ. 9 mA @ 9 V DC typ. 9 mA @ 19 V DC
Contact load
:
30 V DC / 1 A
No. of detector / zone :
10 detectors per zone
(according to VdS)
max. 127 detectors per loop /
10 detectors per zone
(according to VdS)
Alarm display
:
LED, red
Connection terminal : max. 1.5 mm²
Application temperature
:
-40 °C ... +70 °C
Storage temperature : -40 °C ... +75 °C
IP rating
:
IP 43 (IP 54 with optional 704070)
Housing : aluminium, die-cast
Weight
:
approx. 600 g
Dimensions Housing (W x H x D) : 126 x 126 x 42 (mm)
Declaration of Performance
:
DoP-20478130701
DoP-20481130701
