Periphery components for ESSER FACP
38 TI 798960.GB0 / 04.20
88
88
21
A
B
C
28
A
Alarm mode - LED, rot
B
Mechanical alarm mode, yellow flag
C
Operation mode – LED, green only IQ8MCP)
36
THIS WAY UP
50
88
88
43,5
18,5

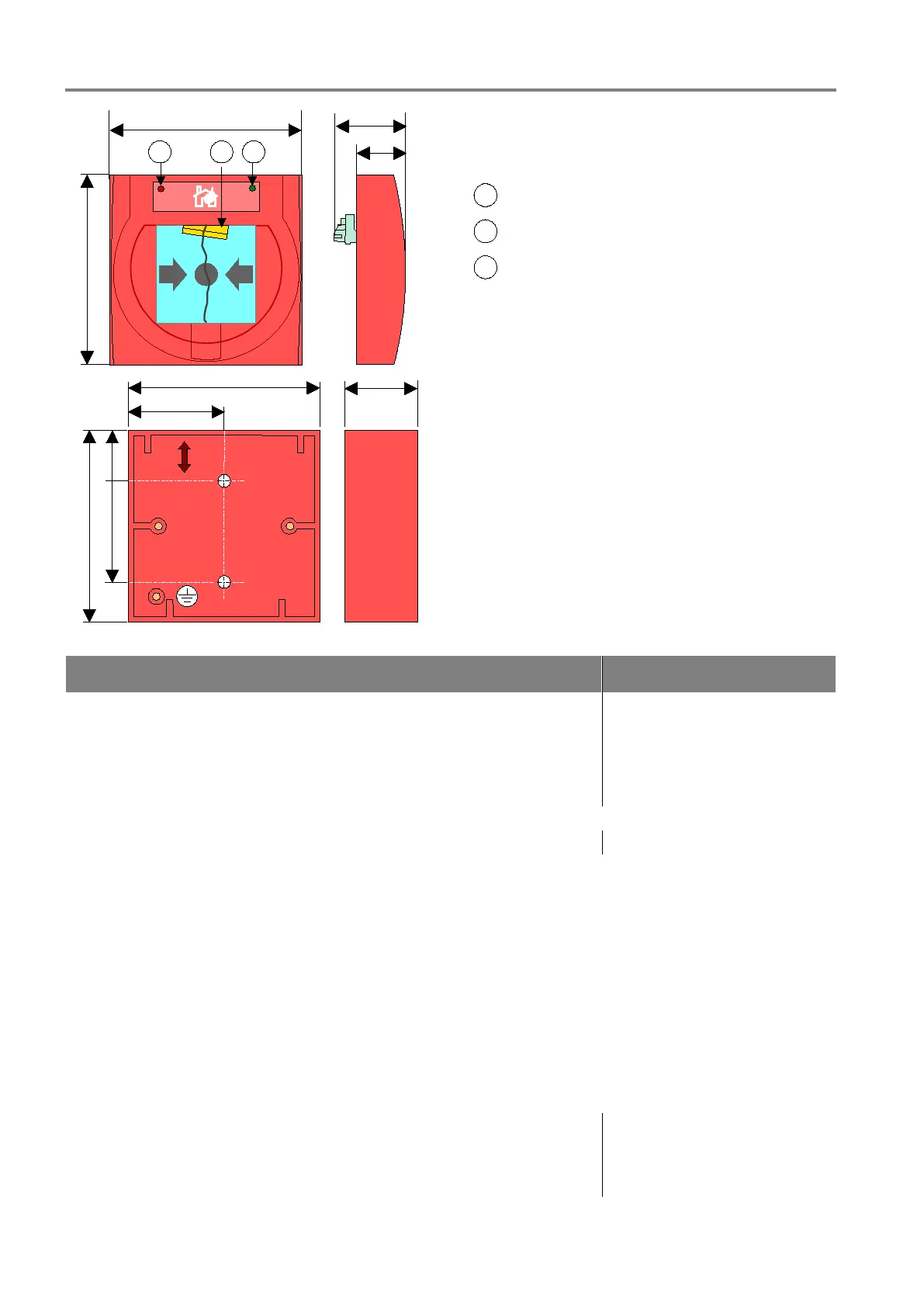

Surface-mount housing (Part No. 70498x)
Fig. 24: Dimensions
Specifications
*3
Standard IQ8
Operating voltage : 8 V DC ... 30 V DC 8 DC ... 42 V DC
Quiescent current
:
---
approx. 45 µA @ 19 V DC
Alarm current : approx. 9 mA @ 9 V DC approx. 9 mA @ 19 V DC
Number of detectors :
10 detectors per zone
(according to VdS)
max. 127 detectors per loop
(according to VdS)
Alarm display
:
red LED / yellow flag
Operating display : --- green LED
Connection terminals
:
max. 1,5 mm² (AWG 30-14)
Usage temperature : -40 °C ... +70 °C
Storage temperature
:
-40 °C ... +75 °C
IP rating : IP 43 (in housing)
IP 55 (with option)
IP 66 / IP 67 (only 804960 and 804961)
Housing
:
PC ASA plastic
Weight : approx. 110 g
Housing dimensions (W x H x D)
:
88 x 88 x 21 (mm)
Dimensions incl. mounting housing : 88 x 88 x 57 (mm)
Specification
:
EN 54-11:2001 / A1:2005, type A
VdS approval : G 205131 G 205132
Declaration of Performance
:
DoP-20486130701,
DoP-20485130701
DoP-20492130701,
DoP-20491130701,
DoP-20882130701
*3
The information applies for the entire series incl. .MAR, .N0, .NU etc.
