Periphery components for ESSER FACP
TI 798960.GB0 / 04.20 69
In order to keep the total number of control zone numbers in complex security areas to a minimum, they can be
aggregated into a single one. Observe that the same type of alarm devices may be aggregated in this way.
In this way it is possible to activate all integrated audible and optical alarm devices with just one control zone
number.
Up to 32 control zones can be aggregated into one single control zone for multiple use. Control zones of the
esserbus
®
transponder cannot be aggregated into one zone.
esserbus
®
PLus
601 / 2
601 / 3
601 / 4
602 / 4
602 / 3
602 / 2
602 / 1
601 / 1
St.-Grp.: 607 - audible alarm device
St.-Grp.: 608 - optial alarm device
FACP
603 / 1
603 / 2
603 / 3
603 / 4
604 / 1
604 / 2

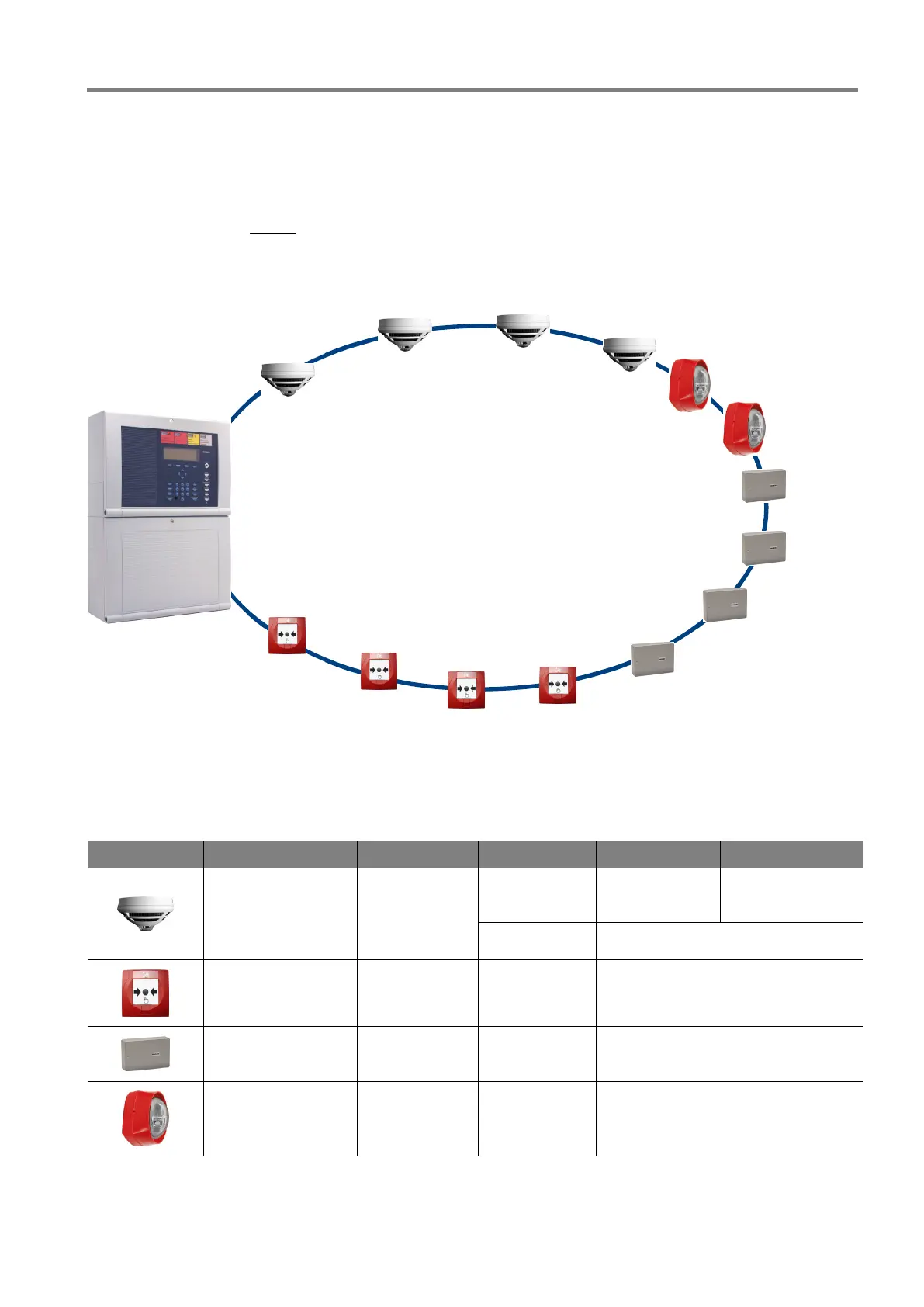

Fig. 44: Example control zones
Device Description Detector zone Detector no. Control zone Alarm device
IQ8Quad fire
detector with alarm
device
601
1
607
608
audible
visual
2 ... 4 ---
IQ8Quad
MCP
602 1 ... 4 ---
esserbus
®
transponder
603 1 ... 4 ---
IQ8 Alarm Plus 604 1 … 2 ---
