Vertical Mounting
IMPROPER INSTALLATION OF FF-SB SERIES LIGHT CURTAIN
• Mount FF-SB Series light curtains so that any entry into protected area must interrupt sensing field or other
safeguarding devices.
• Install mechanical guards or additional FF-SB light curtains to prevent operating personnel from reaching
around, under, or over sensing field.
Failure to comply with these instructions could result in death or serious injury.
Vertical mounting may require the installation of mechanical guards or additional light curtains to prevent
operating personnel from reaching around, under, or over the sensing field (see figure 2-6).

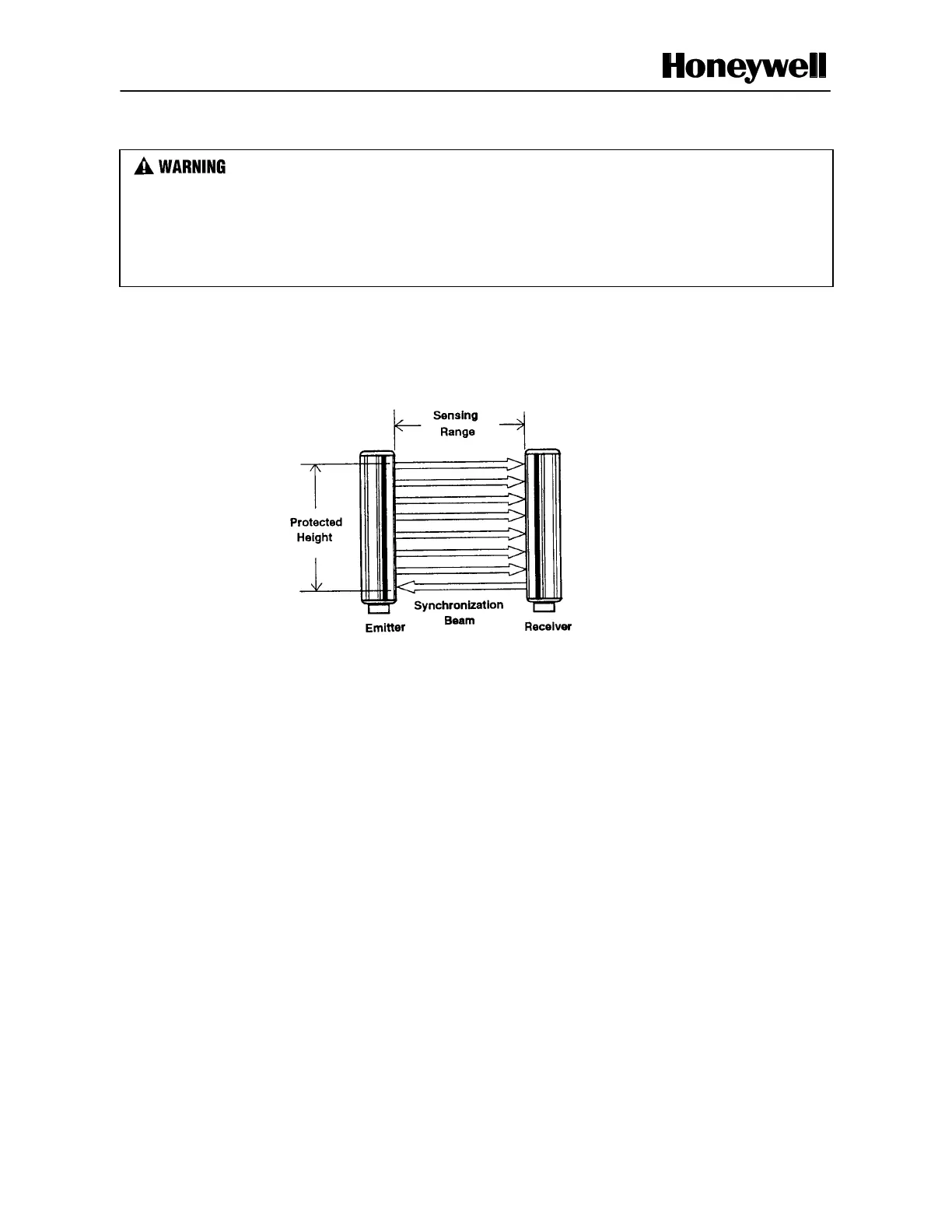

Figure 2-6 Vertical Mounting
For point-of-operation guarding, the light curtain(s) and any mechanical guards must be installed to detect or
prevent operating personnel from standing between the light curtain and the danger zone (see figures 2-7 and
2-8).
