38 107062-12 EN FR26 GLO 501 Printed in France

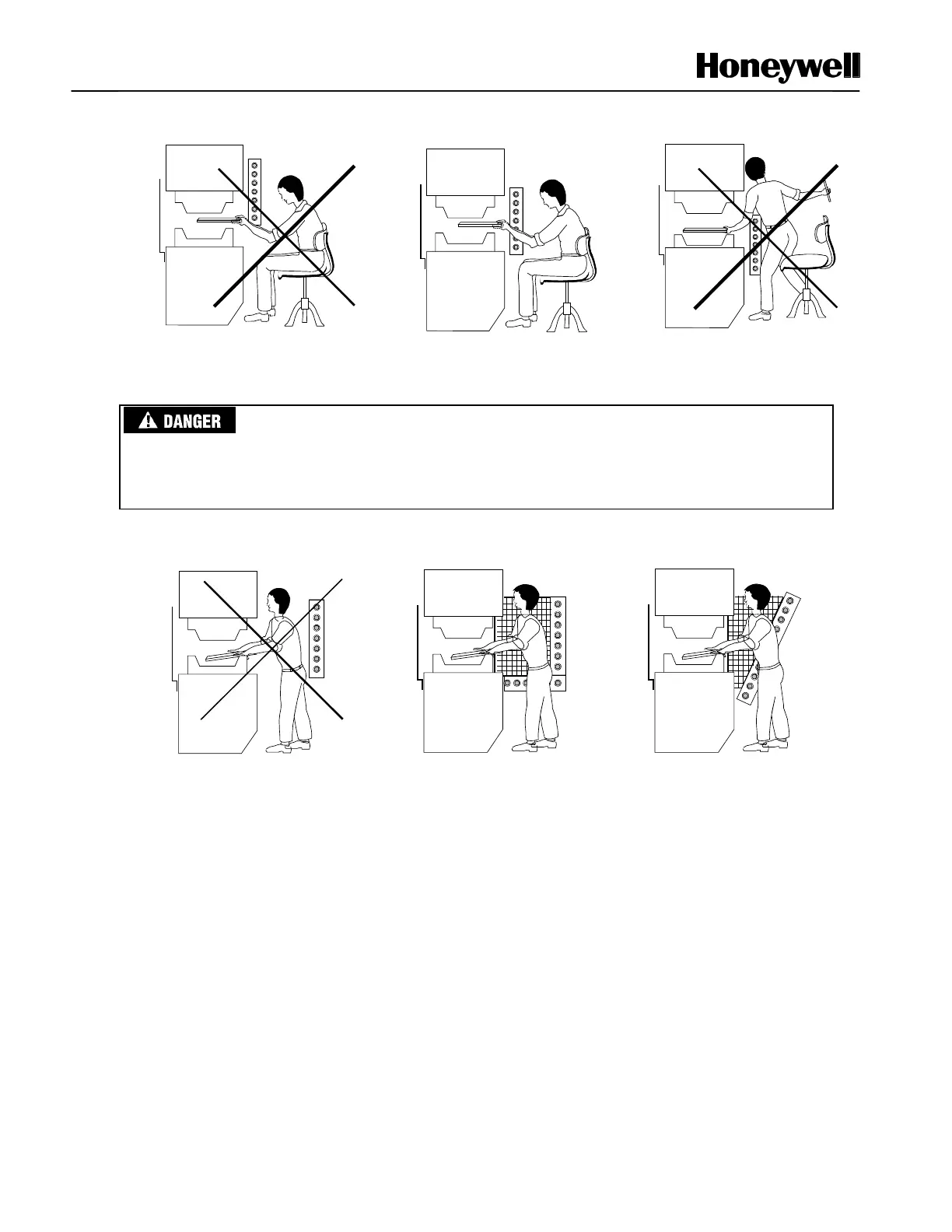

Figure 2-7 Point-of-operation Guarding (use FF-SB12 or FF-SB14 only)
IMPROPER POINT-OF-OPERATION PROTECTION
Install FF-SB Light Curtains and mechanical guards so NO person can stand between light curtain and
danger zone without being detected.
Failure to comply with these instructions will result in death or serious injury.
Figure 2-8 Point-of-operation Guarding (use FF-SB12 or FF-SB14 only)
Mechanical guarding
Mechanical guarding
Mechanical guarding
Operator enters danger zone
under the light curtain
Operator enters danger zone
above the light curtain
Mechanical guarding
Mechanical guarding
Mechanical guarding
Operator is undetected between the
light curtain and dangerous area
Right-angle mounting of two light
curtains prevents undetected presence
inside dangerous area
Light curtain mounted in an angled position
prevents undetected presence inside the
dangerous area
