7
Programming the Camera 1
The camera is programmed using the on-screen display (OSD) menus. You can connect a
portable monitor during installation using the supplied adapter cable.

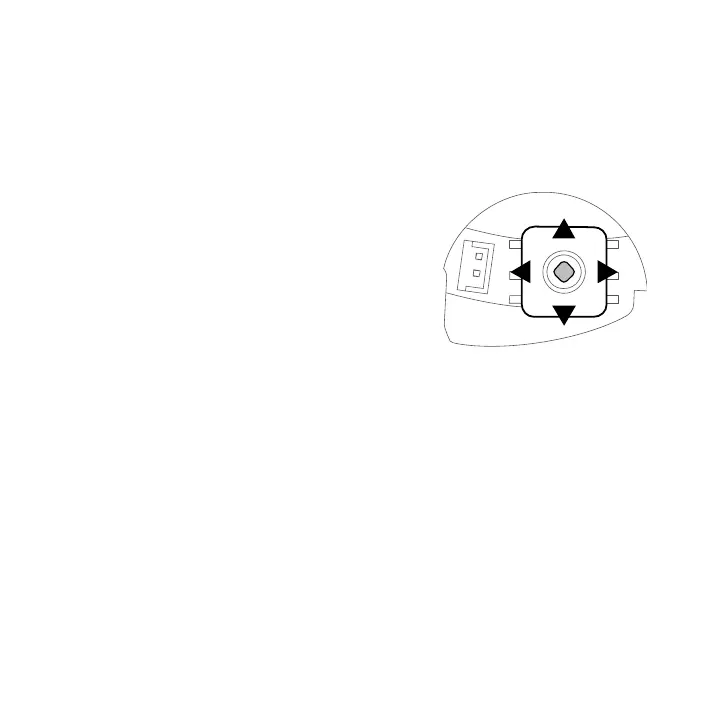

To show the OSD main menu, press the OSD controller
joystick located on the camera control board.
Move the joystick up or down to navigate through the
menu options. Move the joystick right to change a
menu setting.
When a menu option or setting is followed by and
arrow symbol (), press the joystick to access the next
screen. To go back to the main menu, select RETURN
or EXIT JUMP, and then press the joystick.
Exposure Menu
Exposure Lens Settings
Select DC or MANUAL. Press the OSD controller joystick to select and set the various
parameters.
