Chapter 1 — About the Printers
8
PD43 and PD43c Commercial Printer User Manual

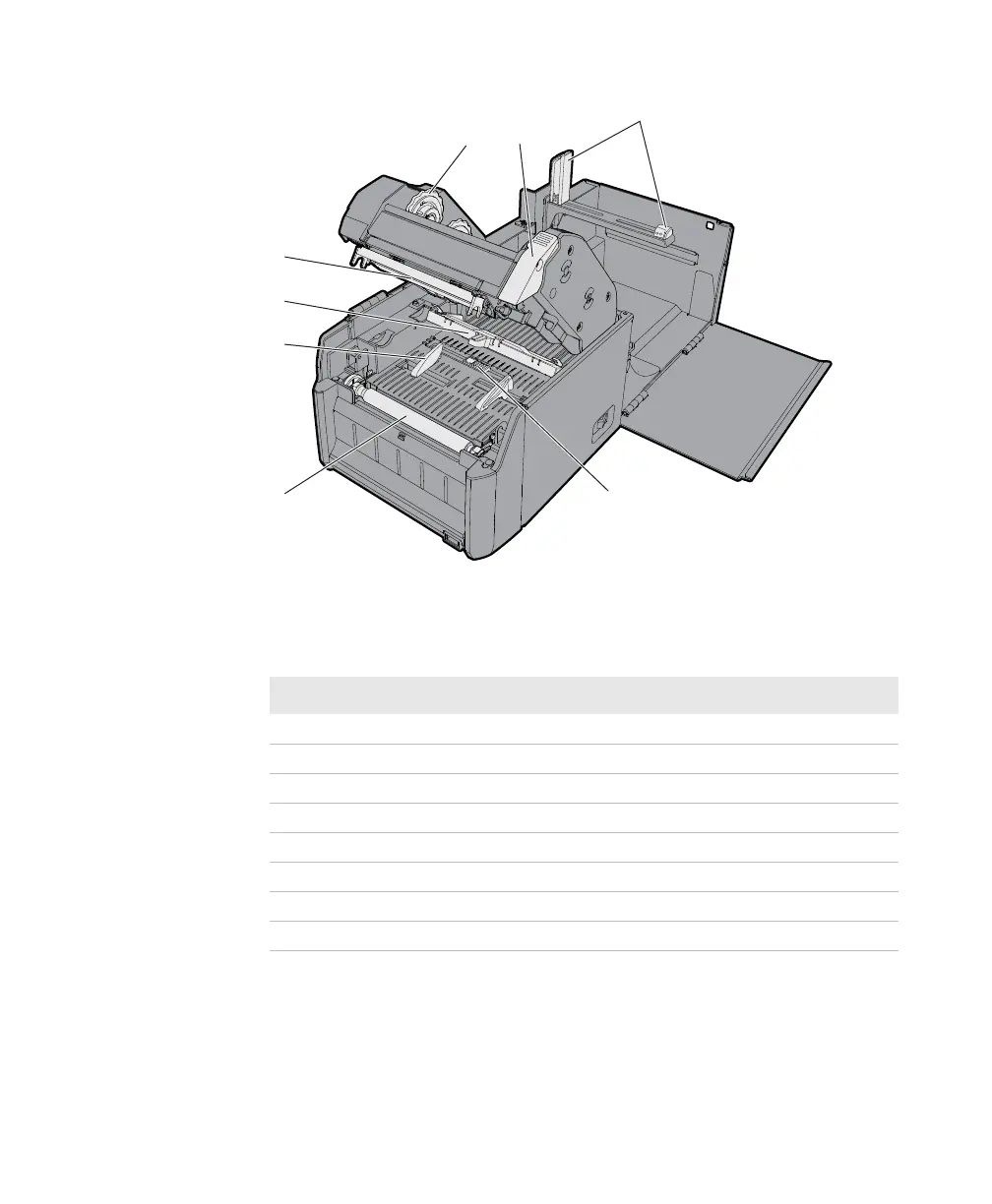

PD43 Medi
a Compartment Feat
ures
PD43 Media C
ompartment Feature Descriptions
Feature
Description
1
Ribbon takeup ro
ller (PD43 TTR models only)
2
Print mechanism release button
3
Media holder guid
es
4P
r
i
n
t
h
e
a
d
5S
e
n
s
o
r
b
a
r
6
Media guides
7
Platen roller
8
Label stop sensor
3
1
2
4
5
6
7
8
21
23
Table of Contents
Default Chapter
5
Table of Contents
5
Before You Begin
11
Safety Information
11
Safety Precautions
11
Global Services and Support
12
Warranty Information
12
Web Support
12
Send Feedback
13
Telephone Support
13
Who Should Read this Manual
13
Related Documents
13
Patent Information
14
About the Printers
15
About the PD43
16
Printer Features
16
About the Front Panel
23
About the Ready-To-Work Indicator
23
About the Icon Front Panel
24
About the LCD Front Panel
25
About the Ready Screen
26
View Basic Printer and Connection Information
28
About the Main Menu
29
Navigate in the Main Menu
30
About the Onscreen Keypads
31
About the Printer Wizards
32
Use a Wizard
34
About Printer Command Languages
34
About Fingerprint
35
About Direct Protocol
35
About IPL
35
About Esim
35
About Zsim
36
About Dsim
36
About Smart Printing
36
About Esim/Zsim Auto-Configuration
36
How to Set the Printer Command Language
37
Set the Command Language from the Printer Web Page
37
Set the Command Language from the Main Menu
38
Set the Command Language with the Print Button
38
Printer Options and Accessories
39
Set up the Printer
43
About Media
44
About Linerless Media
44
About Tag Media
44
About Tear-Off Printing
44
Load Media for Tear-Off Printing
45
About Cut-Off Printing
49
Load Media for Cut-Off Printing
50
About the Label Dispenser
54
Load Media for the Label Dispenser
54
Load External Media for the PD43
60
Set the Pd43C Rear Feed Guides
61
Load External Media Rolls for the Pd43C
62
Load Boarding Passes for the Pd43C
63
Load Airline Media
64
Adjust the Label Stop Sensor
66
About Ribbon
67
Load Ribbon
68
Change the Ink Direction
72
Use the Notchless Ribbon Core Adapter
73
Connect the Printer to Power
76
Use the Setup Wizard
78
How to Set up an Icon Printer
78
Set up an Icon Printer Without a Network Option
79
Set up an Icon Printer with Ethernet
80
Set up an Icon Printer with Wi-Fi
80
Calibrate the Media Feed and Print Test Labels on the Icon Printer
81
Set the Command Language with the Print Button
81
Calibrate the Label Taken Sensor
82
About Test Labels
83
Print a Test Label in Start up Mode
83
Print a Test Label in Idle Mode
84
Print a Test Label from the Main Menu
84
Pause or Cancel a Batch Print Job on the LCD Printer
85
Pause a Batch Print Job on the Icon Printer
86
Cancel a Batch Print Job on the Icon Printer
86
How to Print on RFID Media
87
About RFID Tag Position
87
Run the RFID Calibration Wizard
88
Calculate RFID Tag Position
89
Connect the Printer
91
About Printer Drivers
92
Install Printer Drivers
92
How to Connect the Printer to Your PC
93
Connect the Printer Using a USB Cable
93
Connect the Printer Using a Serial or Parallel Cable
95
How to Connect the Printer to Your Network
96
Connect the Printer to an Ethernet Network
96
About Wi-Fi Communications
98
Connect the Printer to a Wireless Network
99
Configure Wi-Fi Communications from the Printer Web Page
101
About Bluetooth Communications
102
Connect to a Bluetooth Device by Reading a Bar Code
103
Connect to a Bluetooth Device Using a Wizard
103
Configure Bluetooth Communications from the Main Menu
104
Configure Bluetooth Communications from the Web Page
104
About the USB Host Port
105
Connect a USB Device
106
Configure the Printer
107
About Printer Configuration Settings
108
How to Configure the Printer
109
View the Configuration Summary
109
Configure the Printer from the Web Page
110
Configure the Printer from the Main Menu
112
Configure the Printer with Printset 5
112
How to Configure the Printer with Programming Commands
113
How to Configure the Printer with Smartsystems
113
About Printer Profiles
114
Save a Printer Profile from the Web Page
114
Load a Printer Profile from the Web Page
115
Manage Printer Profiles from the Web Page
116
Save a Printer Profile from the Main Menu
117
Load a Printer Profile from the Main Menu
117
How to Load a Printer Profile with Programming Commands
118
About USB Storage Device Directories
118
Print a File from a USB Storage Device
119
Upload Applications and Files from a USB Storage Device
119
Export Applications and Files to a USB Storage Device
120
Export a Configuration File to a USB Storage Device
120
Install a Configuration File from a USB Storage Device
121
Upload or Delete Applications and Resources from the Printer Web Page
122
Troubleshoot the Printer
125
Call Product Support
126
Locate the Printer Configuration and Serial Numbers
127
Problems and Possible Solutions
127
How to Restore Default Settings
132
Restore Defaults from the Printer Web Page
132
Restore Defaults from the Main Menu
133
How to Upgrade the Printer Firmware
134
Download the Printer Firmware Update
134
Upgrade Firmware from the Printer Web Page
135
Upgrade Firmware from a USB Storage Device
135
Upgrade Firmware from the USB Menu
136
About Alerts
137
Configure Alerts
137
Maintenance and Error Alert Messages
138
About Printer System Information
140
View Printer Statistics
141
Check the Printer Odometer
142
Maintain the Printer
143
Clean the Printhead
144
Replace the Printhead
145
Clean the Platen Roller
147
Clean the Exterior of the Printer
148
Specifications
149
Printer Specifications
150
Supported Bar Code Symbologies
153
Test Labels
157
Print Quality Labels
161
Default Settings
165
Default Configuration
166
Bluetooth Settings
166
Display and Audio Settings
167
Error, Information, and Warning Alert Settings
168
Error Alerts
170
Information Alerts
170
Warning Alerts
170
Ethernet Settings
171
General System Settings
172
Media Settings
173
Print Quality Settings
176
Serial Port Settings
177
Virtual COM Settings
178
System I/O Settings
179
System Network Services
180
System Maintenance Alert Settings
181
Wireless 802.11 General Settings
182
Wireless 802.11 Network Settings
183
Wireless 802.11 Security Settings
184
Print Labels with Inprint
187
About the Inprint Page
188
Print Inprint Labels
188
Predefined Inprint Label Formats
189
