Fire Alarm Control Panel IQ8Control C/M
130 FB 798951.GB0 / 01.09
Mounting example – Variant 1:
Top hat rail mounting kit with module housings (optional)
Components of the Top hat rail mounting kit
5
3
4
6
Mounting base for Top hat rail
Fastening screws for Top hat rail
2 x Module housing Part No.788603 / 788603.10
(optional)
Standard Top hat rail, 35 mm

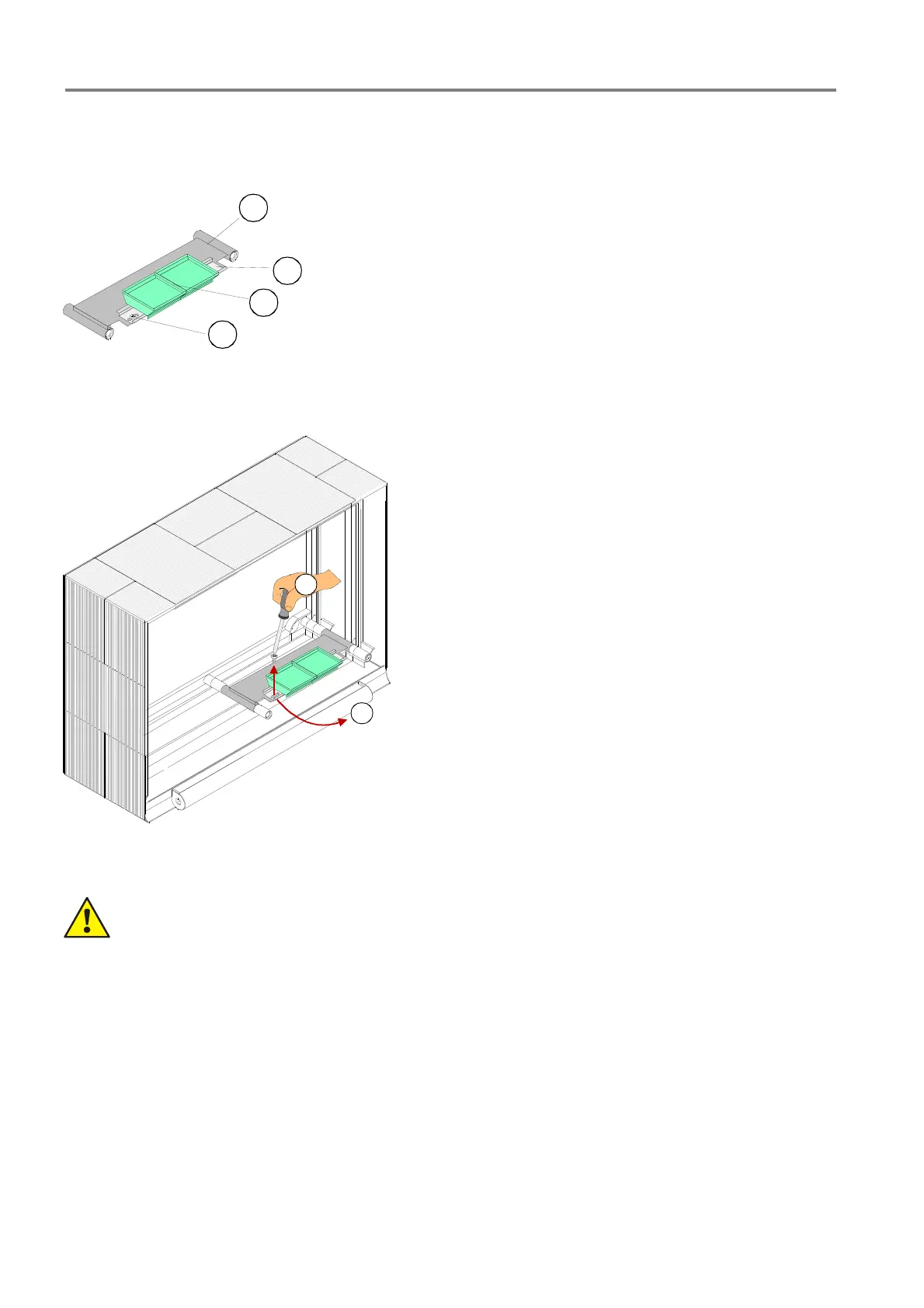

Fig. 104: Components of the Top hat rail mounting kit
Unscrew the left or right FACP fastening screw.
Remove one of this screws
7
8
Carefully turn the top hat rail by 90° max. to remove it
Fig. 105: Mounting/removal of the top hat rail mounting kit (FACP IQ8Control C/M)
Always check that the connection cables are long enough!
ng or removing the assembly.
Ensure that no cables are pinched or damaged when installi
