Fire Alarm Control Panel IQ8Control C/M
FB 798951.GB0 / 01.09 137
Wiring FACP IQ8Control with Panel front (Part No. 7868xx)
F4
+UBext T2A
BR7
Printer
System connector 2
Printer
GND
X23 Printer
+UBext.
+
-
Basic module
Ribbon cable
1)
GND
4
switched +12 V ext.

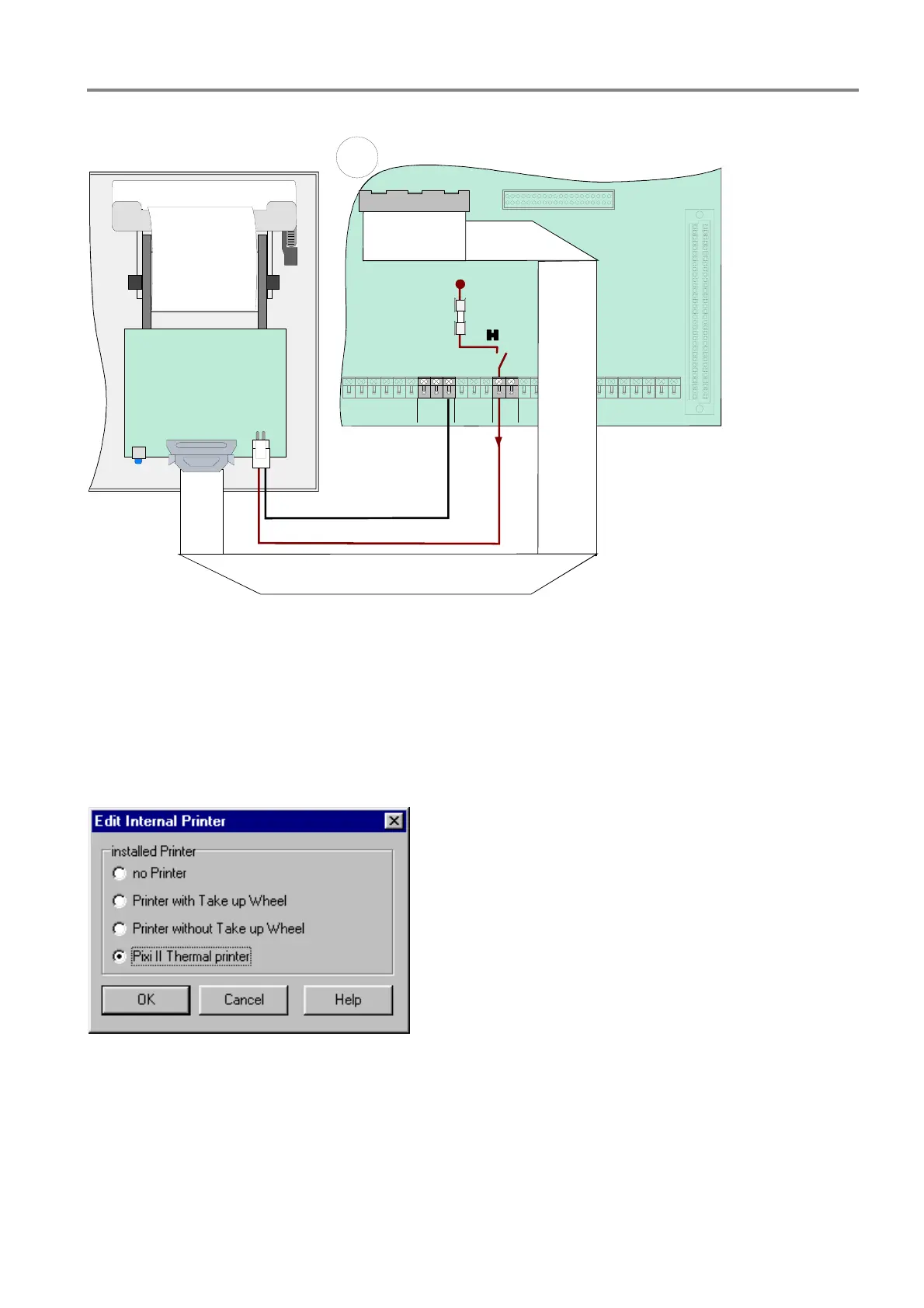

Fig. 115: Wiring Printer
1
)
Ribbon cable, length 50 cm (Part No. 750756) /
Ribbon cable, length 120 cm (Part No. 750757)
Customer data programming with tools 8000
The printer must be programmed with the tools 8000 programming software as a >Pixi II Thermal printer<
in the panel configuration.
Fig. 116: Programming
