Honeywell IQ8Control C User Manual

Fire Alarm Control Panel IQ8Control C/M
138 FB 798951.GB0 / 01.09

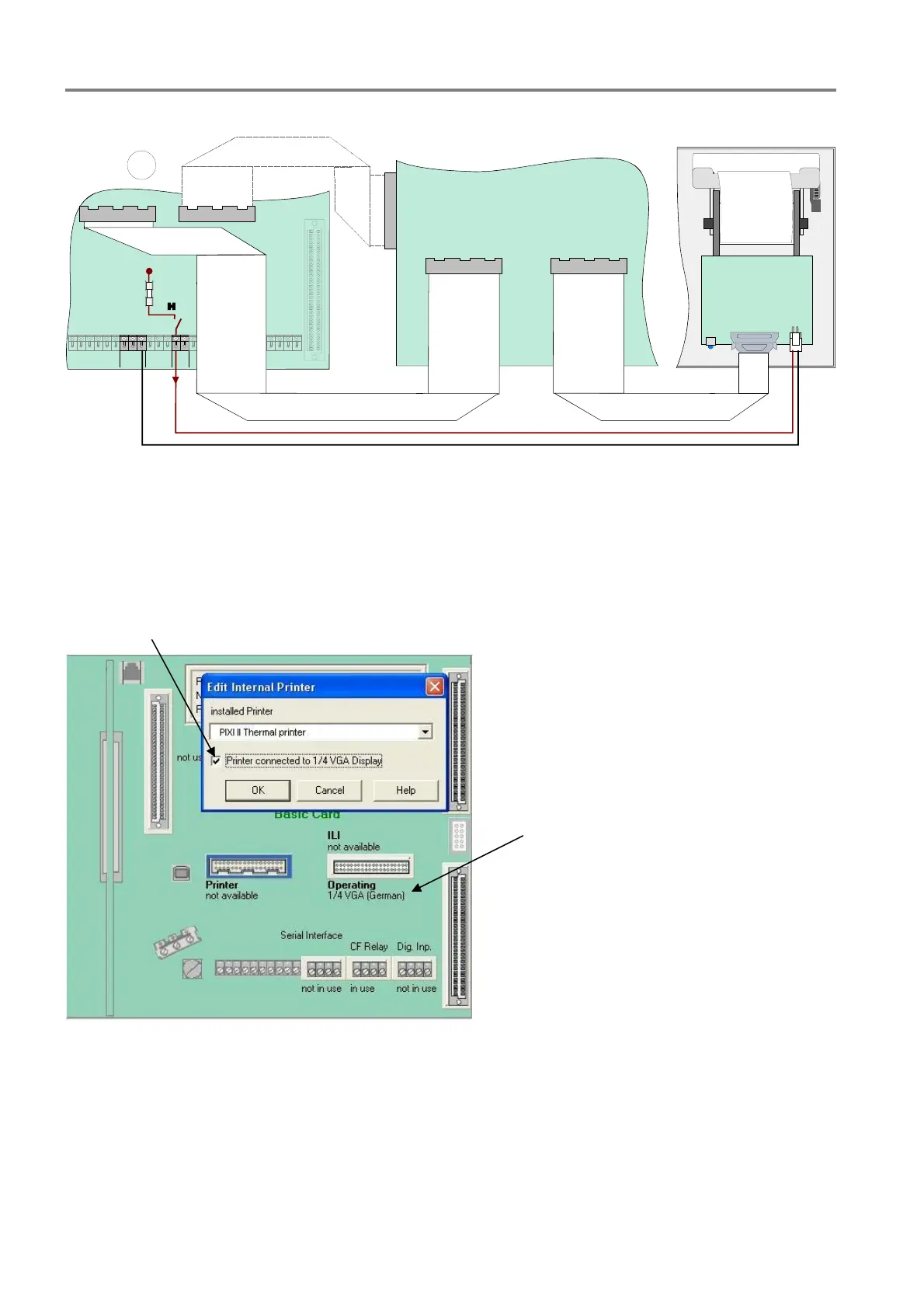

Wiring FACP IQ8Control with Panel front (Part No. 7869xx)
IN
Operating panel with
1/4 VGA Display
(Part No. 7869XX)
GND
switched +12 V ext.
F4
+UBext T2A
BR7
Printer
System connector 2
Printer
GND
+UBext.
Basic module
+
-
X23 Printer X24 MMI
OUT
Ribbon cable
2)
4
Ribbon cable
2)
Fig. 117: Wiring Printer
2)
Ribbon cable, length 70 cm (Part No. 750720)
Customer data programming with tools 8000
The printer must be programmed with the tools 8000 programming software as a >PIXI II Thermal printer<
in the panel configuration.
Printer connected to 1/4-VGA-Display
Operating 1/4-VGA
Fig. 118: Programming
