Honeywell IQ8Control C

Fire Alarm Control Panel IQ8Control C/M
142 FB 798951.GB0 / 01.09
Fire protection housing (F30) with fire alarm control panel
123
456
789
0
1
2 3
4
5
6
7
8
9

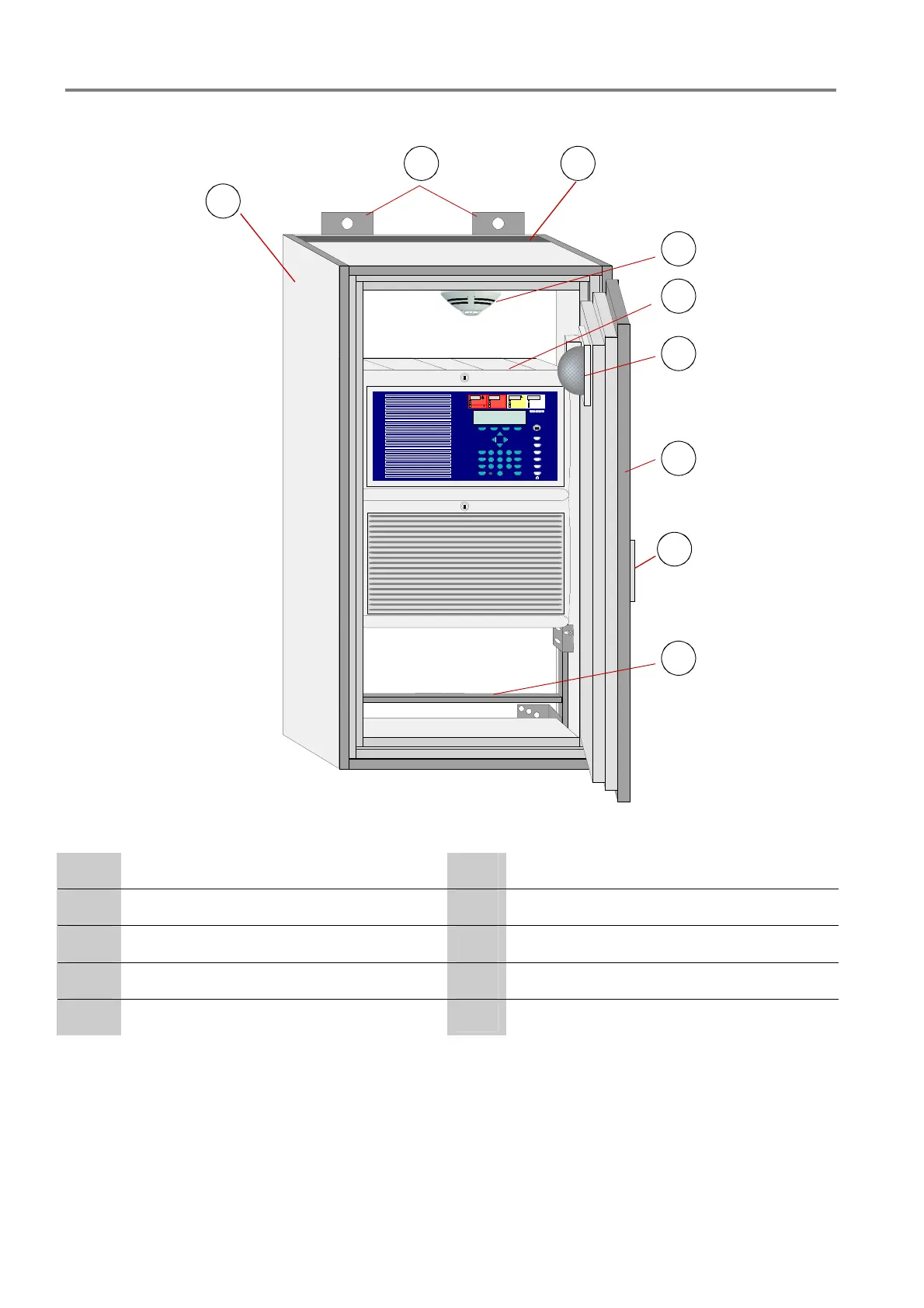

Fig. 124: Schematic diagram with installed FACP 8000/IQ8Control M
 
Fire protection housing (F30) - RO or LO Ventilation system (optional)
 
Mounting lugs (above + below) Door
 
Cable bulkhead Pivoted lever closure
 
Fire detector Installation frames with fastening angle

Fire alarm control panel (FACP)
Fire protection housing (F30) specification:

Housing is light grey on the outside, similar to RAL 7035
 Fire insulation according to DIN 4102
 The cable entries have a fire resistance duration of more than 30 minutes
 Protect the housing against water, penetrating moisture/splash water.
