Fire Alarm Control Panel IQ8Control C/M
FB 798951.GB0 / 01.09 143

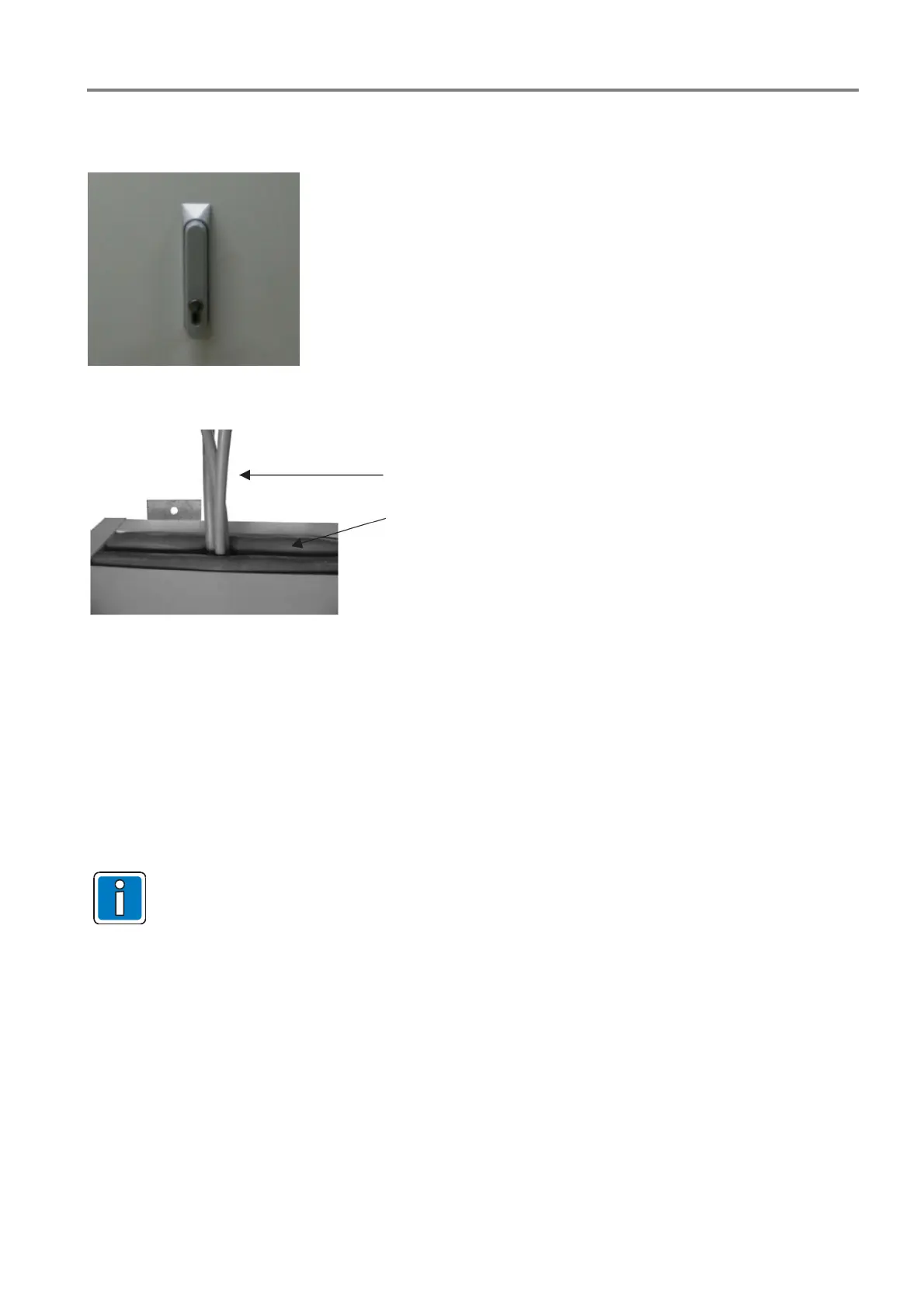

Pivoted lever closure
Turn the pivoted lever 90° upwards in an anti-clockwise
direction
Open the door
Opening:
Closing:
Close the door, making sure that the pivoted lever is in the
open position
Lightly press on the door and turn the pivoted lever 90°
downwards in a clockwise direction
Reinsert the pivoted lever into the pivoted lever mount
until a click is heard
Cable bulkhead
Cable bundling or separate cable
Fire protection foam
The cable is fed from above via a bulkhead which extends over the whole width.
Cables with an external diameter of up to 70 mm or even cable bundles can be fed in.
The remaining room of the flexible bulkhead material (fire protection foam) must be sealed using the
enclosed fire protection compound.
The operation/assembly manual should always be kept at the assembly location of the housing.
Statutory safety information for the user must be placed in a clearly visible location in the direct
vicinity of the housing.
All safety and hazard warnings as well as the identification plate must be kept in an easily readable
condition.
