Housing contact
The housing contact provides the monitoring of the panels housing and may be used additionally for control
function by means of service or maintenance work, e.g. to disconnect devices whilst the contact is open.
1 1
11
 Max. 2 contacts per housing
(1 integrated contact by factory configuration)
 Max. 4 contacts per FACP
 Select contact operation via the panels data
configuration, e.g.
- Disconnect master box whilst open contact
- Access of Service-PC whilst open contact
- und additional features
The housing contact must be place to the appropriate
insert on the top corner of the housing.
 Housing contact / contact tab points downwards
X7 X8
8
7
6
5
Housing contact
V2
Housing
open
1
2
3
4
Connect to Basic module
(refer to section “Basic module”)

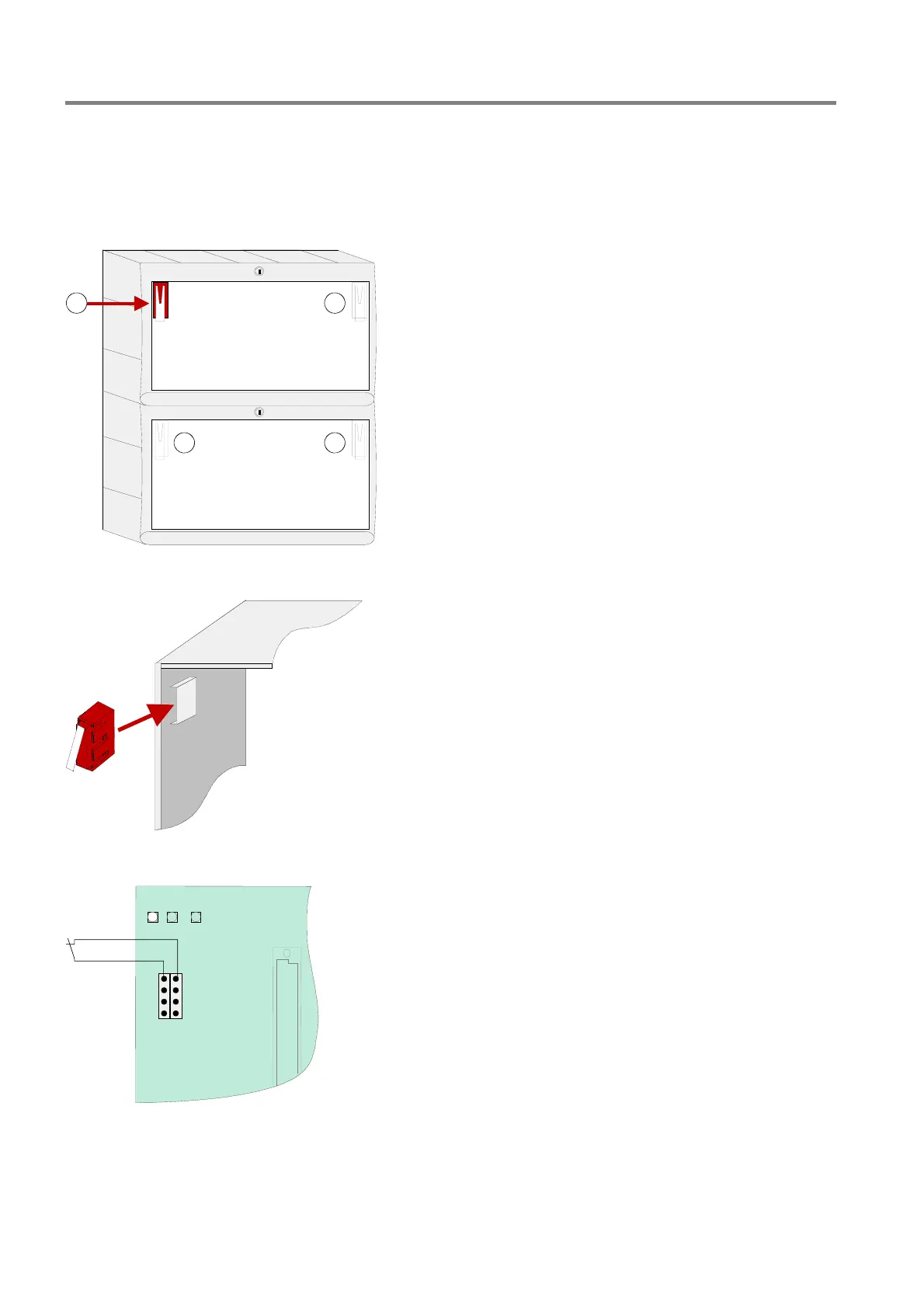

Fig. 16: Housing contact
