Fire Alarm Control Panel IQ8Control C/M
24 FB 798951.GB0 / 01.09
Wall mounting
The panel must be mounted on a flat surface using appropriate hardware (screws and dowels). Avoid
mechanical stressing. It may only be commissioned after correct mounting on a wall or other mounting surface
of sufficient strength to support the weight of the unit. Minor unevenness of the mounting surface may be
adjusted by the wall compensation device. Apply the delivered key tool from the inside of the housing to adjust
the wall compensation devices.
1

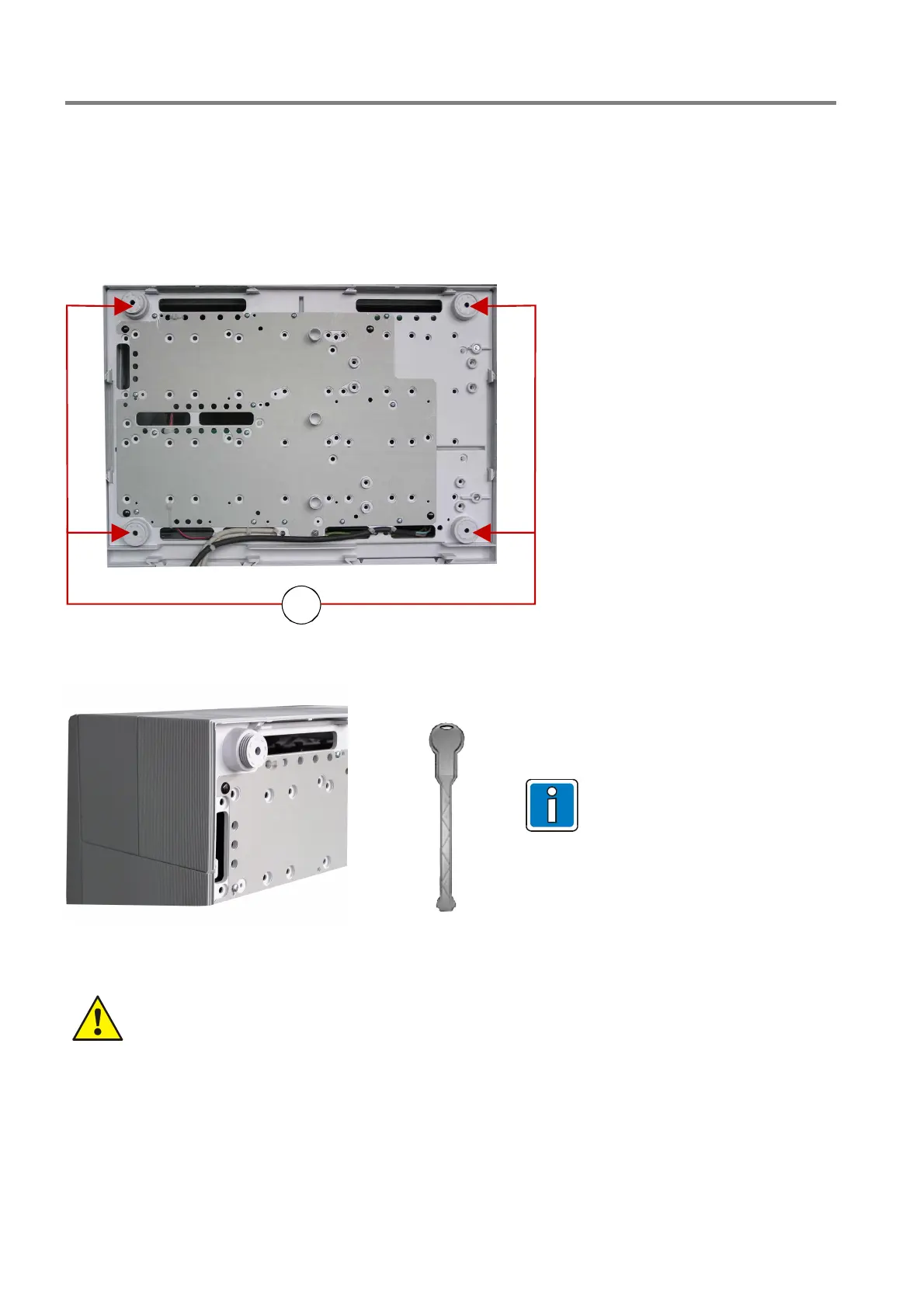

Fig. 18: Rear side of the Standard back box
Plastic key is enclosed.
Fig. 19: Wall compensation element for adjusting and key tool
Damage to the system !
Please note that depending on the rechargeable batteries used, a significant weight must be
supported by the fastening screws of the extension housing.
