Fire Alarm Control Panel IQ8Control C/M
32 FB 798951.GB0 / 01.09
Mechanical battery fasteners
1
Up to 2 batteries may be place inside the compact
housing. The required batteries fastener (plastic
device) is delivered with the panels equipment.
Place batteries as shown and insert fastener.
Fix the mechanical battery fastener by inserting
the two screws
.

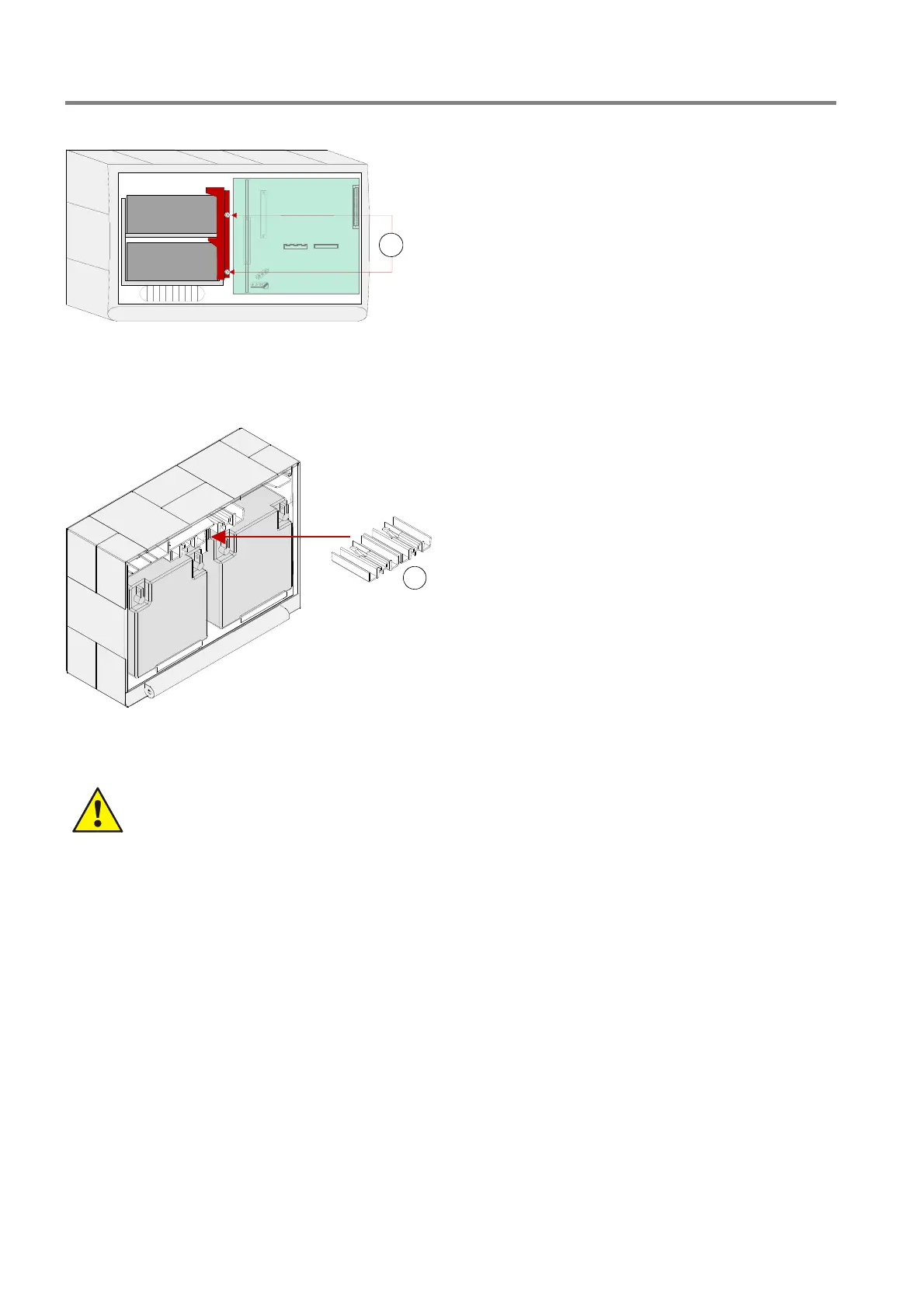

Fig. 26: Mechanical battery fasteners e.g. compact housing IQ8Control C
1
Up to 2 batteries 12 V / 24 Ah may be placed inside
the lower housing part of the IQ8 Control M or in the
extension housing (part no. 783000 / 01). The
required battery fastener (plastic device) is delivered
with the panel equipment.
Place batteries as shown and insert fastener.
Assemble the additional battery mount by
pushing in.
Fig. 27: Mechanical battery in the housing of the IQ8Control M or in the extension housing
Damage to the system!
Please note that depending on the rechargeable batteries used, a significant weight must be
supported by the fastening screws of the extension housing. It is not permissible to install the
rechargeable batteries without these fastening clamps.
