Fire Alarm Control Panel IQ8Control C/M
FB 798951.GB0 / 01.09 31

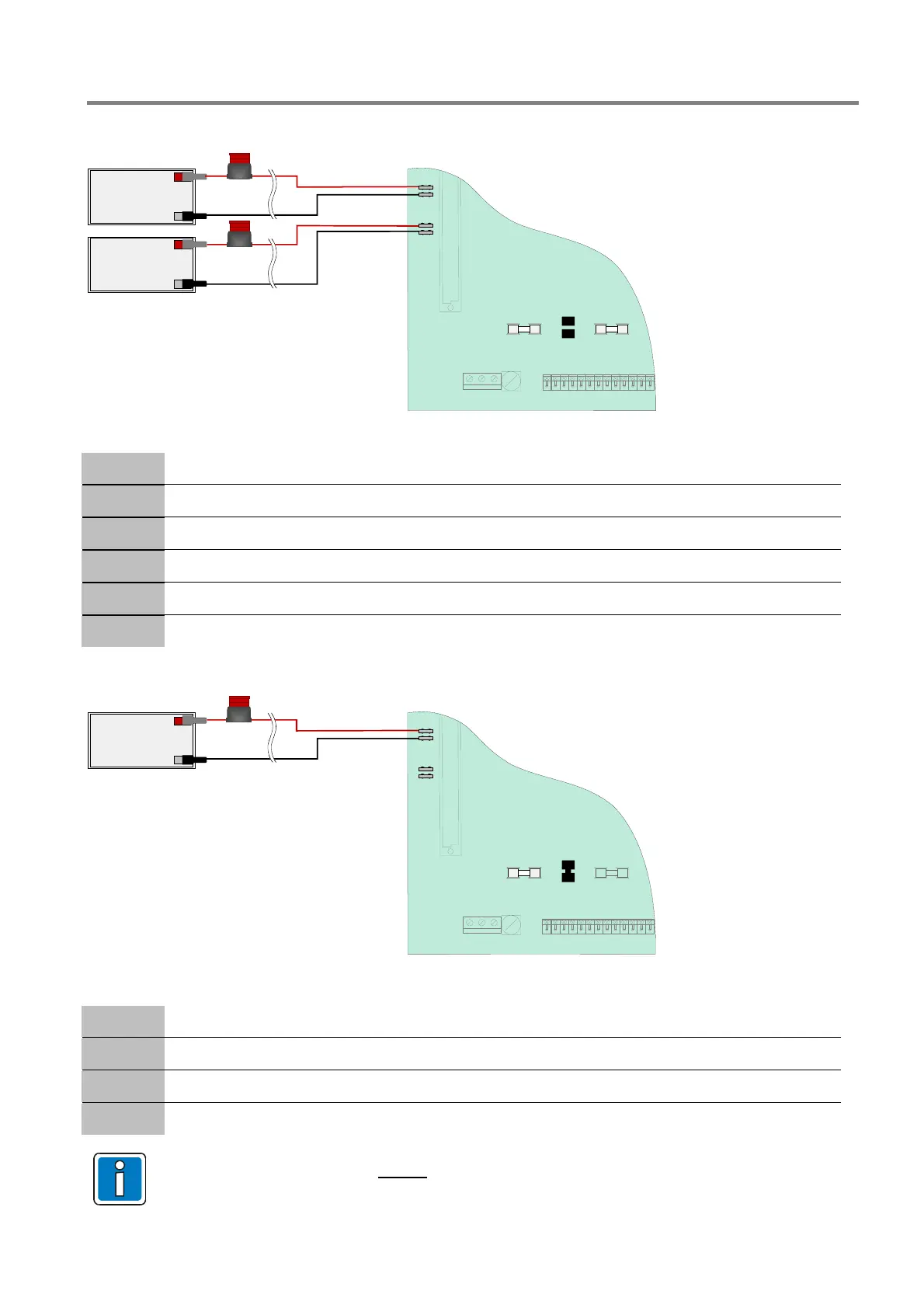

Connection of two batteries
BR2
F2 battery 1
T2.5A
F3 battery 2
T2.5A
+
-
Battery 1
+
-
Fx
Battery 1
Battery 2
+
-
+
-
Fx
Battery 2
Fig. 24: Connection of two batteries
Battery 1
max. 12 V DC / 24 Ah
Battery 2
max. 12 V DC / 24 Ah
BR2
Open Î battery 1 + 2 monitoring enabled (factory setting)
F2
Fuse (slow blow) T2.5A – battery charge current, battery 1
F3
Fuse (slow blow) T2.5A – battery charge current, battery 2
Fx
Fit usual battery fuse 12 V DC / 10 A (delivered with sub-package)
Connection of a single battery
Battery 2
BR2
F2 battery 1
T2.5A
+
-
+
-
Battery 1
+
-
Fx
Battery 1
Fig. 25: Connection of a single battery
Battery 1
max. 12 V DC / 24 Ah
BR2
Open Î battery 2 monitoring disabled
F2
Fuse (slow blow) T2.5A – battery charge current, battery 1
Fx
Fit usual battery fuse 12 V DC / 10 A (delivered with sub-package)
If a single battery is connected without
closing jumper BR2, a battery fault will occur next time and
an internal control panel battery test is performed.
