Fire Alarm Control Panel IQ8Control C/M
66 FB 798951.GB0 / 01.09
The esserbus
®
PLus cable is directly connected to the terminals on analog loop module (Part No. 804382 /
804382.10 / 804382.D0)
Example:
1
esserbus
®
PLus cable
terminal
Analog loop
module (Part No. 804382 /
804382.10 / 804382.D0)
The cable screen must be
connected to the mantle
terminal (panel housing)..

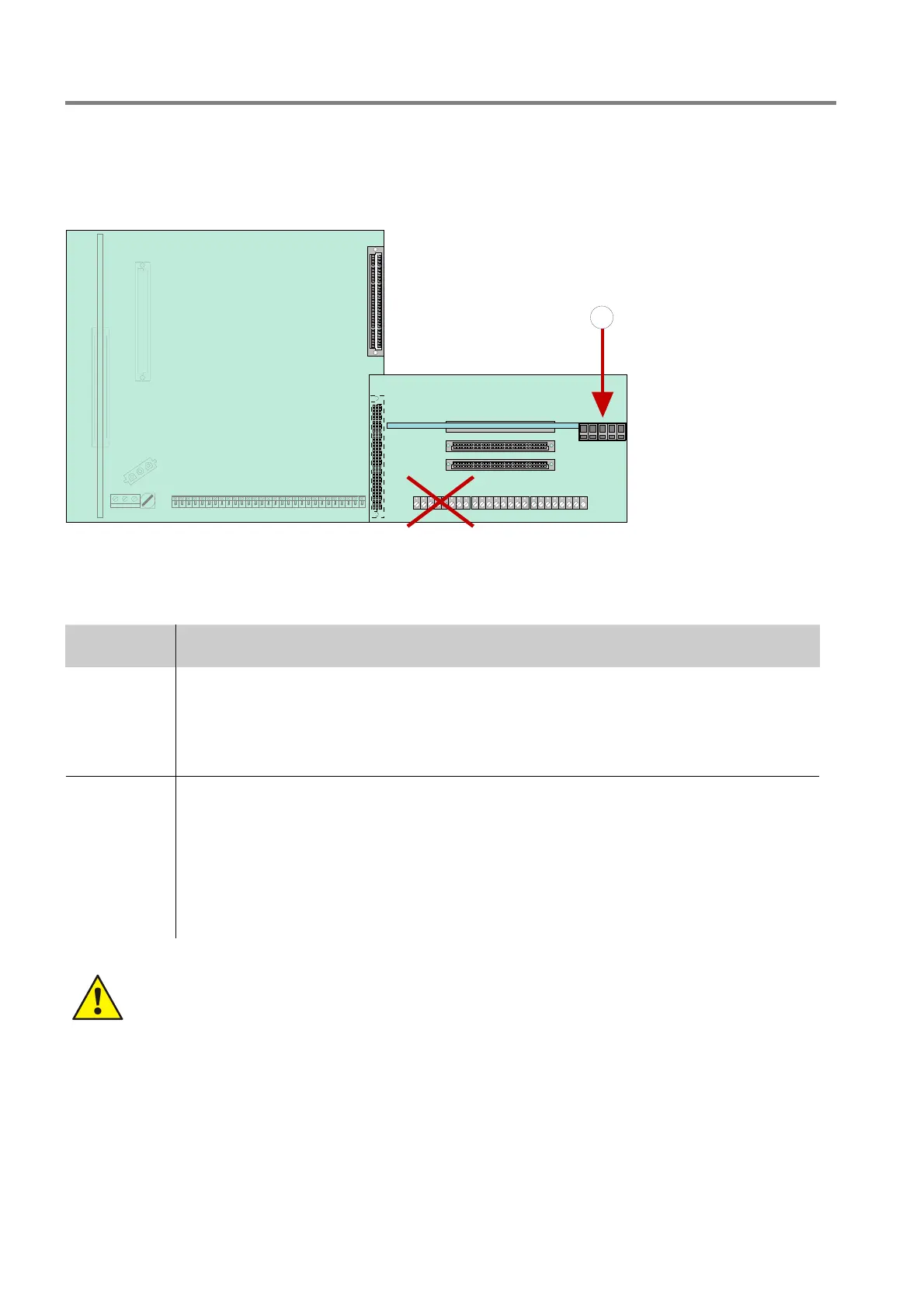

Fig. 58: esserbus
®
PLus cable terminal
Analog loop module (Part No.804382 / 804382.10 / 804382.D0)
Requirements components for the esserbus
®
-PLus analog loop:
Part No Description
802426 Power supply module with selectable 27.5 V / 42 V analog loop voltage
27,5 V
« for esserbus
®
or
42 V
« for esserbus
®
PLus
804382 /
804382.10 /
804382.D0
Analog loop module for esserbus
®
PLus connection.
max. 4 analog loop modules per Fire Alarm Control Panel
1)
It is only permitted to connect suitable devices for the higher loop voltage 42 V e.g.
transponders or fire detectors with Part No.
80xxxx to the esserbus
®
PLus loop
Damage to the system !
esserbus
®
PLus must be installed with the appropriate loop devices. Mixed operation of standard
esserbus
®
and esserbus
®
PLus with one control panel is not possible because the higher analog
loop voltage of 42 V. The loop devices compatible with esserbus
®
PLus are indicated by the
Part No.
80xxxx.
1)
refer table chapter 5.1.3.
