3 . 4 P r og r a m s t a t u s a n d fa u l t m e ss a g e s

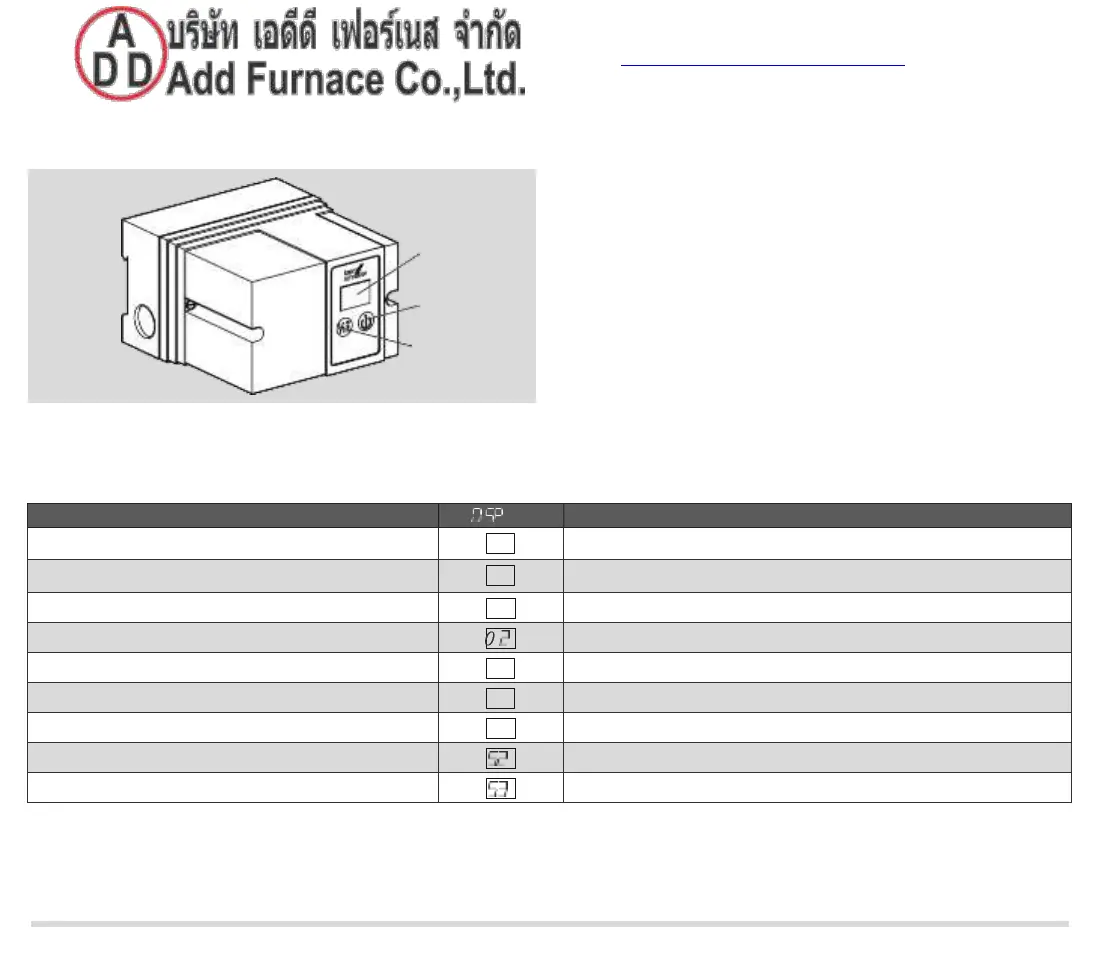

Operating controls
A: 2-digit 7-segment display for indicating program
status and flame signal.
B: Reset/Information button to reset the system after a
fault or to call up the flame signal on the display.
C: Mains On/Off button.
The 7-segment display ( A ) shows the program status. In the event of a fault, the IFD halts the program run and the
display starts to blink. The program status and cause of the fault are displayed in coded form.
Program status
I LAY
Fault message (blinking)
Unit can be switched off
––
Start-up position/standby
00
Waiting time/Pause time
01
Flame simulation
Safety time on start-up tSA
Start-up without flame signal
Operation
04
Flame failure during operation
09
Oscillating thermostat signal
10
Too many remote resets
Permanent remote reset
Time between two start-ups is too short
A
C
B
