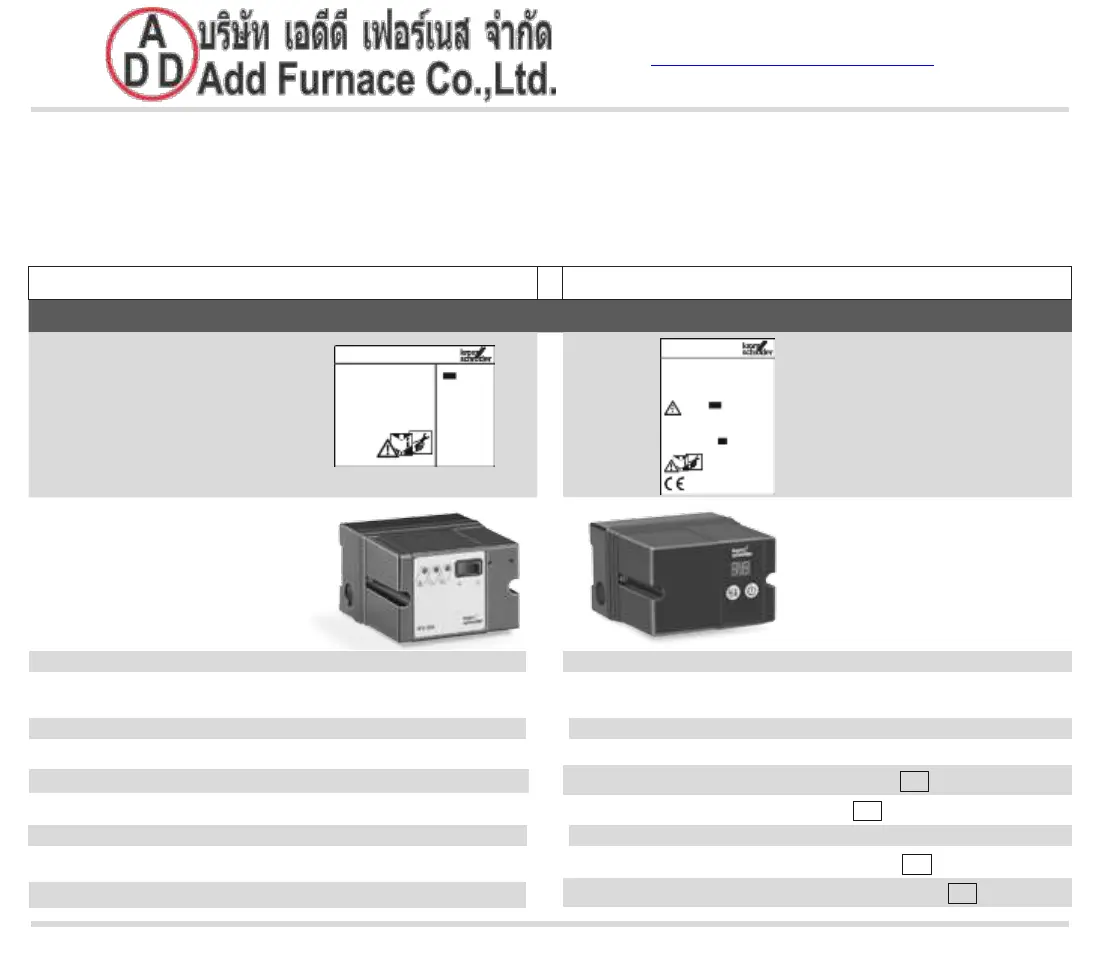

5 Replacement possibilities
The new automatic burner control unit IFD 258 is inter-
changeable with the IFS 258 and provides almost all of the
previous functions of the IFS 258.
The housing dimensions and hole pattern are un- changed.
The new upper section of the housing will fit on the existing
lower section (for further information see op- erating
instructions “Automatic burner control unit for continuous
operation IFD 258”).
IFS 258
IFD 258
D-49018 Osnabrück, Germany
D-49018 Osnabrück, Germany
IFD 258
IFS 258
VAC
50/60 Hz
CE-0063BXXXXX
CE-0063AT1088
-20/+60 C
ts
IP 40 (30)
IP 54/NEMA 3
Signalling contact for fault and operating signals Signalling contact for fault and operating signals
Flame signal called up via test jacks in upper section of housing using
external measuring instrument
The flame signal can be called up on the 2-digit 7-segment display.
Complies with requirements in accordance with EN 1993 Complies with requirements in accordance with EN 2003
Fault signal with no mains voltage supplied Fault signal with mains voltage supplied
Flame simulation indicated by yellow LED
Flame simulation indicated on 7-segment display =
01
Operation indicated by yellow and green LEDs
Operation indicated on 7-segment display =
04
Mains voltage = 100, 115, 200, 230 V Mains voltage = 100, 120, 200, 230 V
No protection against frequent remote resets
Protection against frequent remote resets (blinking
10
)
No protection against frequent switch-off during t
SA
Protection against frequent switch-off during t
SA
(blinking
09
)
