Mechanics of Programming
Navigating Menus
Touchscreen Display
LYNX Touch’s Liquid Crystal Display (LCD) touch-screen displays variable icons and text on “screens”. The
screen displays status icons and associated text, the current time and date, system status information and
menu choices. The Menu area includes a list of commands, or choices that apply to the current selection. The
status area provides information about various system events and a colored bar also provides an indication
of system status. A “Home Screen” is displayed whenever power is applied to the system. In addition, the
“Home” Function key is lit Green when the system is ready or flashes when it is not. When the system is
Armed the “Panic” Function and “Home” Function keys are both lit red.
PANIC
FUNCTION
KEY
70000-100-012-V2
HOME
FUNCTION
KEY
2 35 1 :
PM
January 12, 2010
WiFi
STATUS
SYSTEM
STATUS
Ready To Arm
Video
Notices
Security
Automation

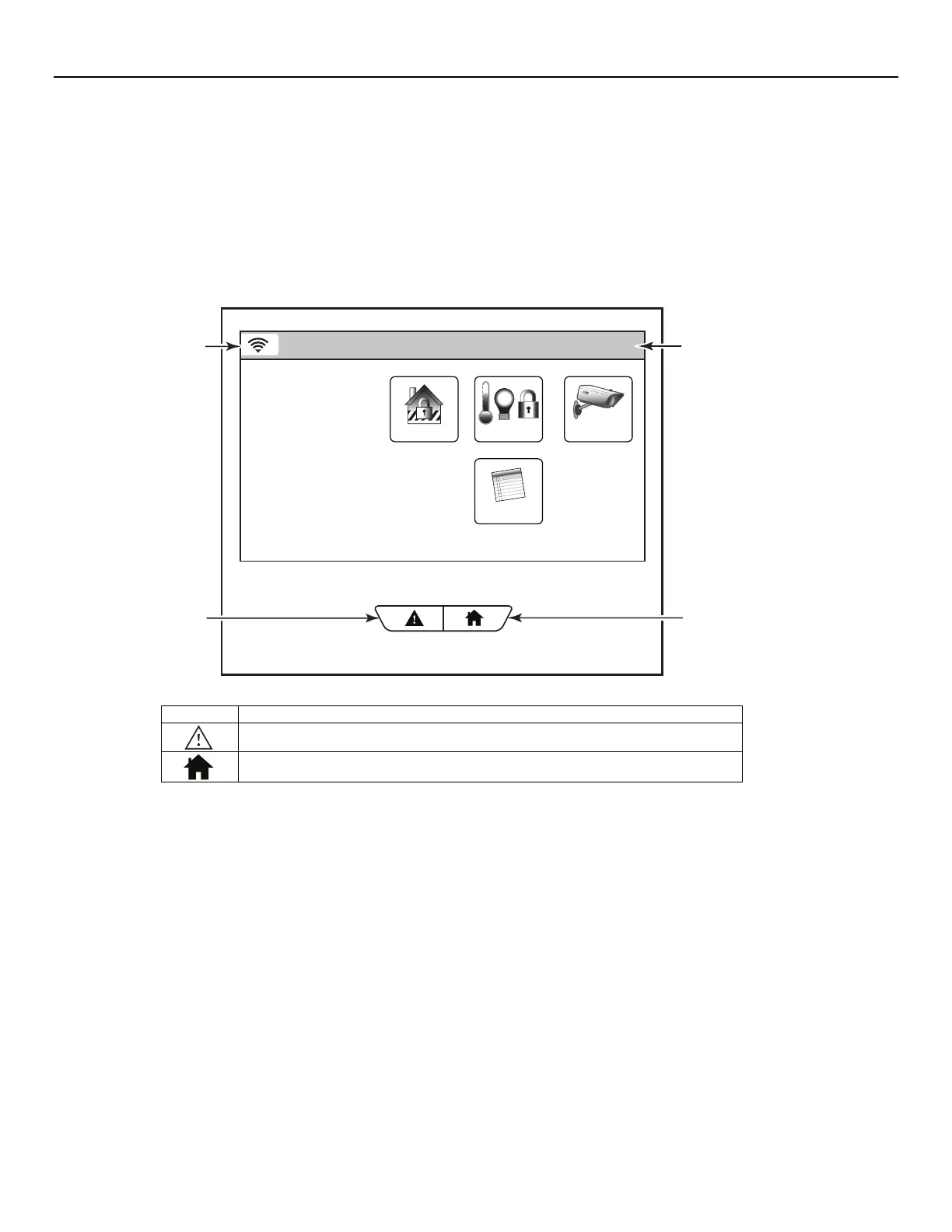

L5210/L7000 Home Screen
Key
Desc
ription
Panic key - Initiates panic alarm options when depressed for 4 seconds.
Home key - Used to exit from a screen or return to the home screen
Keypad Lockout
In the event that 30 numeric keys (0-9) have been entered within a 15-minute window and a valid command
is not executed, the system stops processing additional numeric key presses for a period of 15 minutes.
Entering any numerical keys during that period will cause the control to emit a single long beep. CID Code
461 Wrong Code Entry will be entered in the Event Log and transmitted to the Central Station. When the
15-minute lockout window expires, a Restore message is sent to the Central Station and entered into the
Event Log.
