Honeywell L5210 Series Installation And Startup Guide

LYNX Touch Installation and Setup Guide
- 71 -
5201-100-SOC-V1
2K
OHM
EOLR
HARD
WIRED
ZONE
PREMISES
TELEPHONE
INCOMING
PHONE LINE
H/S T
H/S R
RING
TIP
EGND
EARTH GROUND
HWZ1
TRIG
GND
GND
+9VDC
300-04705V1 or 300-04065V1
(300-04063V1 CANADA)
POWER SUPPLY 9VDC, 2.5A
STANDARD CAPACITY
BATTERY CONNECTOR
SUPER HIGH CAPACITY
BATTERY CONNECTOR

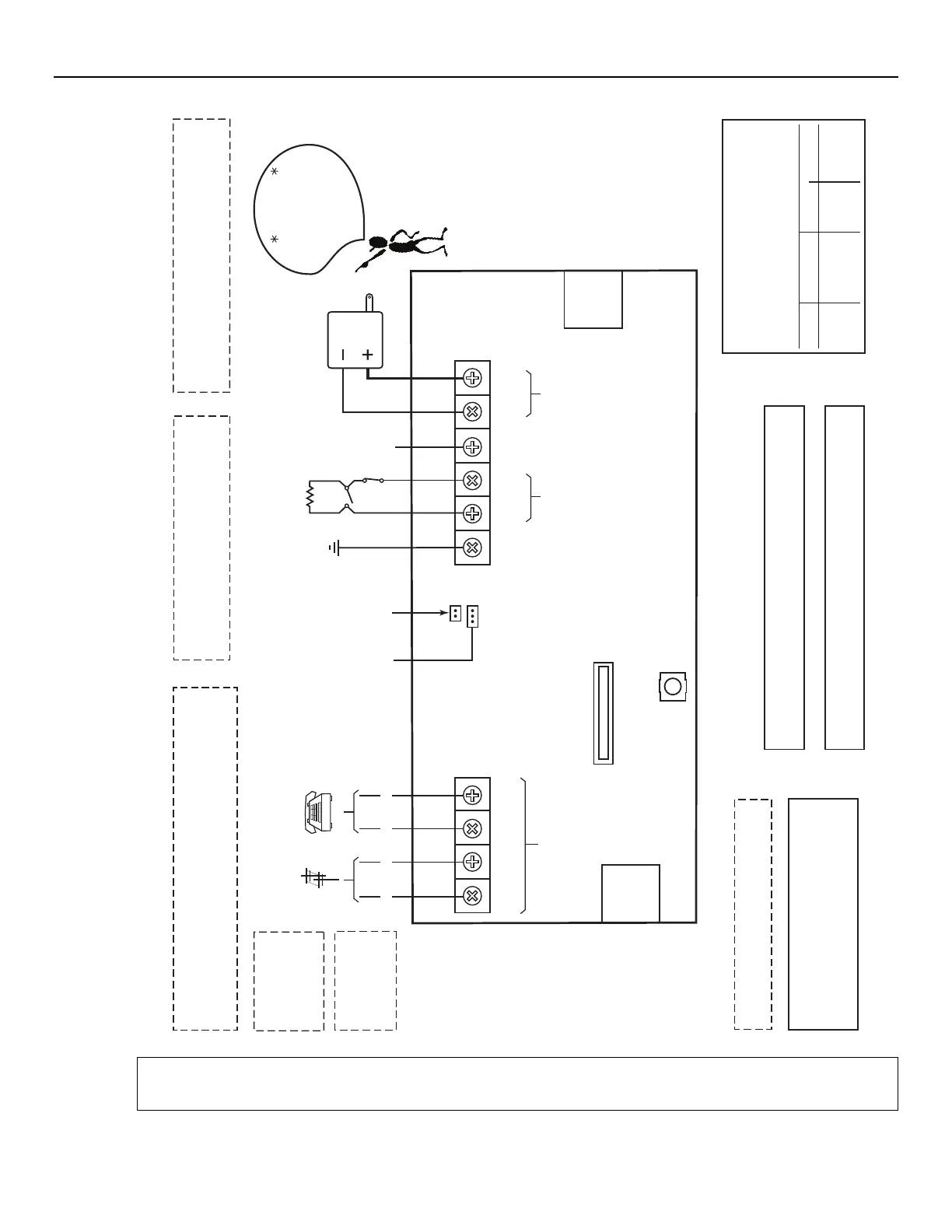

LYNX TOUCH SERIES SUMMARY OF CONNECTIONS
ZONES
POWER
PHONE
(L5210/L5210CN ONLY)
TRIGGER OUTPUT (NEG)
(3ma)
THIS DEVICE COMPLIES WITH PART 15 OF FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
THIS EQUIPMENT SHOULD BE INSTALLED IN ACCORDANCE WITH THE NATIONAL FIRE PROTECTION ASSOCIATION STANDARDS ANSI/NFPA 70 NATONAL ELECTRIC CODE AND NFPA 72 NATIONAL FIRE ALARM CODE, CHAPTER 2 (NATIONAL FIRE PROTECTION ASSOC., BATTERYMARCH PARK, QUINCY, MA 02169). PRINTED INFORMATION DESCRIBING PROPER INSTALLATION, EVACUATION PLANNING AND REPAIR SERVICE IS TO BE PROVIDED WITH THIS EQUIPMENT.
THE LYNX TOUCH CONTROLS ARE COMPATIBLE WITH THE FOLLOWING INTEGRAL RECHARGEABLE BATTERY PACKS:
REPLACE EVERY FOUR YEARS
P/N 300-03864-1/LYNXRCHKIT-SC
P/N 300-03866/LYNXRCHKIT-SHA
COMPLIES WITH FCC RULES, PART 68 FCC REGISTRATION No. AC3AL05BL5000 RINGER EQUIVALENCE: 0.5B
RINGTIP RING TIP
TAMPER
SWITCH
EDGE
CONNECTOR
(L5100-WiFi)
EDGE
CONNECTOR
(L5100-
ZWAVE)
NOTE: THE HARDWIRE ZONE CANNOT BE USED AS A FIRE ZONE.
UL INSTALLATIONS
THE MINIMUM WIRE
SIZE USED FOR
TELEPHONE
INSTALLATIONS
MUST BE #26 GAGE
WARNING
TO PREVENT RISK OF
SHOCK, DISCONNECT
TELEPHONE LINE
AT TELECOM JACK
BEFORE SERVICING
THIS UNIT
LYNX TOUCH SERIES ALSO COMPLIES WITH THE FOLLOWING: CANADIAN STANDARDS ASSOCIATION (CSA) C22.1, CANADIAN ELECTRICAL CODE, PART 1, SAFETY STANDARD FOR ELECTRICAL INSTALLATIONS AND CAN/ULC-S540 INSTALLATION OF RESIDENTIAL FIRE WARNING SYSTEMS.
CIRCUIT
(ZONE)
CONTROL UNIT
DELAY-SEC
SMOKE DETECTOR
MODEL DELAY-SEC
THIS UNIT MAY BE PROGRAMMED TO INCLUDE AN ALARM VERIFICATION FEATURE THAT WILL RESULT IN A DELAY OF THE SYSTEM ALARM SIGNAL FROM THE INDICATED FIRE CIRCUITS. THE TOTAL DELAY (CONTROL UNIT PLUS SMOKE DETECTORS) SHALL NOT EXCEED 60 SECONDS. NO OTHER INITIATING DEVICES SHALL BE CONNECTED TO THESE CIRCUITS UNLESS APPROVED BY THE LOCAL AUTHORITY HAVING JURISDICTION.
WARNING
5806W3 10 seconds30 seconds
02 - 48
ZONE TYPE
SUPERVISED
FIRE WITH
VERIFICATION
Be sure to observe
polarity when
connecting the
power supply to
the terminal strip.
IMPORTANT
COMMUNICATIONS MODULE
RECEPTACLE
WEEKLY TESTING IS REQUIRED TO ENSURE
PROPER OPERATION OF THIS SYSTEM
TO THE INSTALLER
THE EXTERNAL ANTENNA MUST NOT EXCEED A MAXIMUM DIRECTIONAL GAIN
(INCLUDING CABLE LOSS) OF 3.2 dBi AT 850 MHz AND 2.3 dBi AT 1900 MHz.
IMPORTANT NOTE ABOUT EXTERNAL ANTENNAS
IF AN EXTERNAL CELLULAR RADIO ANTENNA IS USED, THE ANTENNA MAY
BE INSTALLED OR REPLACED ONLY BY A PROFESSIONAL INSTALLER.
Notes: Connection of the fire alarm signal to a fire alarm headquarters or a Central Station shall be permitted with the
approval of the local authority having jurisdiction. The burglar alarm signal shall not be connected to a police
emergency number. The System must be checked by a qualified technician once every three years
