Honeywell MeshGuard LEL IR - LCD Display Overview

MeshGuard LEL IR & CO2 IR User’s Guide
12

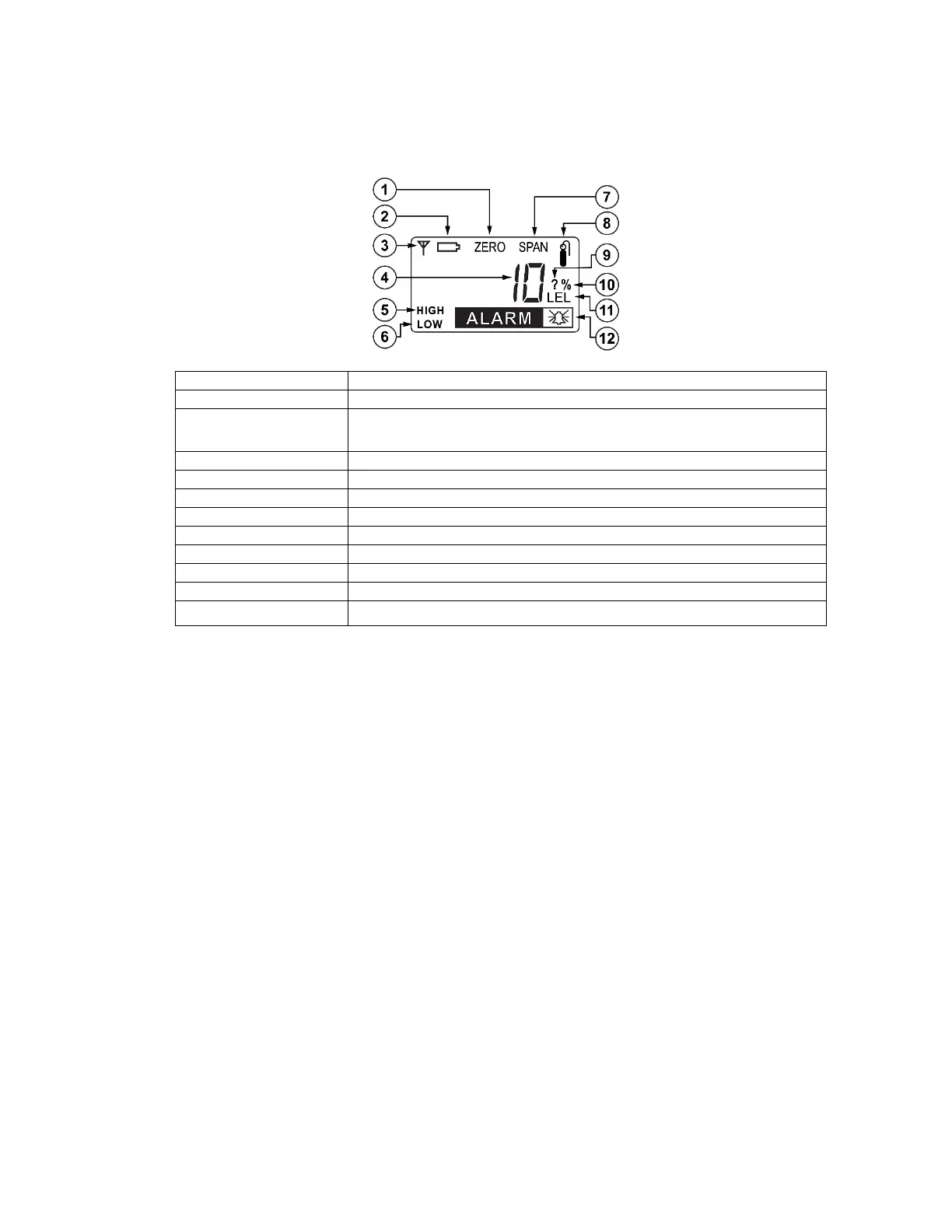

3.1. LCD Display (Monitoring)
1
Zero Calibration
2
Battery Indicator
3
Wireless Communication (if on continuously, the monitor is in STD;
if blinking, the monitor is in RTR)
4
Reading Value
5, 12
High Alarm
6, 12
Low Alarm
7, 8
Span Calibration
9
Save Setting?
10
LEL Unit (%) or CO
2
Unit (%)
11
LEL or CO
2
sensor indicator (LEL shown)
12
Alarm Indicator
Remark:
Concentration unit is shown as percentage of LEL or %Vol for CO
2
