EchoView Host User’s Guide
9
1. Standard Contents
Standard Package includes:
• Monitor
• Maintenance/battery replacement tool
• User’s Guide
• Calibration Certificate
• Calibration Adapter
2. General Information
The EchoView Host Mini-Controller is the cornerstone of RAE Systems’ Closed-Loop Wireless
Solutions for portable gas monitors. This rugged handheld device can establish a self-sufficient
network with up to eight supported RAE Systems portable wireless monitors and display their
readings and alarm status in real time on an easy-to-read screen, supplemented by audible and
visible alerts.
MeshGuard LEL IR single combustible-gas LEL (Lower Explosive Limit) monitor and the
MeshGuard CO2 IR (CO
2
) monitor are integrated with a wireless mesh network-enabled
transmission radio module. Each has the option of relaying the wireless signal to other MeshGuard
LEL IRs or MeshGuard CO2 IRs as needed, to bypass obstacles. The built-in radio board operates
on a frequency of 2.4GHz and complies with IEEE 802.15.4 standard. Both MeshGuard
instruments operate with the FMC-2000 wireless controller on a flexible, robust wireless network to
provide reliable, low-cost operation. It also works in a ProRAE Guardian network with a PC, and it
supports point-to-point and point-to-multi-point networks.

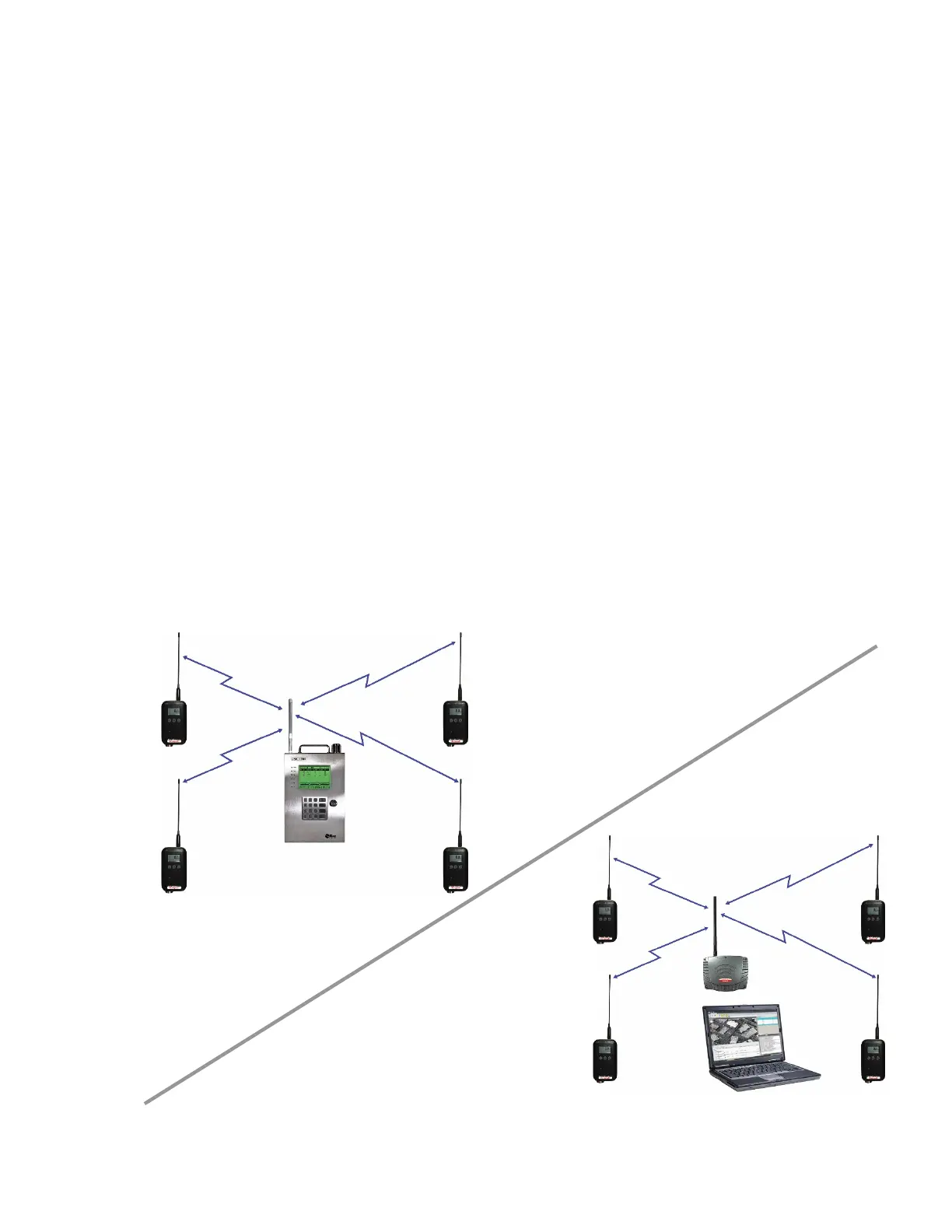

network with
PC controller
with FMC-2000
controller
