Honeywell ML200R User Manual

Chapter 3 - Plan and Install MLPLC

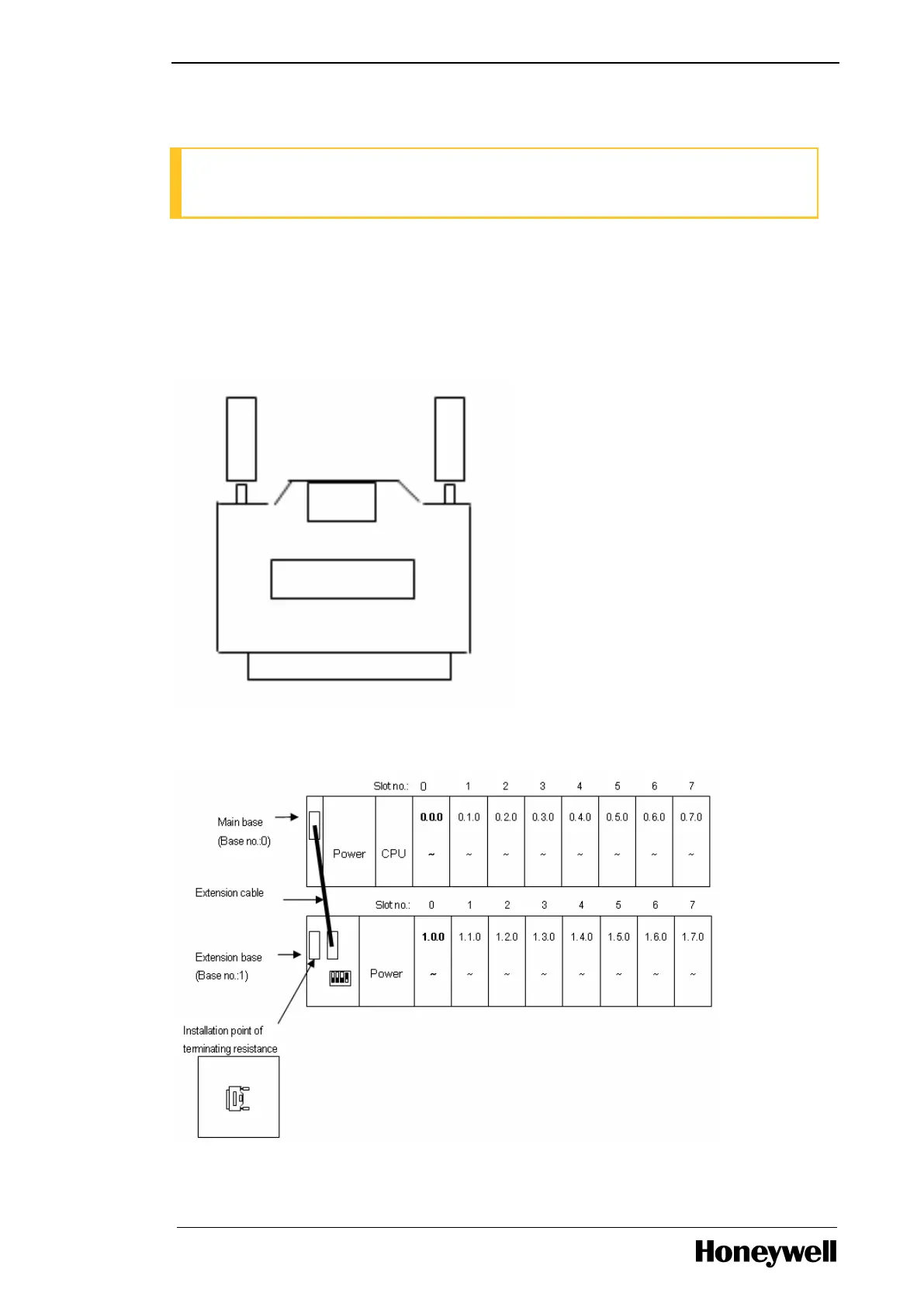

Connecting the Terminating resistance
ATTENTION
This section is not applicable for 2MLI CPUS/P.
If a system requires the main base and the expansion base to be connected, the terminating resistance
must be attached to the expansion connector (OUT) of the last expansion base. The terminal resistance
is not required to be installed, if the system has only the main (without expansion bases).
1. Structure
2. Installation Position
Figure 14: Installation point of terminating resistor
- 35 -
