Honeywell ML200R User Manual

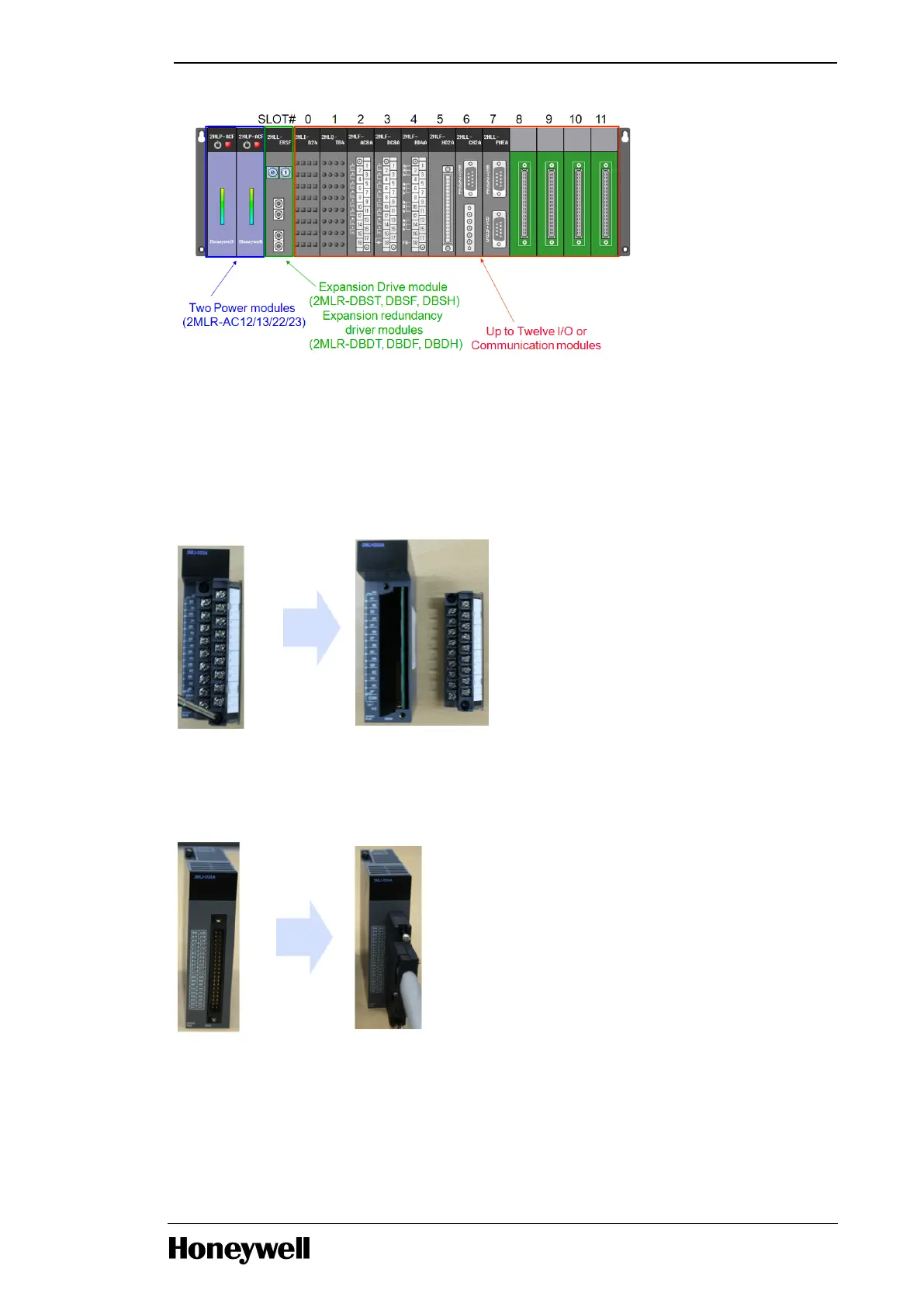

Installation of terminal board for I/O module
Perform the following for I/O modules with less than 32 points.
1. Remove the terminal board by unscrewing the black screws.
2. Connect field wires onto the terminal board.
3. Insert terminal board to the I/O module and tighten the screws.
Perform the following for I/O modules with more than 32 points.
1. Connect field wires onto SmartLink terminal board (external).
2. Connect SmartLink terminal board and I/O module using SmartLink cable.
Removing modules
Perform the following steps to remove modules.
- 32 -
Chapter 3 - Plan and Install MLPLC

Honeywell ML200R Specifications

General

Brand	Honeywell
Model	ML200R
Category	Controller
Language	English
