NFPA Standard-Specific Requirements
MS-5UD/MS-10UD Series PN 52626:B 8/01/2008 147
NFPA 72 Proprietary Protective Signaling Systems

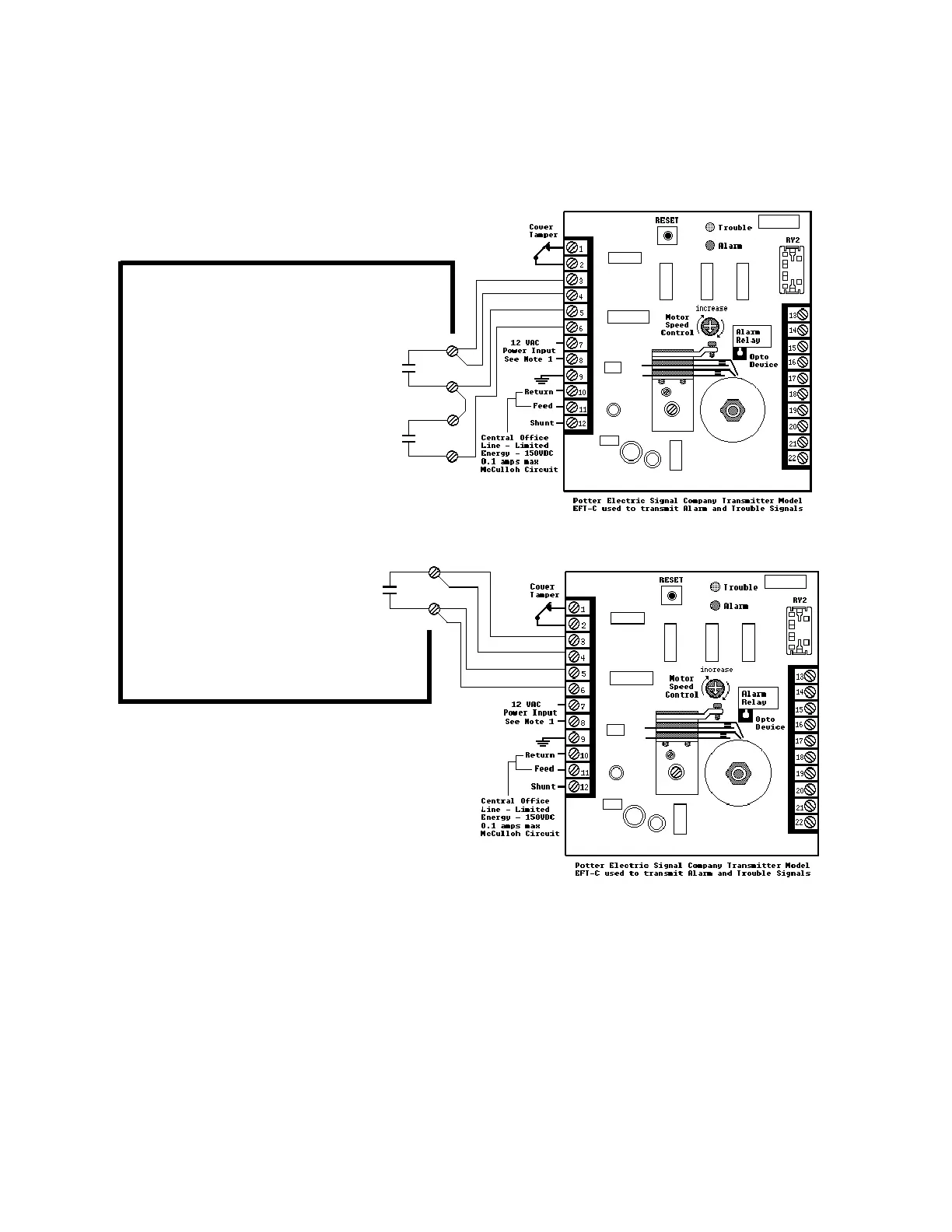

Figure B.4 Proprietary Protective Signaling System
Form-C relay contact programmed to
activate on Supervisory condition.
Form-C Trouble contact which will
automatically activate on any Trouble
condition.
Form-C Alarm contact programmed to
activate on General Alarm.
FACP Main Board
Fire Alarm Control Panel
Notes:
1. Connection between the MS-5UD/MS-10UD
and the transmitter are supervised by the
transmitter.
2. This MS-5UD/MS-10UD Transmitter
arrangement can be employed for NFPA 72
Proprietary Protective Signaling System.
