2.8.7.3 ANN-I/O Connection to FACP
The ANN-I/O connects to the FACP via the ANN-BUS as illustrated in Figure 2.23. After the
ANN-I/O is connected to the panel, it must be added to the system via FACP programming.

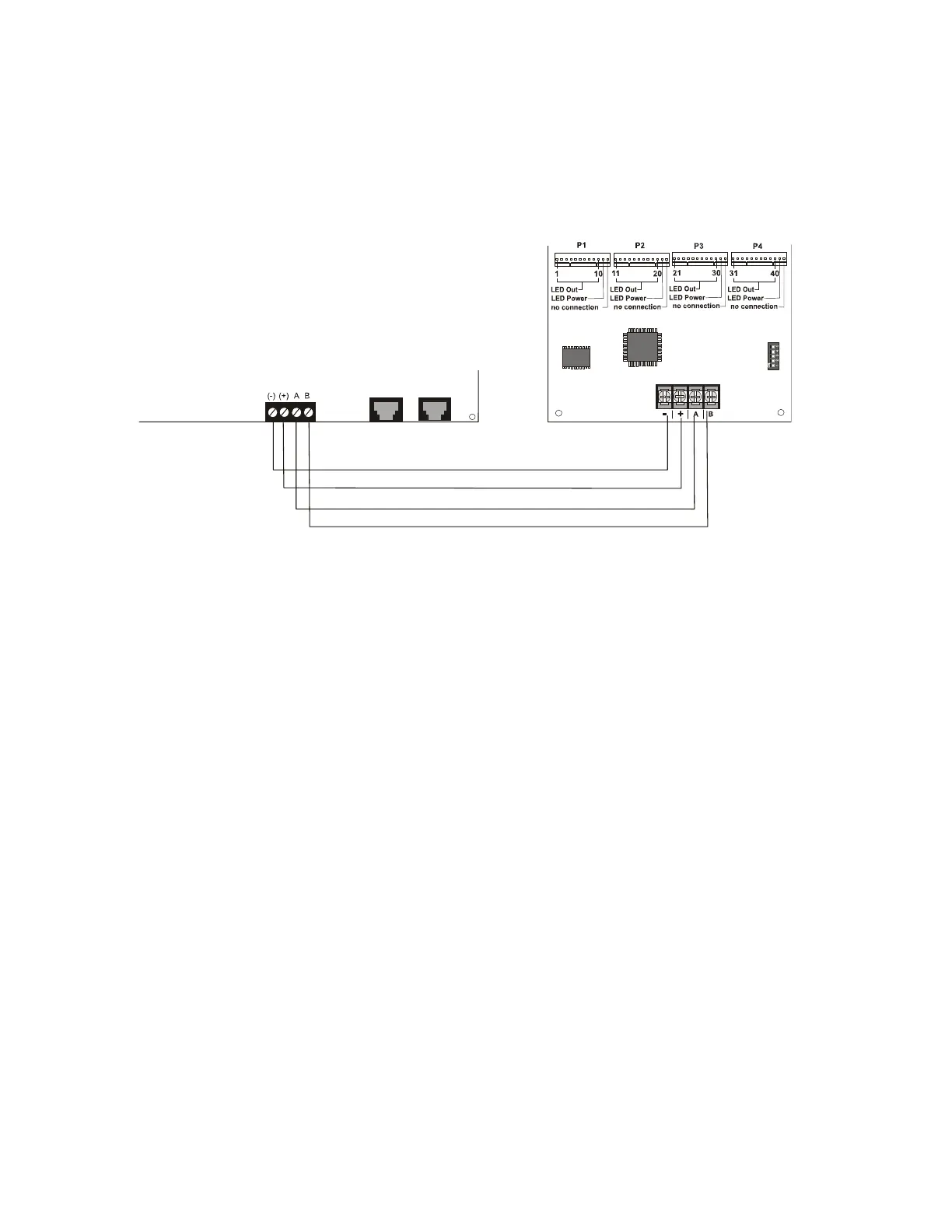

Figure 2.23 ANN-I/O Connection to FACP
ANN-I/O Module
MS-5UD/MS-10UD
ANN-BUS and power wiring are
supervised and power-limited
TB3
