APPENDIX C FACP with Keltron
The following figure illustrates the connections between the FACP and Keltron
Receiver/Transmitter.
CAUTION! For reasons of wiring diagram clarity, terminal designations of Keltron
modules are not shown in actual order. Follow Keltron manual and module markings
for exact terminal locations to prevent severe module damage!
IMPORTANT! All connections between the FACP and Keltron modules must be made
within 20 feet and enclosed within conduit or equivalently protected against mechanical
injury.
Fire Alarm Control Panel
(terminal blocks are not shown in
their actual positions in order to
clarify wiring connections)
Keltron 95M3158 TTM-RPS
1. Terminals 7 and 8: Remote station alarm/trouble inputs.
2. Terminals 9 and 10: Sprinkler supervisory input.
Note: Cut TBL jumper on 4XTMF module to send
alarm/trouble signal from the same pair or terminals.
Alarm/Trouble Signal
Sprinkler Supervisory Signal
*Note: For more information,
refer to Keltron manual.
4XTMF Module

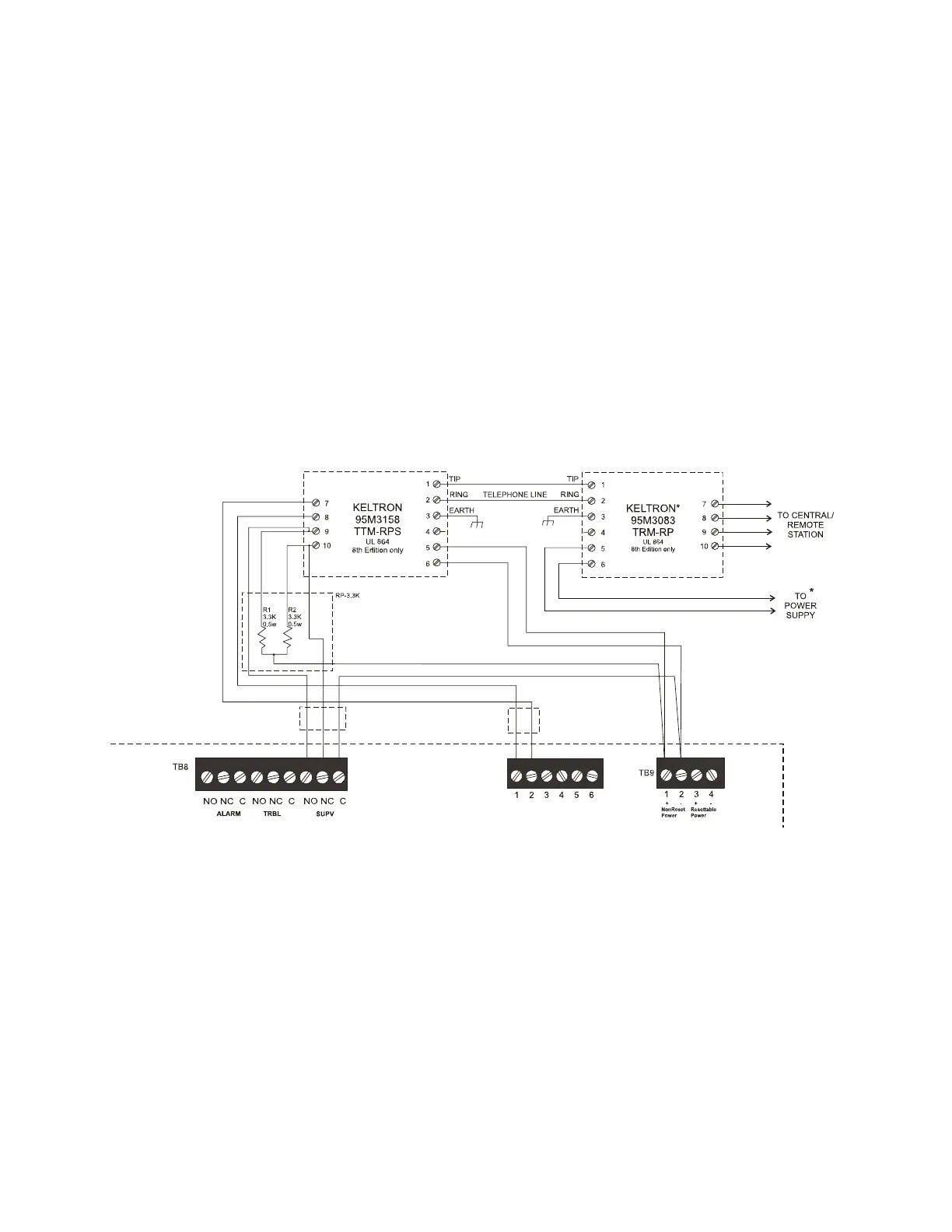

Figure C.1 Keltron Wiring
