Installation
24 MS-5UD/MS-10UD Series PN 52626:B 8/01/2008
9050UDencl.cdr

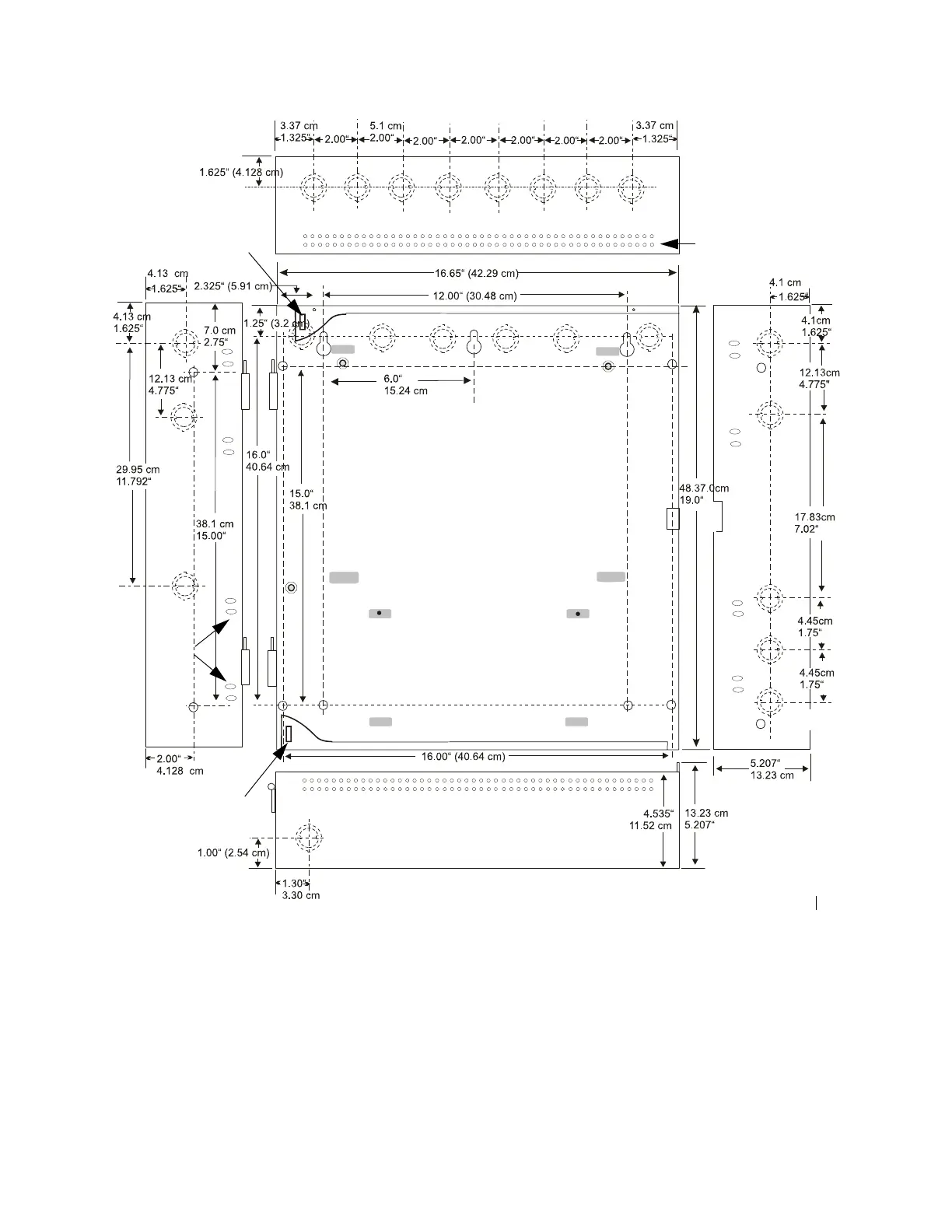

Figure 2.2 Cabinet Dimensions
Hinge Slot for optional
Dress Panel
Semi-
Flush
mounting
hole
Mounting
slots for
optional
Trim Ring
Hinge Slot for
optional Dress Panel
Semi-Flush Mounting
Do not recess box more
than 3.875” into wall to
avoid covering venting
holes on top of box.
