Truck Mount Installation
The Truck Mount must be used in conjunction with the front part of the MultiRAE Desktop
Cradle. Follow the guidelines below to select the correct mounting hardware for the Truck
Mount and install it in your vehicle. Use these dimensions to pre-drill a flat surface to accept
the Truck Mount. The maximum screw diameter must not exceed 6.4mm (0.25"). Vertical
clearance should be at least 26cm (10").
Letter
Important!
Make sure that there is sufficient clearance around and above the mounting plate
so that the MultiRAE can be easily placed in the cradle and removed.

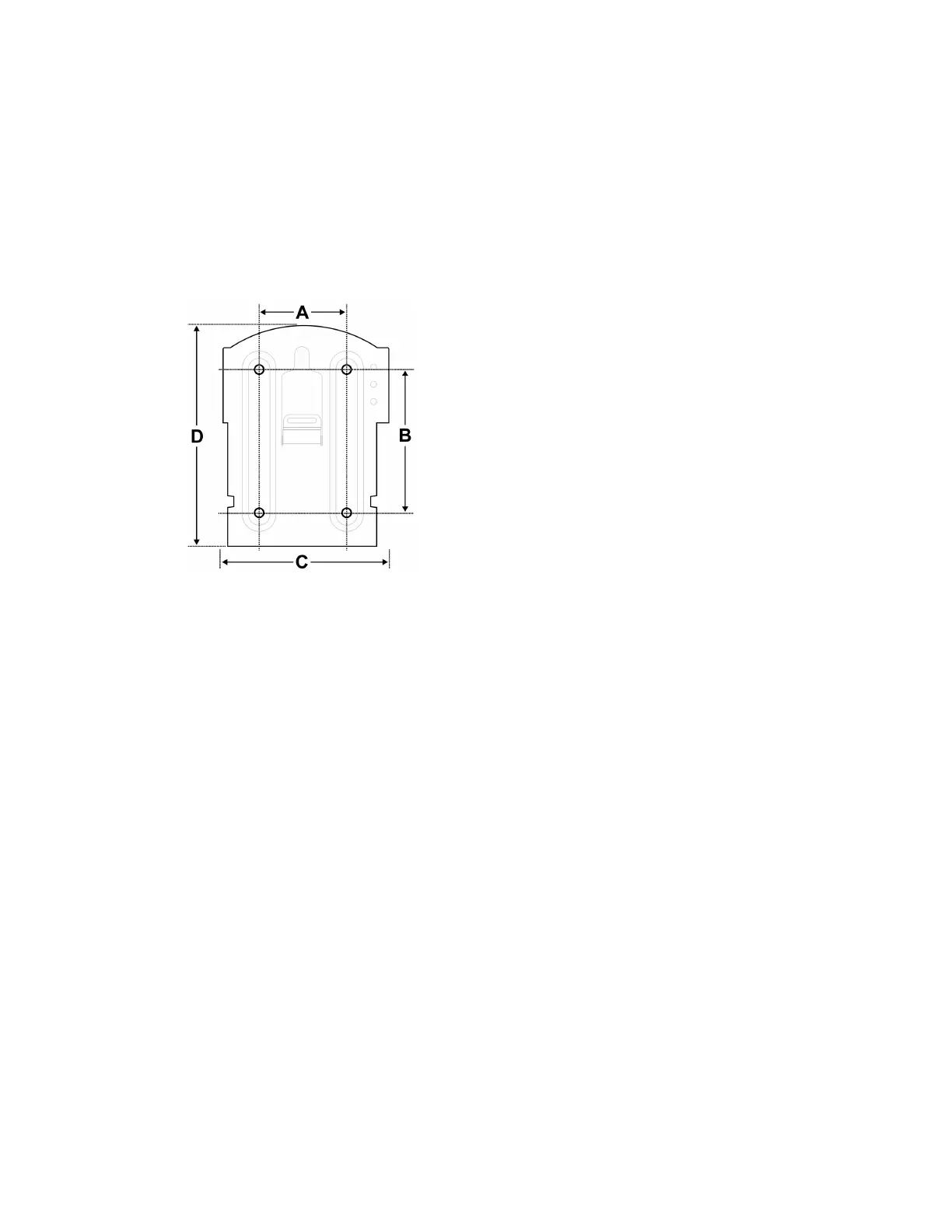

Measurement
A 61.6 mm (2.42")
B 96 mm (3.8")
C 113 mm (4.5")
D 150.8 mm (6")
Using the Truck Mount with The 12-Volt Travel Charger
Slide the cradle into the Truck Mount as shown below. The capture tabs on both sides of the
Truck Mount slip into the cradle and lock it in place. Make sure the cradle sits securely in the
Truck Mount. (To separate the cradle from the Truck Mount, press the rubber release buttons
on both sides of the cradle and pull the cradle free.) Next, insert the straight plug from the 12-
volt charging adapter into the port on the side of the Truck Mount/Cradle. Then plug the other
end into the 12-volt outlet in the vehicle. Note: If the 12-volt charging adapter has an angle
(“L”-shaped) plug, follow the Angle-Plug Configuration. This requires inserting the angle plug
before placing the cradle into the Truck Mount.
Straight-Plug Configuration
Honeywell MultiRAE Series™ 44 User Manual
To Next Page
