12 APS2-6R/E Instruction Manual — P/N 53232:B 2/26/2014
Installation UL Power-limited Wiring Requirements
6. Reinstall the AFP-200 CPU board assembly.
3.2 UL Power-limited Wiring Requirements
Power-limited wiring must remain separated from non-power-limited wiring by at least 0.25 in. (6.4 mm), and must
enter the enclosure through different knockouts. Install tie wraps and adhesive squares to secure the wiring.
3.3 Wiring an APS2-6R
3.3.1 Field Wiring
Output Circuit #3 (J9) can be used as a source of power for the XPIQ Audio Transponder only. See Section B.6 for
wiring connections.
For primary and secondary power connections, see the appropriate appendix for specific system information.
mounting holes
AFP-200 Cabinet
battery
connection
Screws
(2 places)

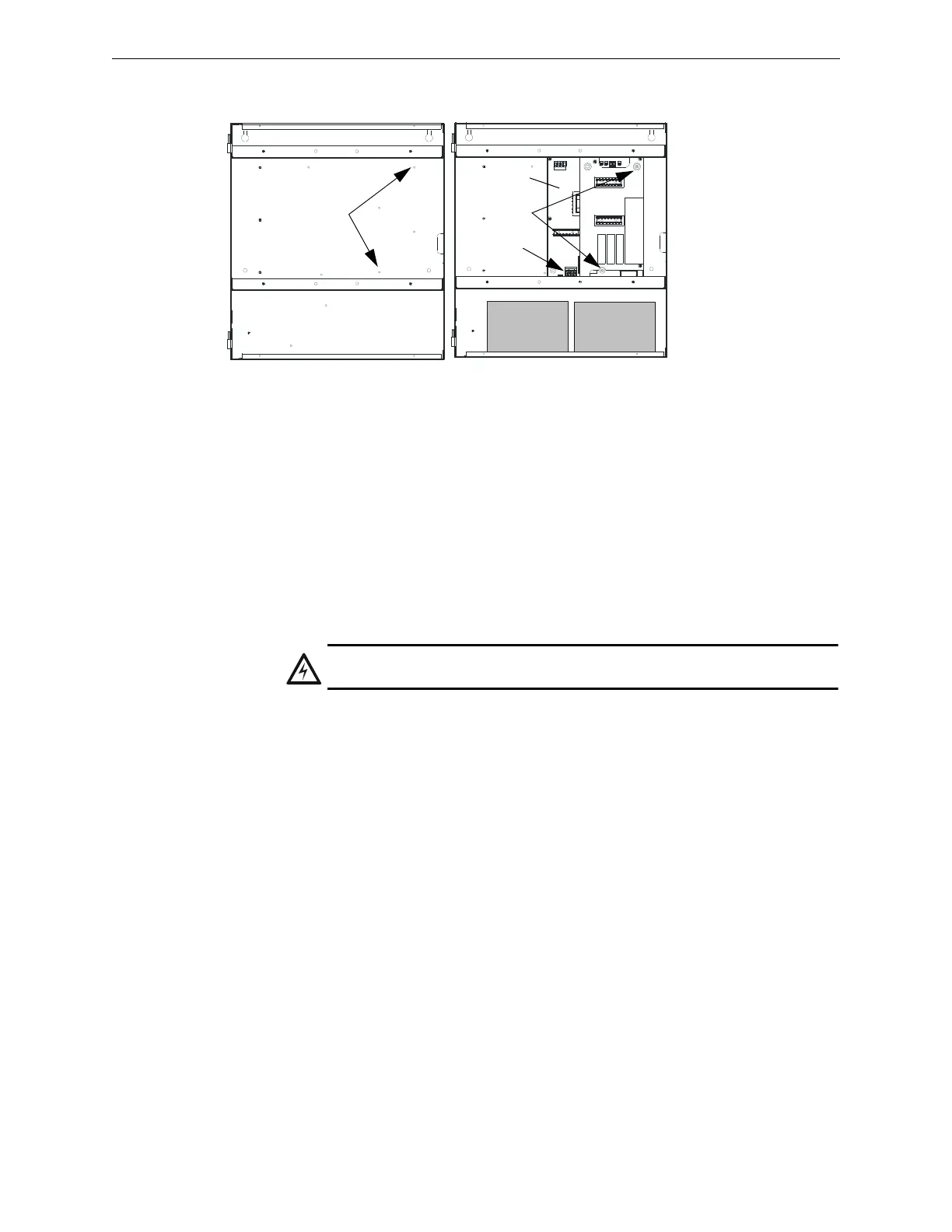

Figure 3.2 Mounting an APS2-6R into an AFP-200 Cabinet
APS2-6R
afp2cabempty.wmf
aps26r_afp200.wmf
!
WARNING: HIGH VOLTAGE
When finished wiring AC connections, secure terminal block cover on TB1.
