22 APS2-6R/E Instruction Manual — P/N 53232:B 2/26/2014
UL 864 8th Edition Configurations AM2020/AFP-1010 and System 5000
7. Attach battery interconnect cable.
B.3 AM2020/AFP-1010 and System 5000
The APS2-6R must be mounted to the CHS-4/L chassis in the CAB-3/4 Series backbox. See “In a CAB-3/4 Series
Backbox” on page 11.
B.3.1 Connecting the APS2-6R to an MPS-24A
1. Connect trouble output from J3 on the APS2-6R to P5 on the MPS-24A.
2. Place shunt across both pins of JP4 on the APS2-6R.
3. Connect primary power from TB1 on the APS2-6R to MPS-24A terminal block TB1, Pin 5(
NEUT) and Pin
7(
HOT).
4. Connect AC power to TB1 on the MPS-24A. Make sure to properly ground the unit to the backbox.
5. Connect batteries to TB2 on the MPS-24A.
6. Connect secondary power from TB3 on the APS2-6R to MPS-24A terminal block TB2, Pin 1(+) and Pin 2(–).
J4
Note: Maintain 0.25” spacing between Power-
limited and Non-power-limited wiring. Install tie
wraps and adhesive squares to secure the wiring.
APS2-6R
to battery +
back-up -

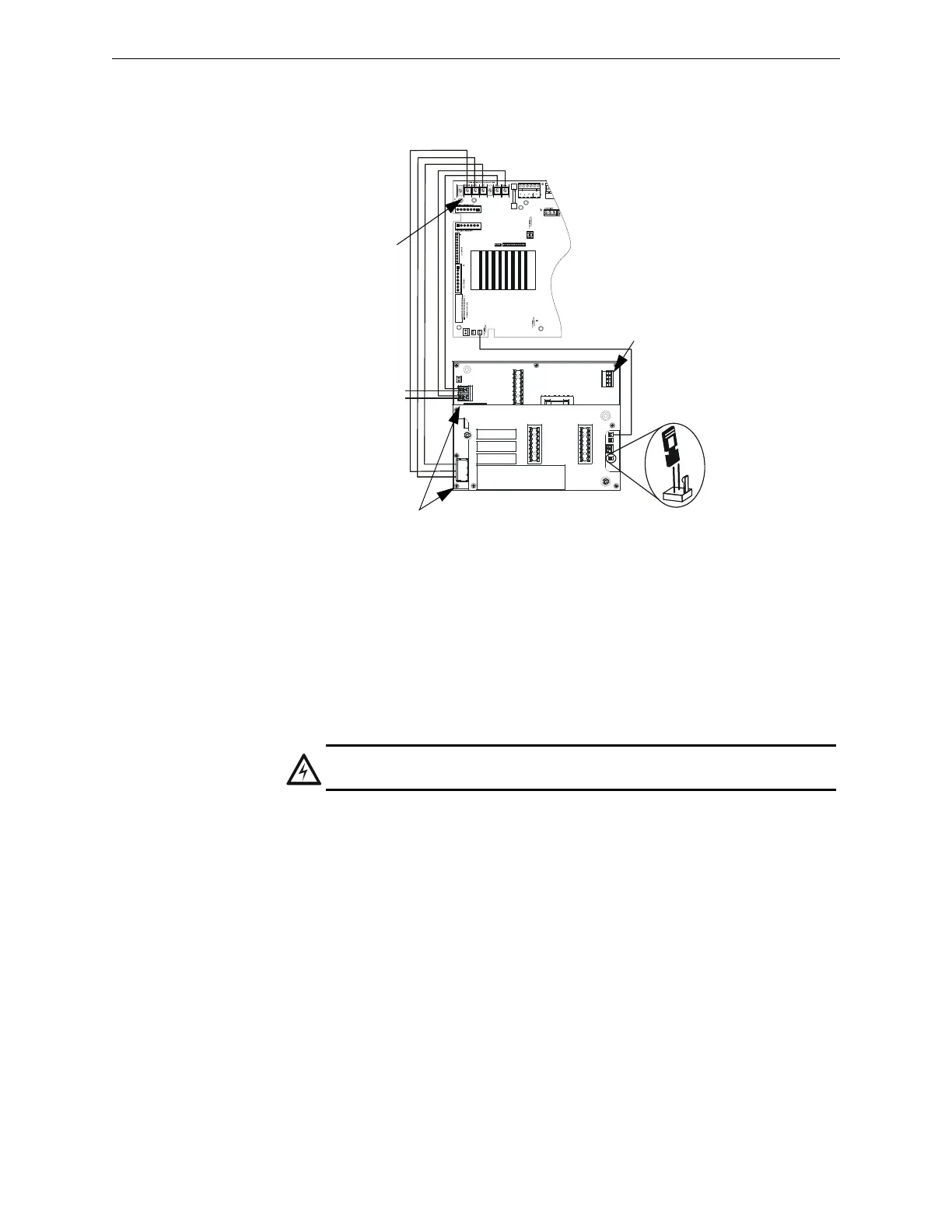

Figure B.2 Wiring to MPS-400
MPS-400
Non-power-limited
Non-power-limited
Power-limited
aps26rtomps400.wmf
!
WARNING:
Be sure to finish installation before applying power. Test AC power before continuing.
