NFS-3030 UL 864 8th Edition Configurations
7. Attach battery interconnect cable.
B.5 NFS-3030
The APS2-6R must be mounted to the CHS-4/L chassis in the CAB-3/4 Series backbox. See “In a CAB-3/4 Series
Backbox” on page 11.
B.5.1 Connecting to the AMPS-24 and CPU-3030
1. Connect trouble output from J3 on the APS2-6R to J5 on the CPU-3030.
2. Place shunt across both pins of JP4 on the APS2-6R.
3. Connect primary power from TB1 on the APS2-6R to TB3 on the AMPS-24.
4. Connect AC power to TB3 on the AMPS-24. Make sure to properly ground the unit to the backbox.
5. Connect batteries to TB4 (BAT IN +) and TB5 (BAT IN-) respectively on the AMPS-24.
6. Connect secondary power from TB3 on the APS2-6R to TB4 (BAT OUT +) and TB5 (BAT OUT-) respectively
on the AMPS-24.
Note: Maintain 0.25” spacing between Power-limited and
Non-power-limited wiring. Install tie wraps and adhesive
squares to secure the wiring.
APS2-6R
to battery +
back-up -
Non-power-limited
Power-limited
aps26rtocpu640.wmf

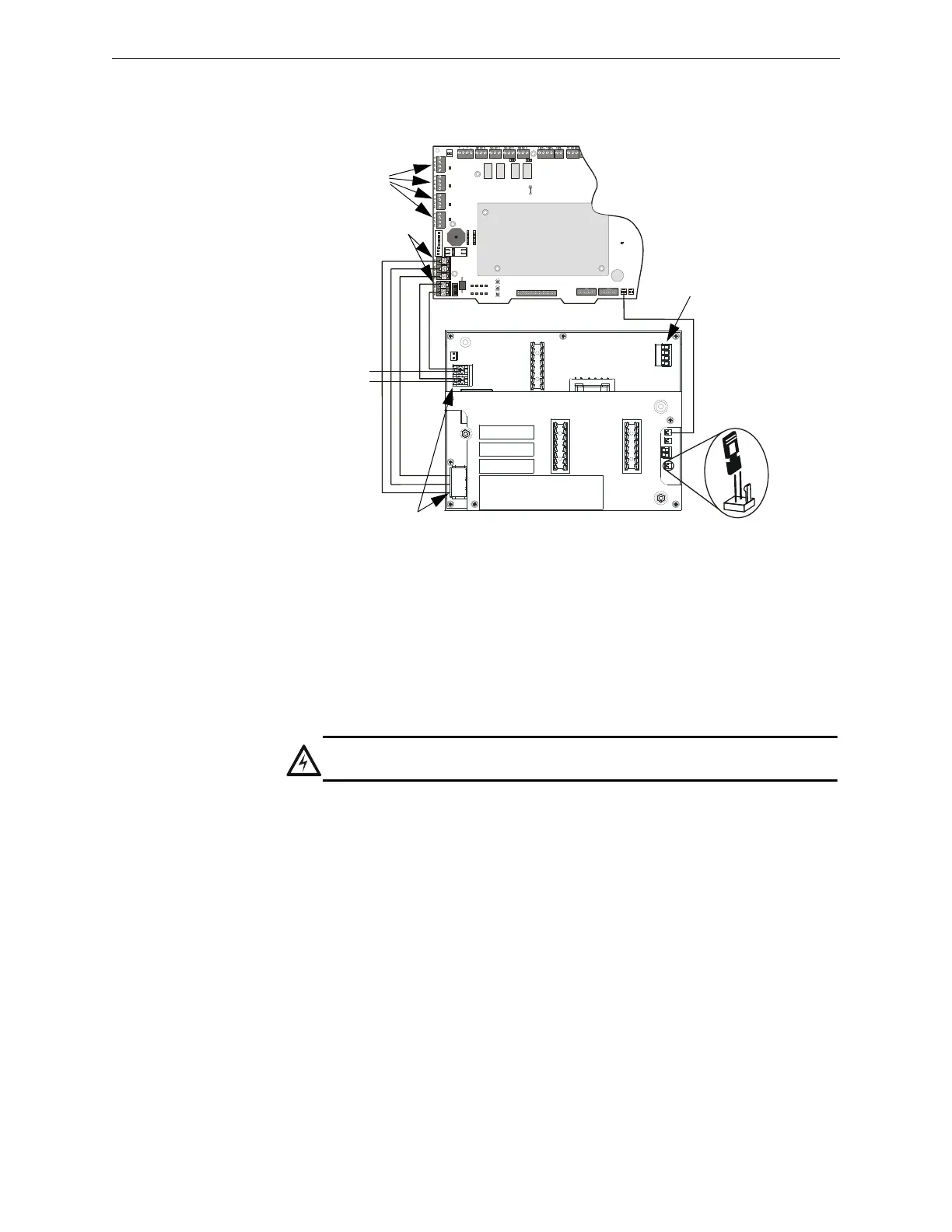

Figure B.5 Wiring to CPU-640
Non-power-limited
CPU-640
Power-limited
!
WARNING:
Be sure to finish installation before applying power. Test AC power before continuing.
