Honeywell NOTIFIER APS2-6R/E User Manual

18 APS2-6R/E Instruction Manual — P/N 53232:B 2/26/2014
UL 864 9th Edition Configurations NFS2-3030
SLC RX
LOGIC
POWER
TROUBLE
EARTH
FAULT
AC
GENTBL
STATUS
RESET
COMCOM + 5V AUX
EN
DIS
+24V AUX
+24VAUX
+5VAUX
SLC TX
485 RX
TBL BUS MAIN 24 TBL
MAIN 24
AUX24 TBL
AUX24
485 TX
USB
5
0
aps2_cpu23030b.wmf
APS2-6R
NFS2-3030

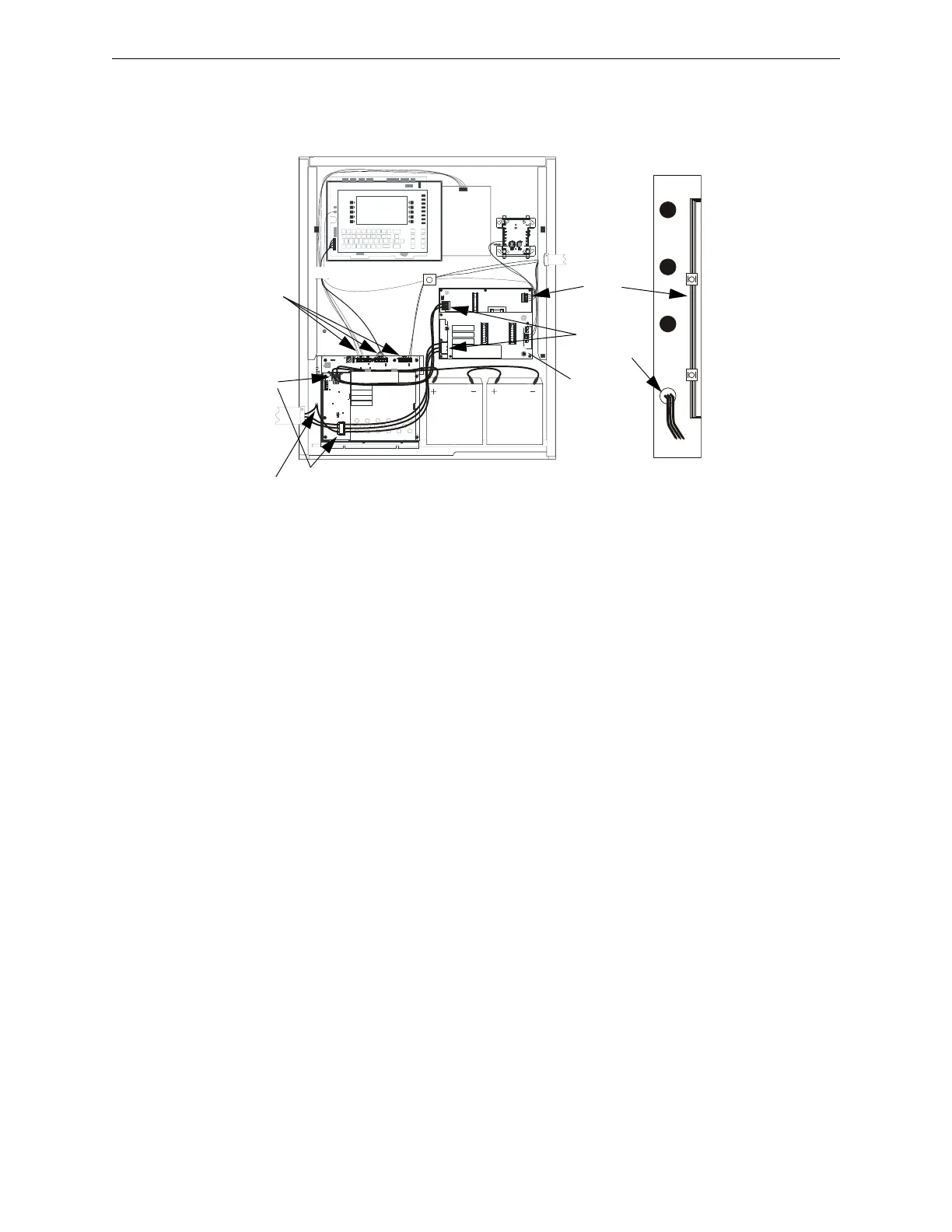

Figure A.1 Wiring to AMPS-24 and NFS2-3030
FMM-1*
*If the SLC device does not match the one in this figure,
refer to the SLC manual appendix, which contains wiring
conversion charts for type V and type H modules.
LCM
or
LEM
Non-Power-
Limited
Circuits
Power-
Limited
Circuits
Non-Power-
Limited
Circuits
Power-
Limited
Circuits
AMPS-24
side view
AC
Note: Maintain 0.25” spacing between
Power-limited and Non-power-limited
wiring. Install tie wraps and adhesive
squares to secure the wiring.
cab3wiringside.wmf
grounding
stud
