ID50 Series Panel - Installation, Commissioning & Configuration Manual
Configuration Mode
56
997-263-000-11, Issue 11
January 2010

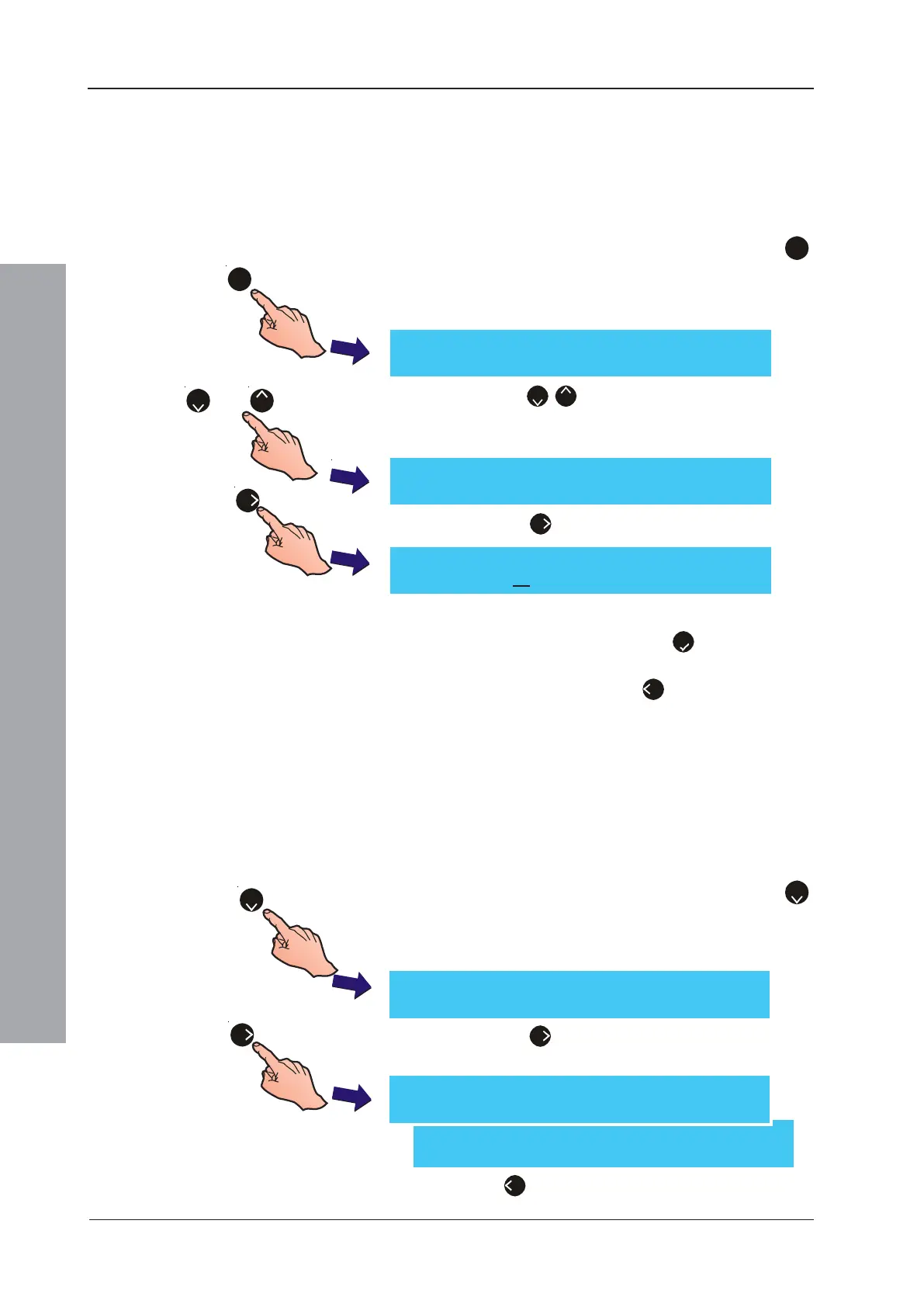

5.5.4.5 Suspend Comms Limit
This function is only selectable if Third Party was selected
at the RS485 Protocol screen. A time for suspending the
RS485 Third Party Datalink of up to 300 minutes can be
set. Alternatively, a value of ‘0’ can be entered when an
indefinite period is required.
1 From the Peripheral Options screen, press the ‘
1
’
button on the numeric keypad to select the RS485
Communications port option. The RS485 Protocol
setup screen is displayed:
2 Press the ‘
2
/
8
’ buttons to scroll through the Setup
menu until the Suspend Comms Limit screen is
displayed.
3 Press the ‘
6
’ button if the limit is to be changed.
4 Using the numeric keypad, enter the new value (in
minutes) and confirm using the ‘
5
’ button. The LCD
automatically returns to the Suspend Comms Limit
screen. Alternatively, press ‘
4
’ to cancel the change.
5.5.4.6 RS232 Protocol
This option enables the protocol of the RS232 port to be
configured for use with either driver:
a. External printer (default selection).
b. Third party equipment
c. GSM Modem.
1 From the Peripheral Options screen, press the ‘
2
’
button on the numeric keypad to select the RS232
Communications port option. The RS232 Protocol
setup screen is displayed:
2 Press the ‘
6
’ button to toggle between ‘PRINTER’,
‘THIRD PARTY’ or ‘GSM MODEM’.
3 Press ‘
4
’ to return to the Peripheral Options menu
screen.
[Setup] RS485 Protocol = THIRD PARTY
> : Change ¦ : More < : Exit
[Setup] Suspend Comms Limit = 0 mins
> : Change ¦ : More < : Exit
or
82
[Setup] Suspend Comms Limit = 0 mins
Enter new value 60 : Confirm < : Cancel
6
1
[Setup] RS232 Protocol = PRINTER
> : Change ¦ : More < : Exit
[Setup] RS232 Protocol = GSM MODEM
> : Change ¦ : More < : Exit
[Setup] RS232 Protocol = THIRD PARTY
> : Change ¦ : More < : Exit
6
2
