Honeywell NOTIFIER LDM Series User Manual

LDM Series Instruction Manual — P/N 15885:H3 8/12/2019 39
AIM-200 Point Annunciation System 5000 (UL 8th)

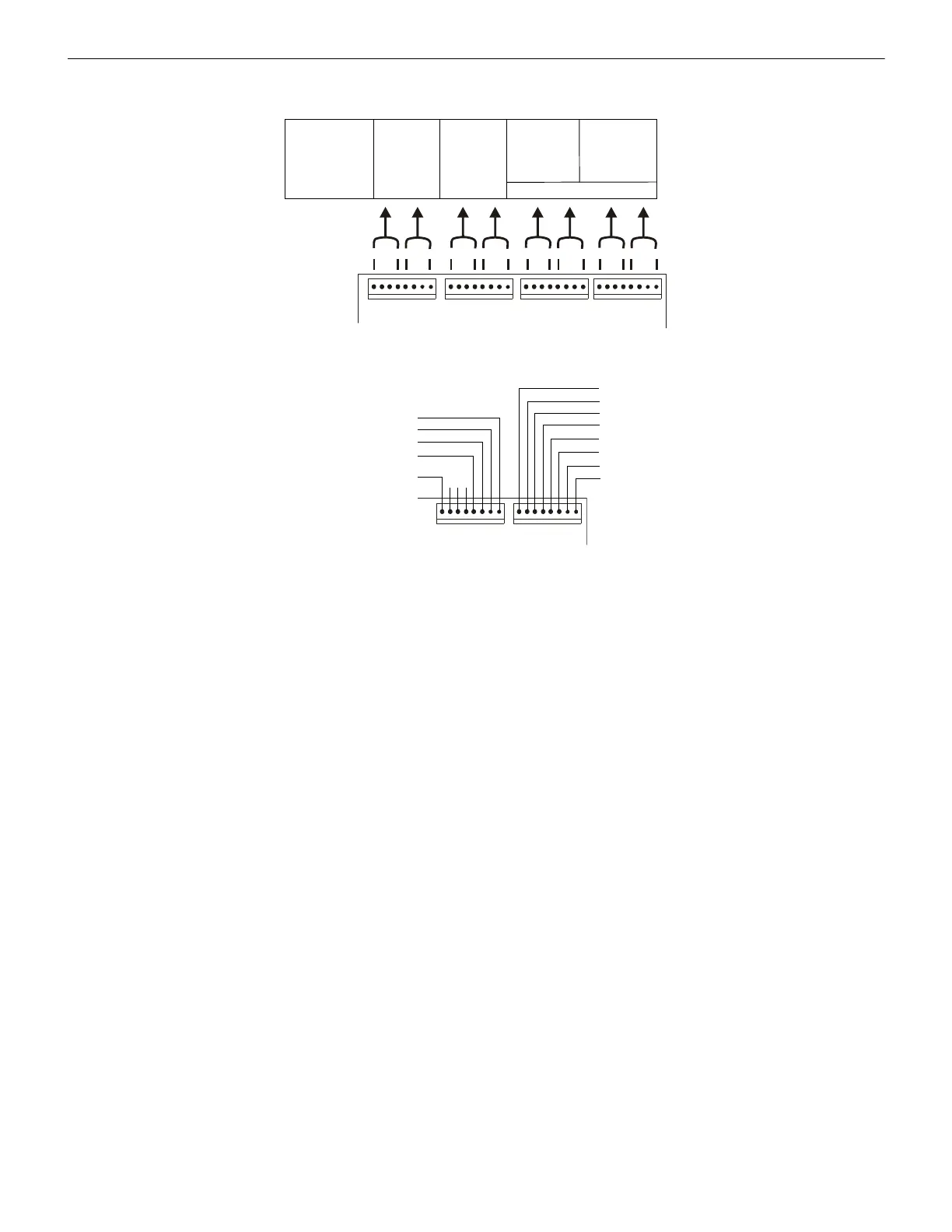

Figure B.7 illustrates the configuration of LDMs to annunciate alarms and troubles for up to 56 zones with the last eight points (16
LEDs) dedicated to the CPU functions listed below.
J6
J5 OUTPUTS J7
J8
Alarm
Alarm Alarm Alarm
Trouble
Tro ubl e Tro ubl e Tr oubl e
J8
J7
OUTPUTS
Address #1
LDM-32
1st LDM-E32
2nd LDM-E32
3rd LDM-E32
1 - 4
17 - 20
33 - 36
49 - 52
9 - 12
25 - 28
41 - 44
13 - 16
29 - 32
45 - 48
5 - 8
21 - 24
37 - 40
53 - 56
System Status Indicators *
view of LDM-32
* System Status Indicators
NAC Ckt #1 ON (Green LED)
NAC Ckt #2 ON (Green LED)
Municipal Tie ON (Red LED)
Alarm Relay ON (Red LED)
NAC Ckt #1 Trbl (Yellow LED)
NAC Ckt #2 Trbl (Yellow LED)
Municipal Tie Trbl (Yellow LED
Alarm Relay Trbl (Yellow LED)
Supervisory (Yellow LED)
not used
Signals Silenced (Yellow LED)
System Trouble (Yellow LED)
System Alarm (Red LED)
not
*It is assumed that the '8-Point Shift' will be selected only on systems
containing less than 56 zones/points.
Figure B.7 Alarm/Trouble Operation with 8-Point Shift
